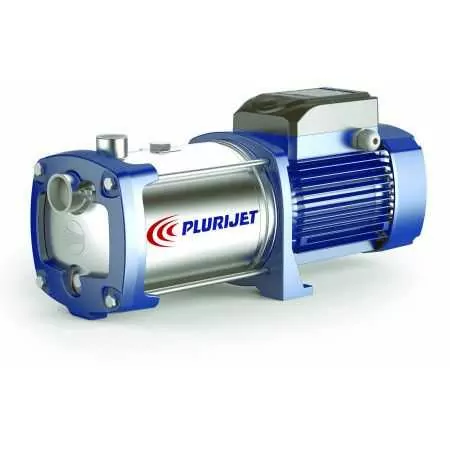

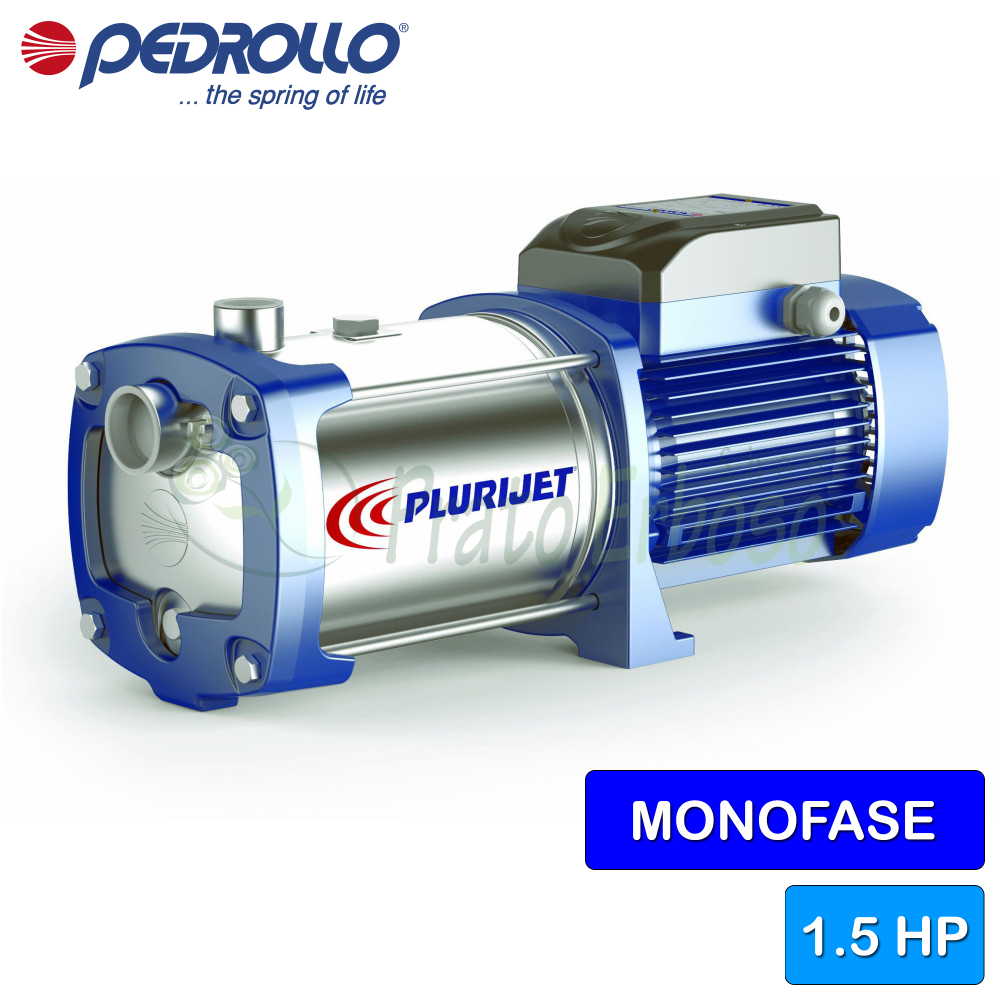

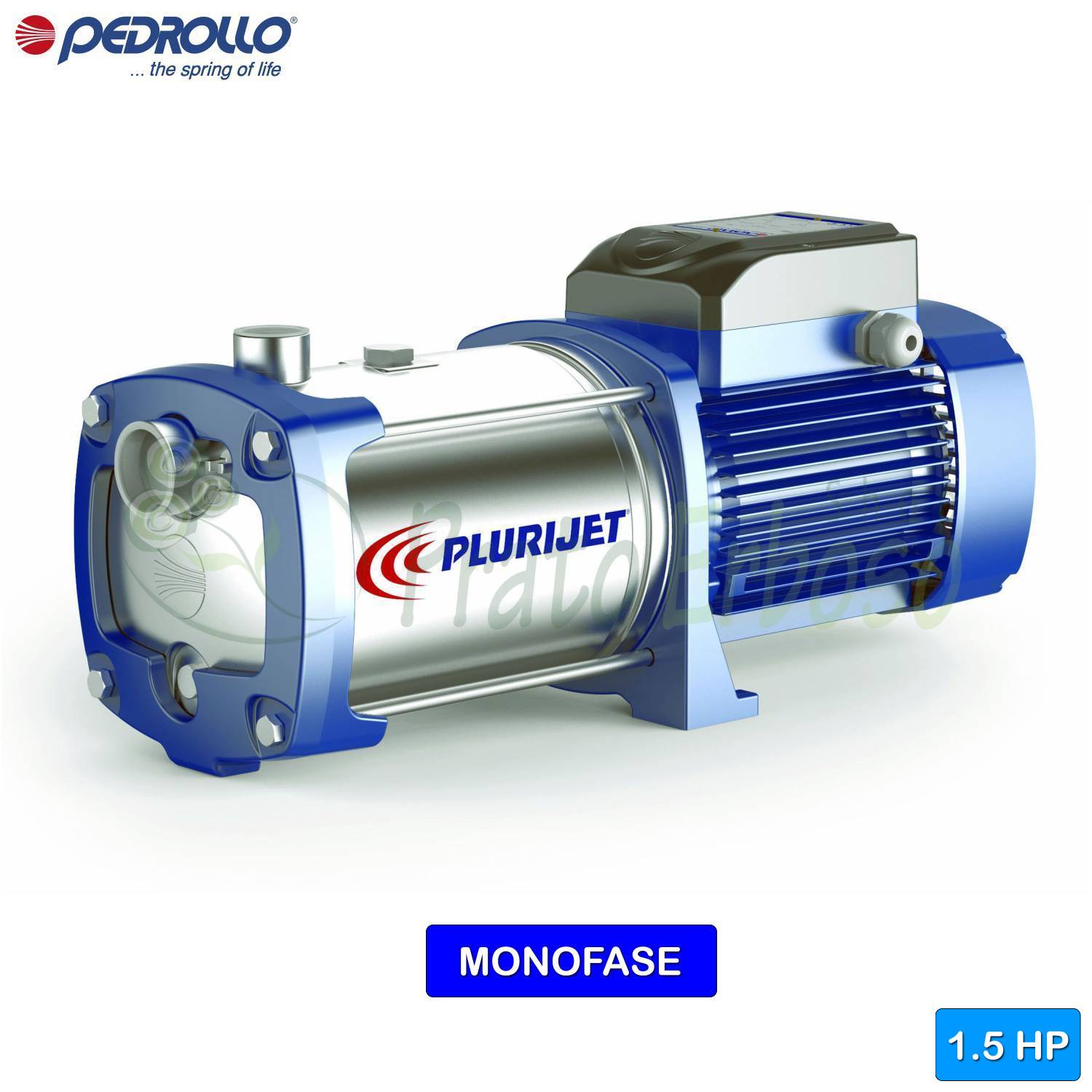

PLURIJETm 3/130 - 1.5 HP single-phase self-priming multi-impeller electric pump
Flow rate up to 130 l/min (7.8 m³/h). Head up to 49 m. 1.1 kW (1.5 HP) motor.
The PLURIJETm 3/130 self-priming electric pump from the PLURIJET series by Pedrollo is recommended for sucking clean water even in the presence of air mixed with the pumped liquid.
Versatile thanks to its excellent suction capacity which can guarantee priming up to 9 metres deep.
Perfect for reliability, silence, and low consumption, it's the perfect choice for home applications.
The PLURIJETm 3/130 is suitable for water pressurization and distribution activities in conjunction with pressure tanks, for rainwater recovery and for irrigation systems.
Pedrollo 's use of stainless steel in construction guarantees maximum hygiene as all components in contact with water are made of stainless steel.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8.5
- Capacitor
- 31.5 µF 450 VL
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 24
- Max. head (m.)
- 49
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 22.8
- Width (cm)
- 18.5
- Depth (cm)
- 49.7
- Weight (Kg)
- 17.6
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side engine bearing | 6204 ZZ-C3E |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | PTFE |
| 6.0 - Motor carrier | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
