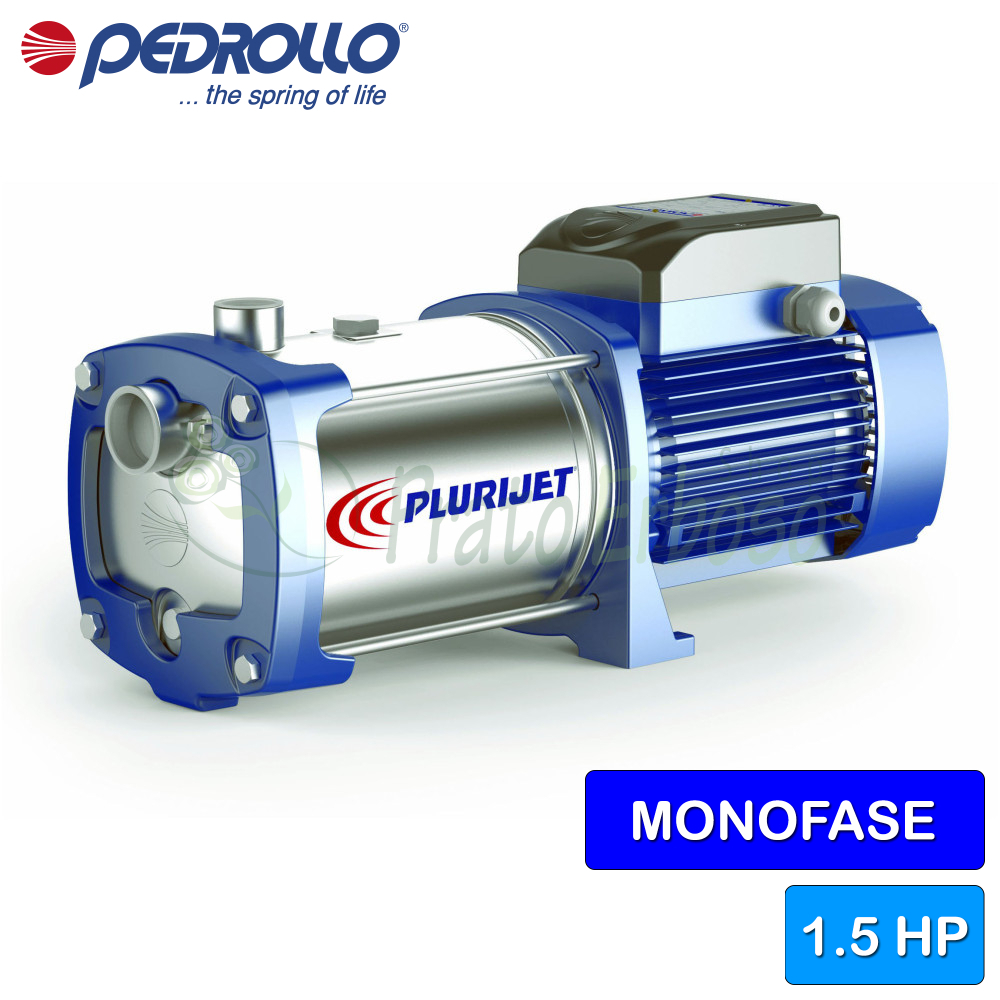

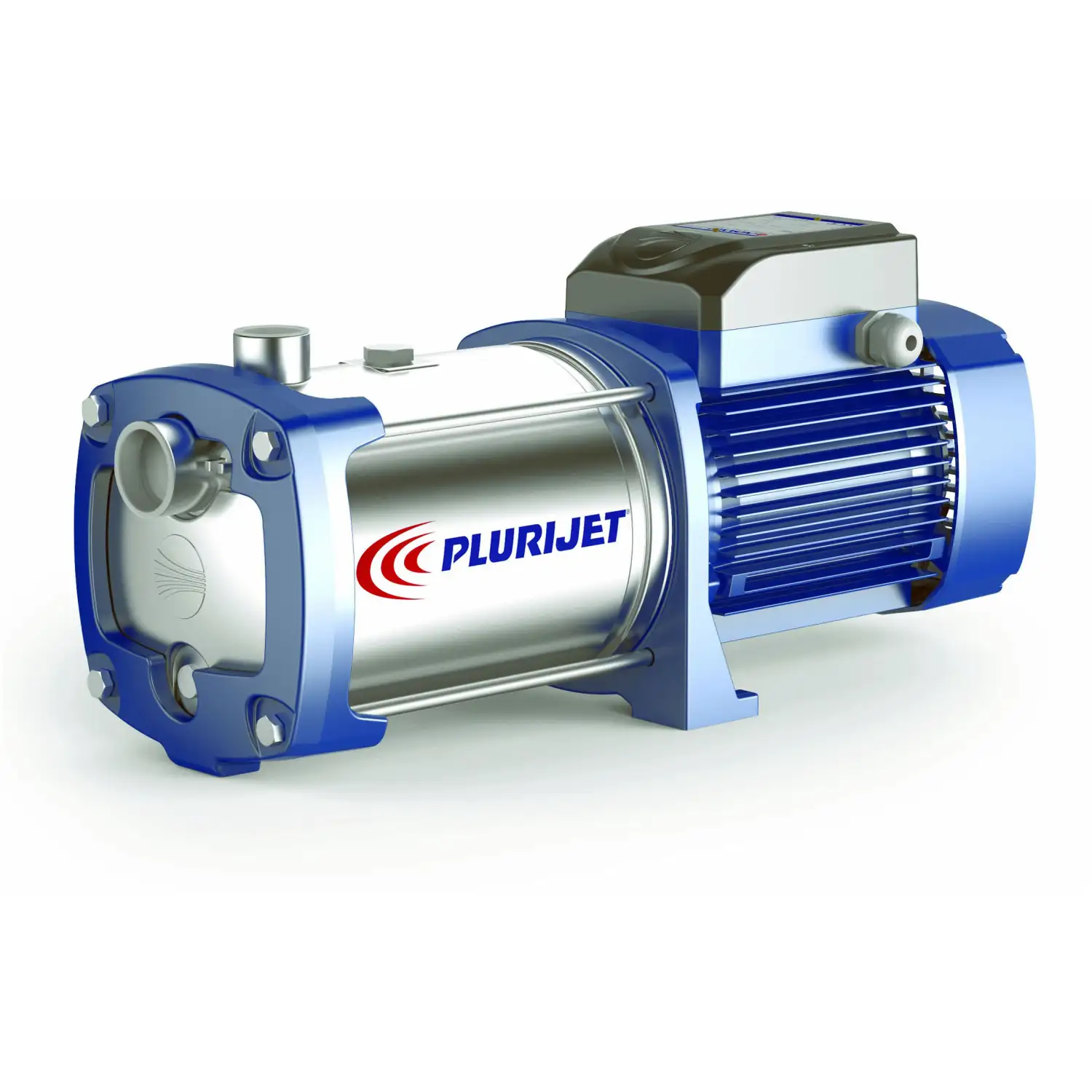

PLURIJETm 5/90 - 1.5 HP single-phase self-priming multi-impeller electric pump
Flow rate up to 90 l/min (5.4 m³/h). Head up to 80 m. 1.1 Kw (1.5 HP) motor.
The PLURIJETm 5/90 self-priming electric pump from the PLURIJET series by Pedrollo is recommended for use in the domestic and civil sectors.
Stainless steel impellers are the best solution for domestic needs. They guarantee reliability, quiet operation, and low operating costs.
In particular, the PLURIJETm 5/90 is suitable for water pressurization and distribution activities in conjunction with pressure tanks, for rainwater recovery and for irrigation systems.
It allows you to suck clean water even in the presence of air mixed with the pumped liquid and liquids that are chemically non-aggressive for the pump components.
Made of stainless steel, the pump is solid and durable. It guarantees maximum hygiene as all components in contact with the liquid are made of stainless steel.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8.5
- Capacitor
- 31.5 µF 450 VL
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 5
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 38
- Max. head (m.)
- 80
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 22.8
- Width (cm)
- 18.5
- Depth (cm)
- 54.9
- Weight (Kg)
- 19.4
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side engine bearing | 6204 ZZ-C3E |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | PTFE |
| 6.0 - Motor carrier | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
