PLURIJETm 6/90 - Pump multigirante self-priming single-phase Pedrollo - 1
zoom_out_map
chevron_left chevron_right
-42%

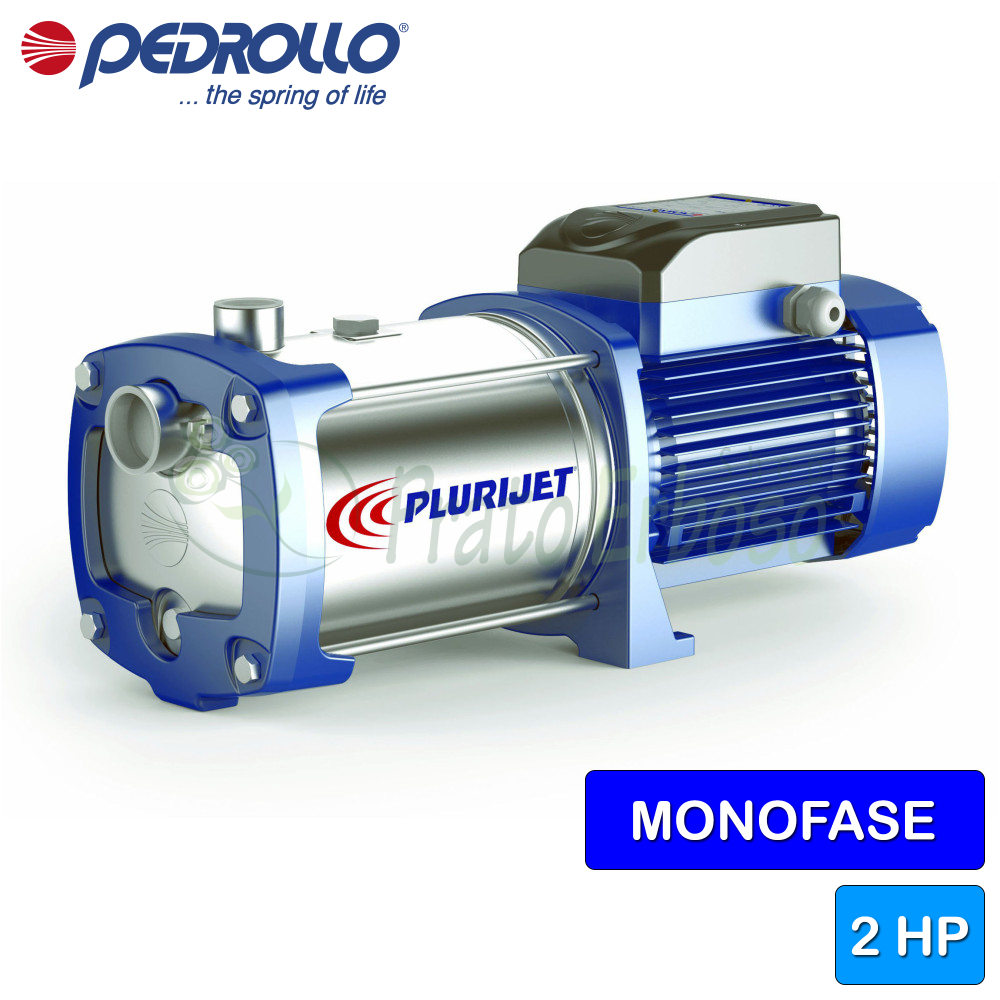

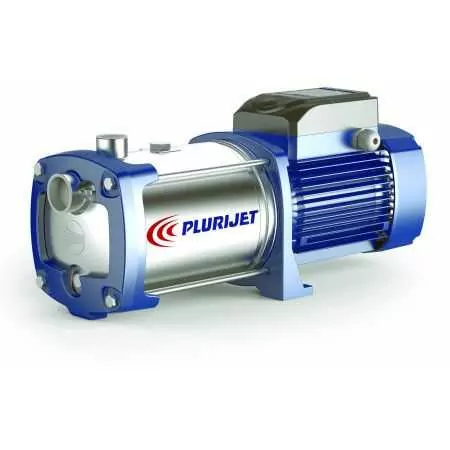

PLURIJETm 6/90 - 2 HP single-phase self-priming multi-impeller electric pump

Flow rate up to 90 l/min (5.4 m³/h). Head up to 96 m. 1.5 Kw (2 HP) motor.

€573.16 Tax included

€469.80 Tax excluded

€988.20-42%

Variants:
PLURIJETm 5/90 - Elettropompa multigirante autoadescante monofase da 1.5 HP
PLURIJETm 6/90 - Elettropompa multigirante autoadescante monofase da 2 HP

Order it before 46 minutes and receive it between 30-12-2024 and 31-12-2024 with SDA - 2 giorni Italia

There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

PLURIJETm 6/90 - 2 HP single-phase self-priming multi-impeller electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The PLURIJET self-priming pumps are designed to suck water even in the presence of air mixed with the pumped liquid.

Due to their silence, reliability and low energy consumption, they are recommended for domestic and civil use, in particular for the pressurization and distribution of water in combination with pressure tanks, for the recovery of rainwater, for irrigation systems, etc.

They are recommended for sucking clean water even in the presence of air mixed with the pumped liquid and liquids that are chemically non-aggressive for the materials constituting the pump.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet
Pedrollo
PLURIJETm 6/90
10 Items
Motor connection
SINGLE PHASE
Power (Kw)
1.1
Power (HP)
2
Absorption at 230V (A)
10.5
Capacitor
45 µF450 VL
Suction mouth
1 "1/4
Delivery port
1 "
Body Pump
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
6
Motor shaft
Stainless steel EN 10088-3 1.4104
Check valve
no
Degree of protection
IP 44
Flow rate min. (l./min.)
5
Max flow (l./min.)
80
Min head (m.)
43
Max head (m.)
93
Employments
water supply, pressurization systems, irrigation
Liquid temperature max. (° C)
40
Height (cm)
22.8
Width (cm)
57.5
Depth (cm)
18.5
Weight kg)
22.7
Guarantee
2
Attachments

PLURIJET 90-130-200 data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PLURIJET 90-130-200 series pumps.

file_download Download (390.87KB)

Buy it with

  • PLURIJETm 6/90 - 2 HP single-phase self-priming multi-impeller electric pump
  • +
  • 60 CL - cylindrical Tank, 60 litres
  • +
  • MRG 10 - Manometer
  • €723.22-10 %
    Total price: €650.90
Models and performances PLURIJETm 90-130-200
GUY
single phase
PLURIJETm 5/90
PLURIJETm 6/90
PLURIJETm 3/130
PLURIJETm 4/130
PLURIJETm 5/130
PLURIJETm 3/200
PLURIJETm 4/200
PLURIJETm 5/200
POWER
KWHP
1.11.5
1.52
1.11.5
1.52
1.82.5
1.11.5
1.52
1.82.5
Construction data of the PLURIJET 90-130-200
Plurijet 90 cutaway
Bearings
Pump side motor bearing6304 2RS-C3
Opposite side engine bearing6204 ZZ-C3E
Tree holding
Type of sealSingle Mechanical Seal
Shrinkage DN1=450 DN2=350FN-18
LP diameter18
LP fixed ringGraphite
LP rotating ringCeramic
LP elastomerNBR
Materials
1.0 - Pump bodyStainless steel EN 1.4301 (AISI 304)
2.1 - Seal holder coverStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerStainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaftStainless steel EN 1.4057 (AISI 431)
5.1 - DiffuserStainless steel EN 1.4301 (AISI 304)
5.2 - Wear ringPTFE
6.0 - Motor carrierEN-AB 46100 aluminium
7.0 - LanternEN-AB 46100 aluminium
