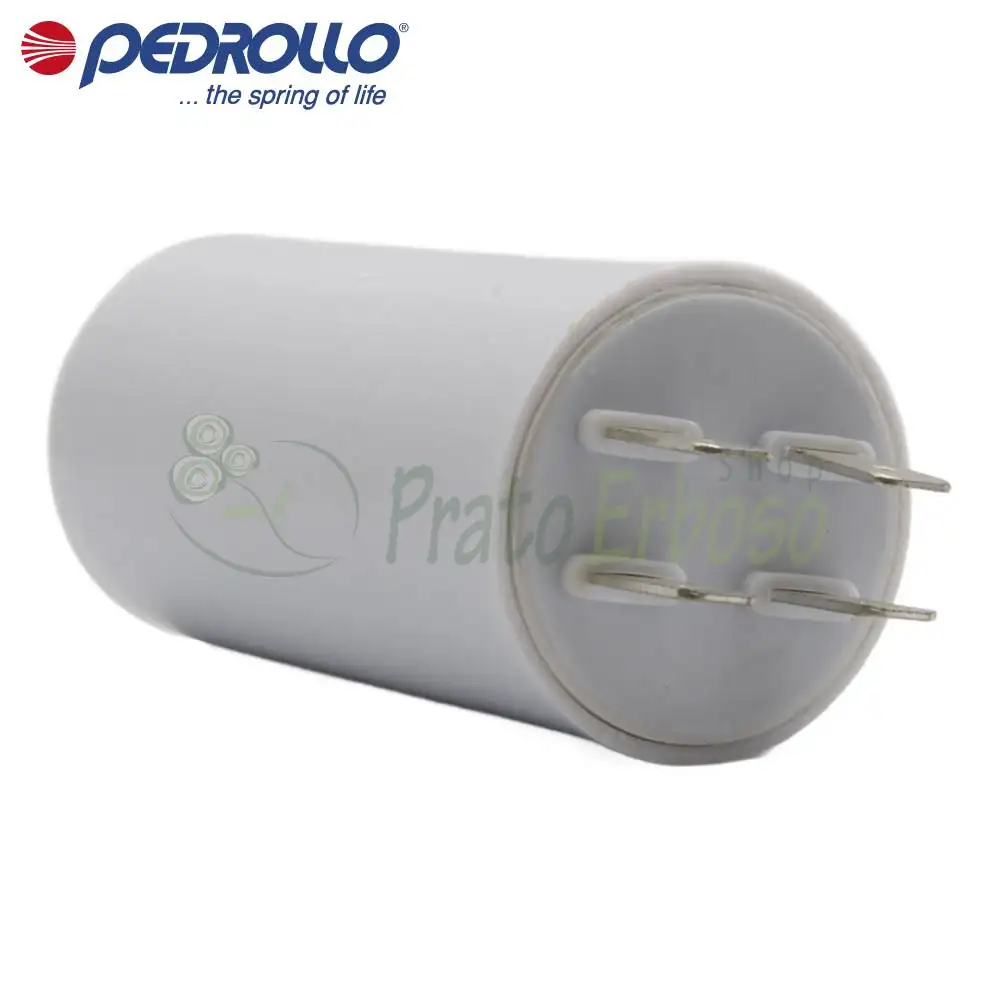

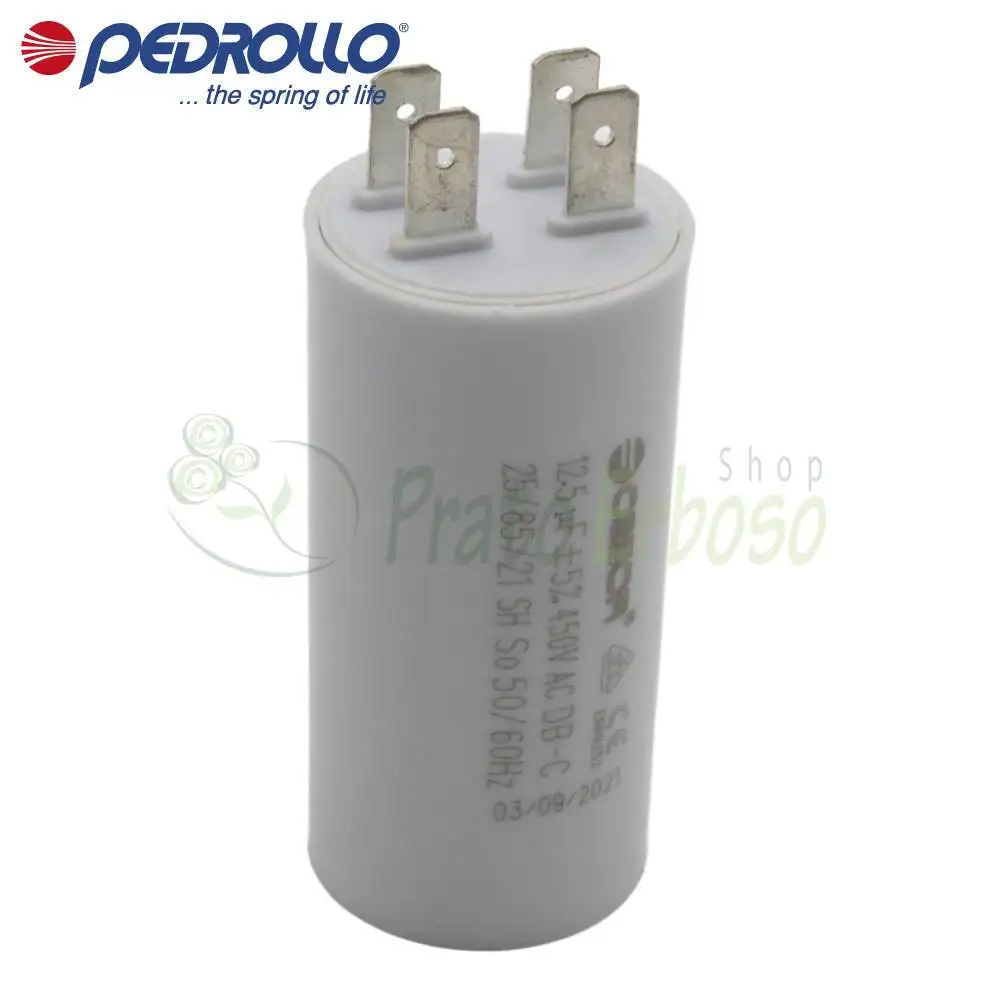

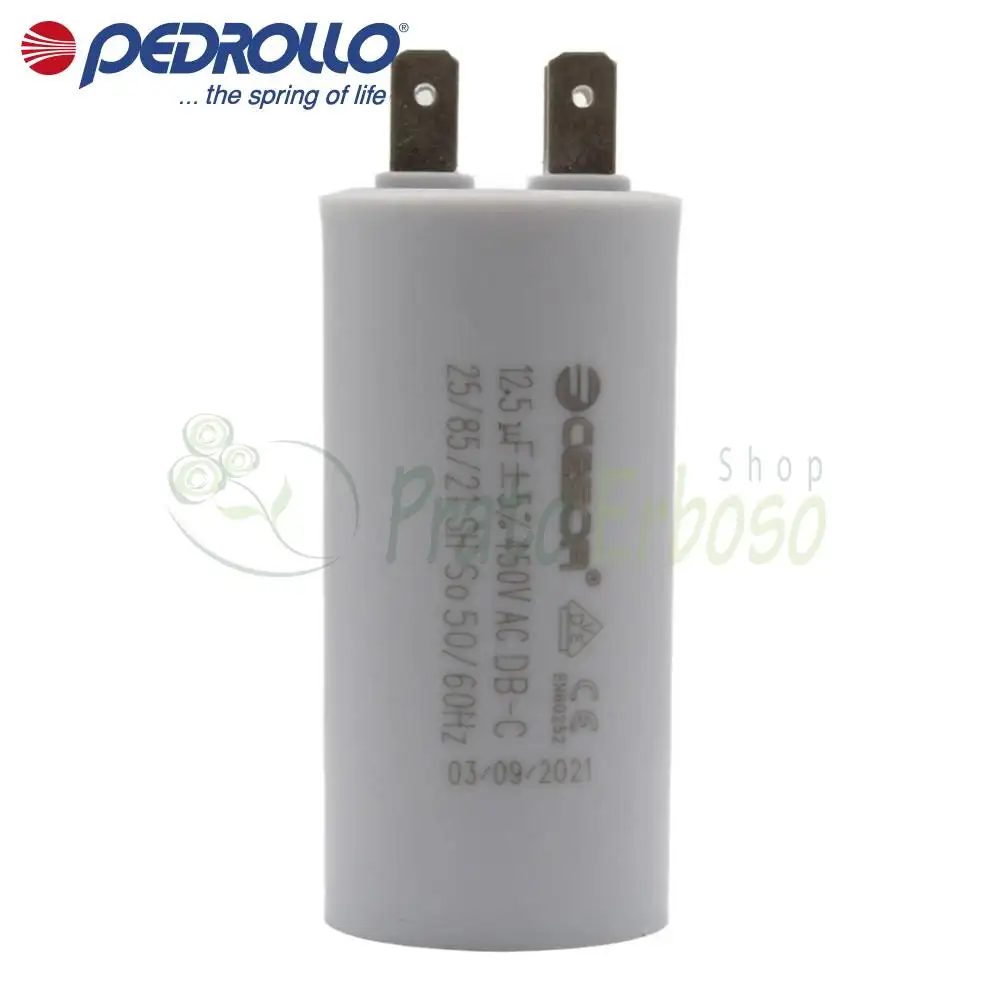

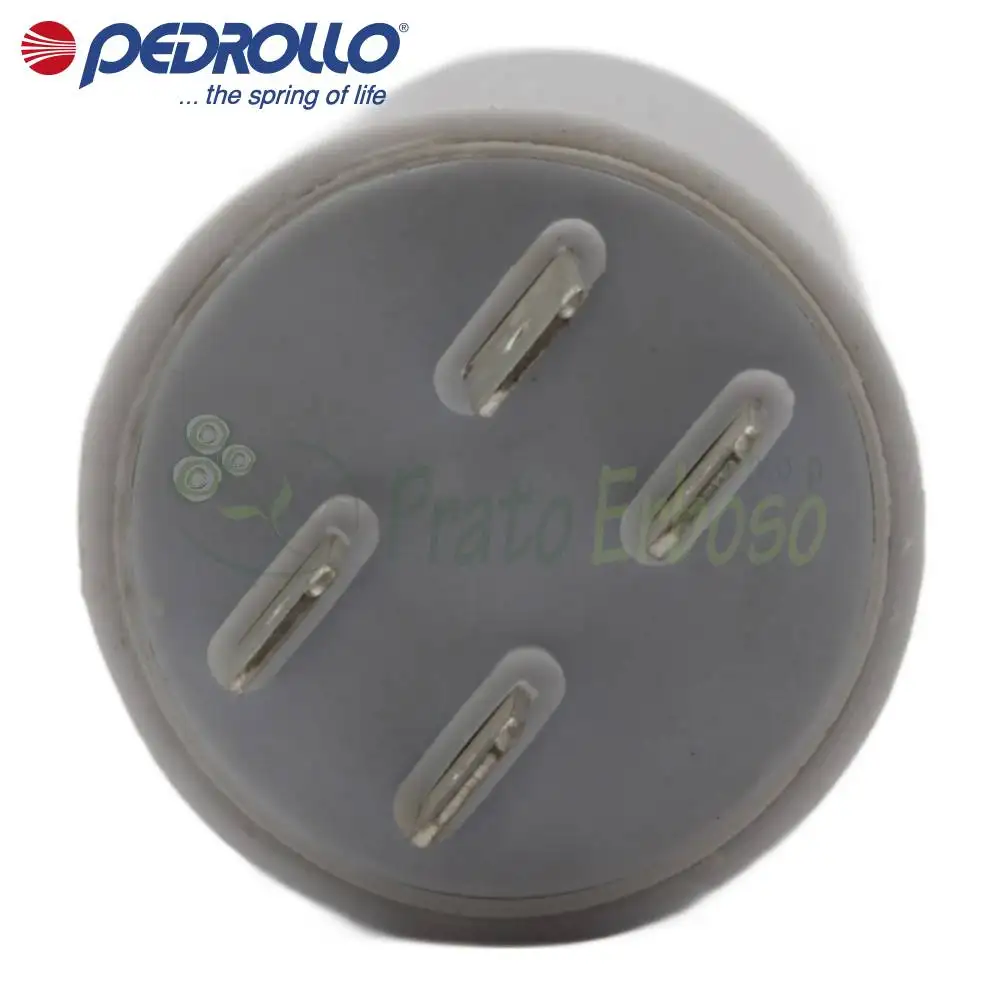

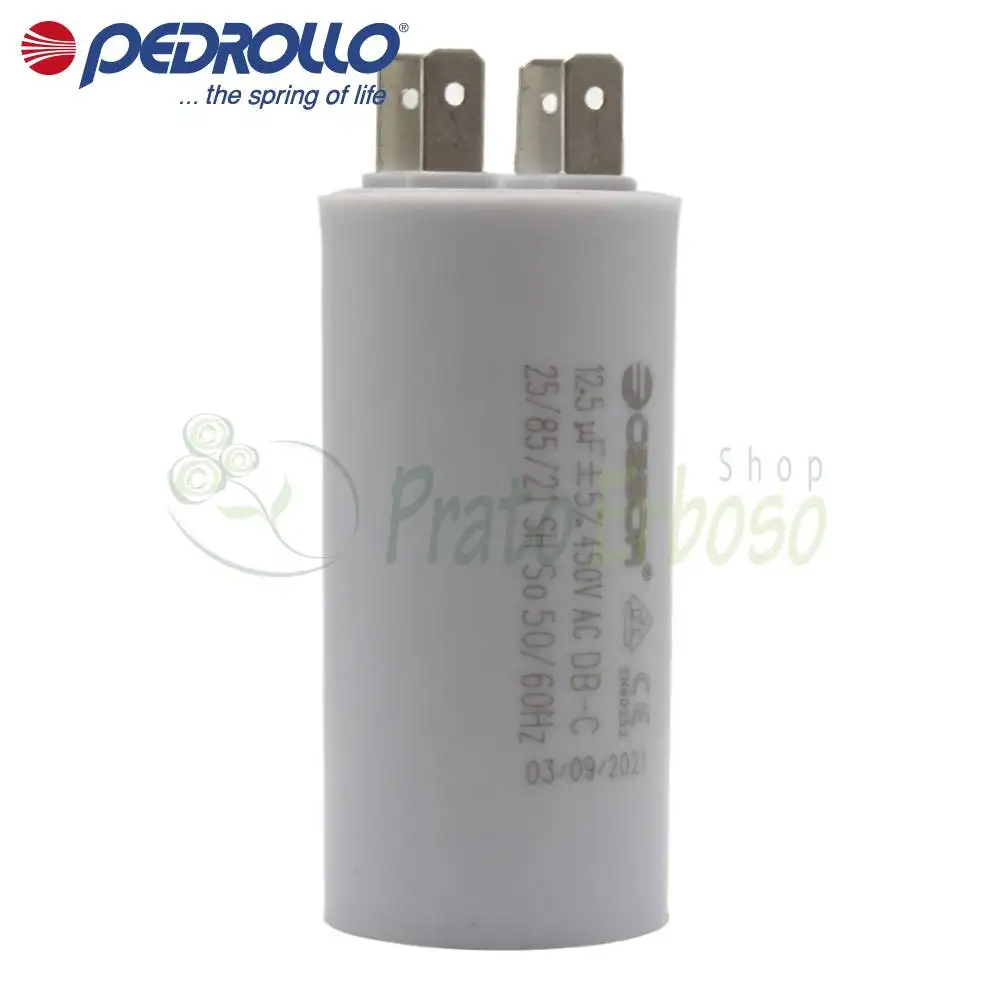

12 F - 12.5 micro farad 450 VL capacitor

The Pedrollo 12 F capacitor is an original spare part intended for the single-phase motors of numerous Pedrollo electric pumps.

It helps create the electrical phase shift necessary for starting and correct operation of the engine.

The 450 volt rating represents the capacitor's rated operating voltage, not the pump's supply voltage. This component is typically used on single-phase motors powered by 230 volts.

The capacitor is subject to deterioration. Replacing it with an original spare part eliminates the need to replace the entire electric pump.

A faulty or low-capacity capacitor can cause the pump to struggle or fail to start, the motor to hum without starting, reduced torque, and overheating.

The 12 F capacitor boasts VDE-IMQ approval which certifies that it has been subjected to safety tests regarding electrical insulation, voltage resistance, thermal behavior and material safety.

Original spare part for model PQ 81-PRO, CP 130, CP 130-ST4, CP 130-ST6, HF 50B, CK 50, CK 50BP, CK 50-INT, CKm 50 BP-NZ, JSW 1B, JSW 1BX, JSW 1C, JSW 1CX, Future JET 1B, Future JET 1BX, Future JET 1C, Future JET 1B-ST, JCR 1B, JCR 1C 2016, PLURIJET 3/80-N, PLURIJET 3/80X, PLURIJET 3/80, 3CP 80-I, 3CP 80, 3CP 80-C, 3CR 80-N, 2CR 80, 3CR 80, 3CR 80X, ZX 1B/40, TOP MULTI 2, TOP MULTI 3, TOP MULTI 2 - EVO, TOP MULTI 3 - EVO, TEX 3.
