MG1-14D SIC - 14 mm mechanical seal

The Pedrollo MG1-14D SIC mechanical seal identifies a group of 14 mm mechanical seals with an interposed oil chamber.

Suitable for electric pumps with a 14 mm crankshaft.

The MG1-14D SIC mechanical seal used in heavy-duty submersible electric pumps.

The mechanical seal's job is to keep the hydraulic part separate from the electrical part. It prevents water from reaching the bearings and motor.

The MG1-14D SIC seal allows shaft rotation without the use of a rigid seal.

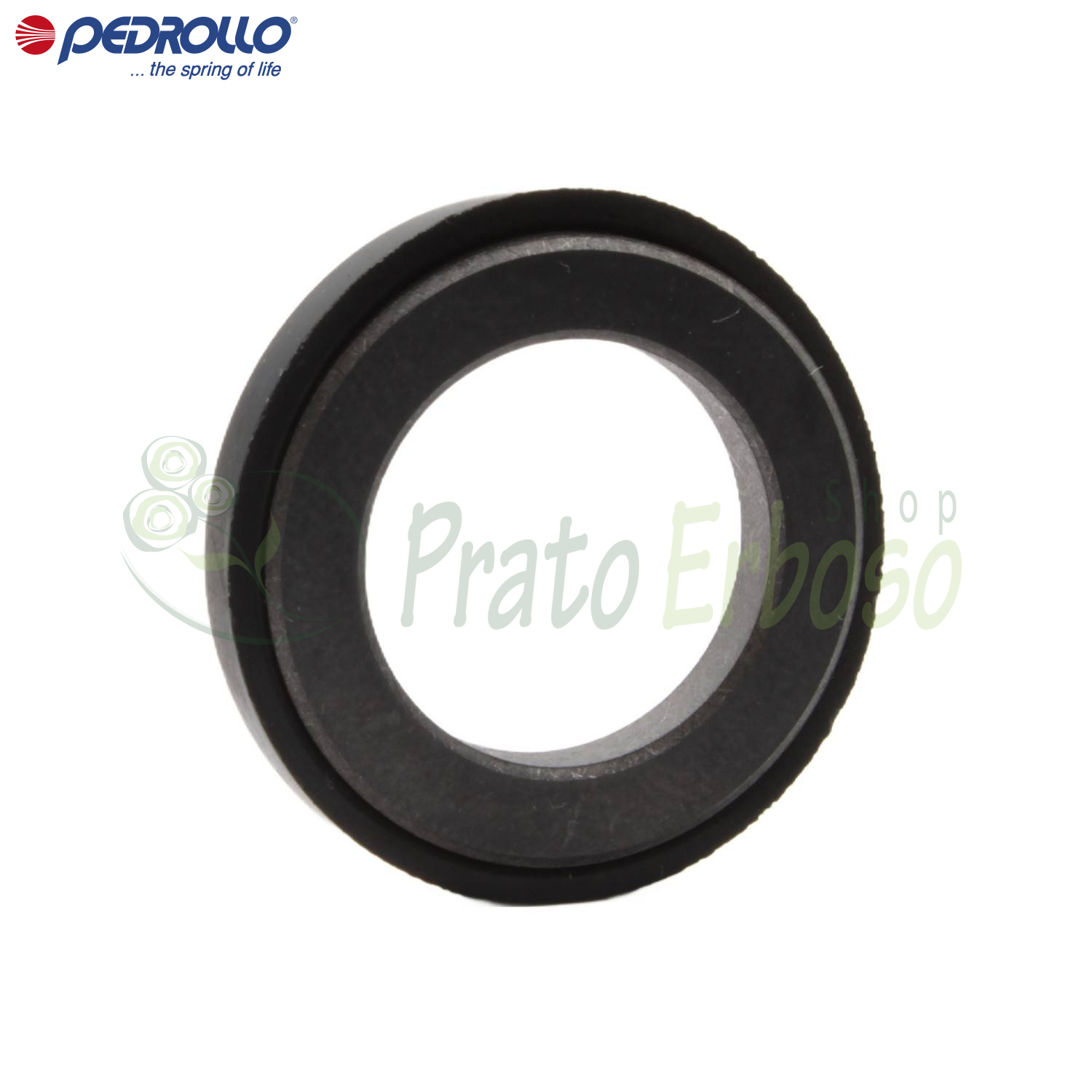

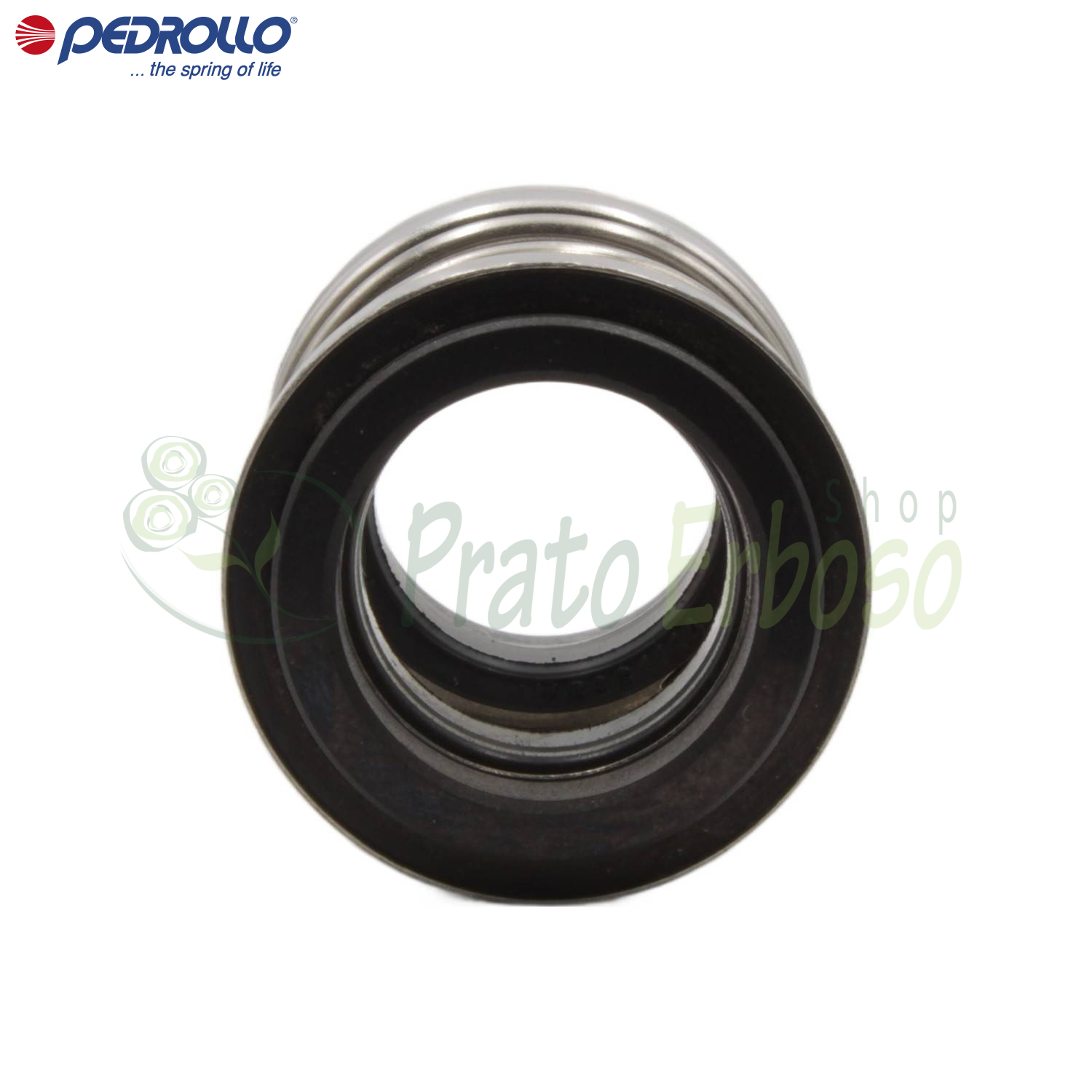

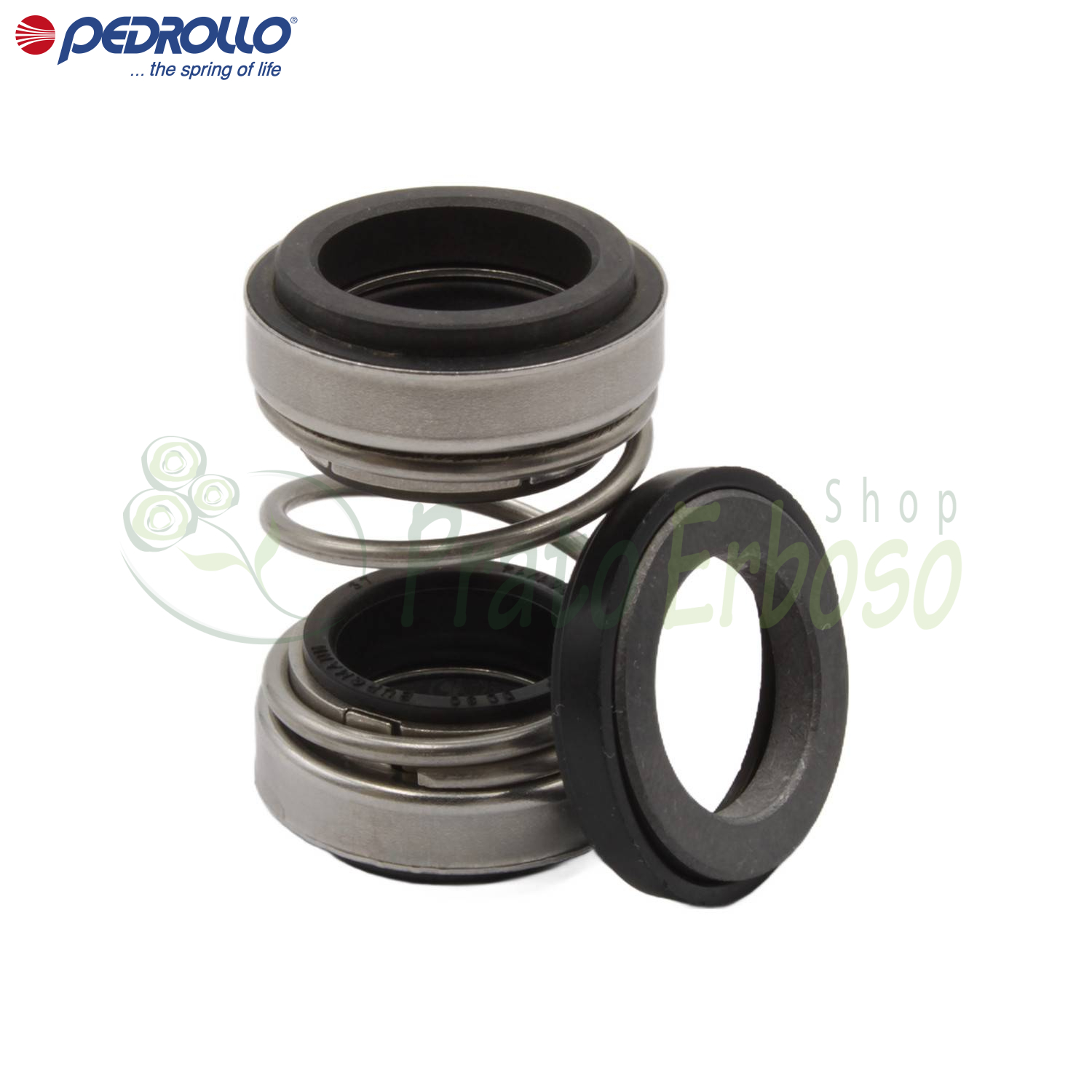

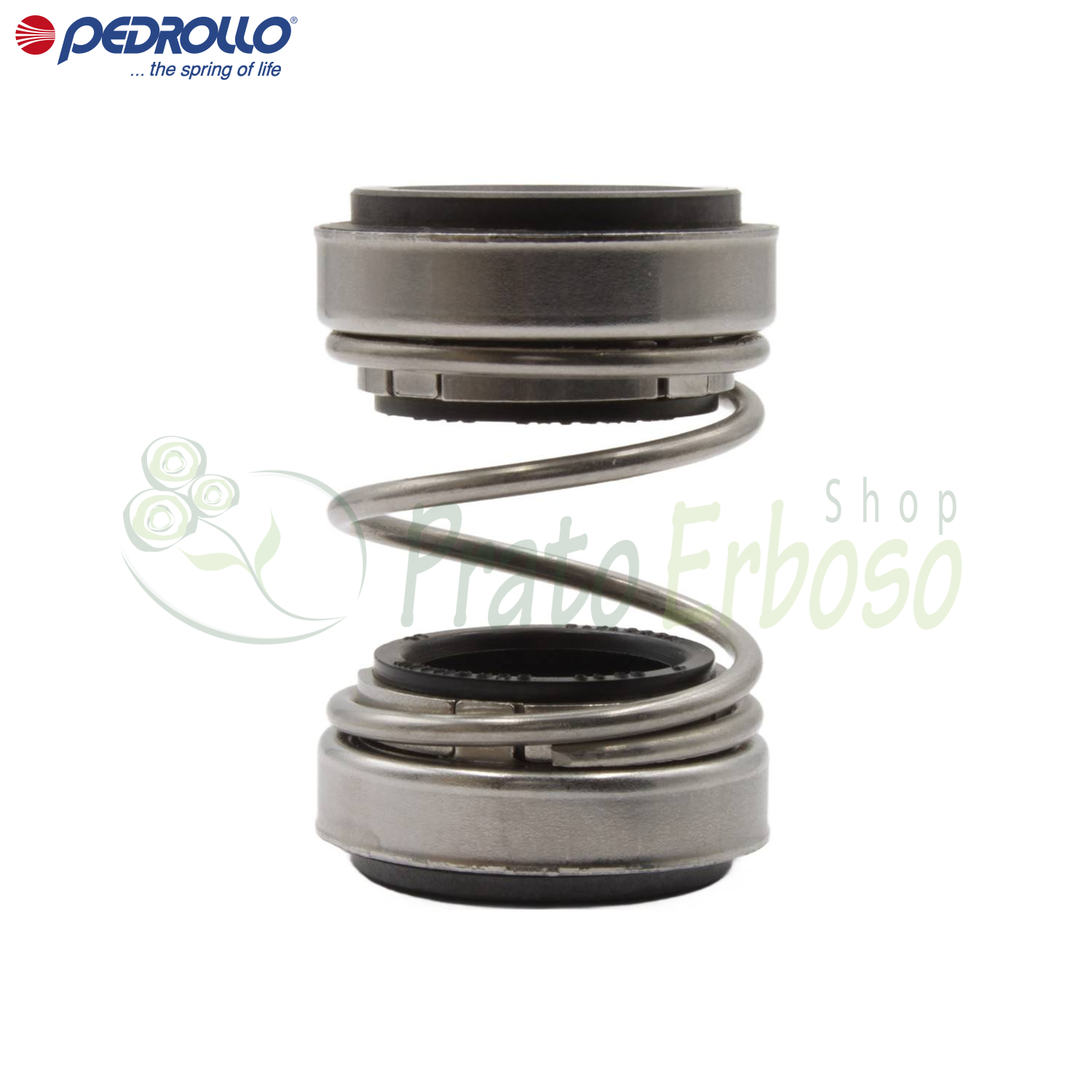

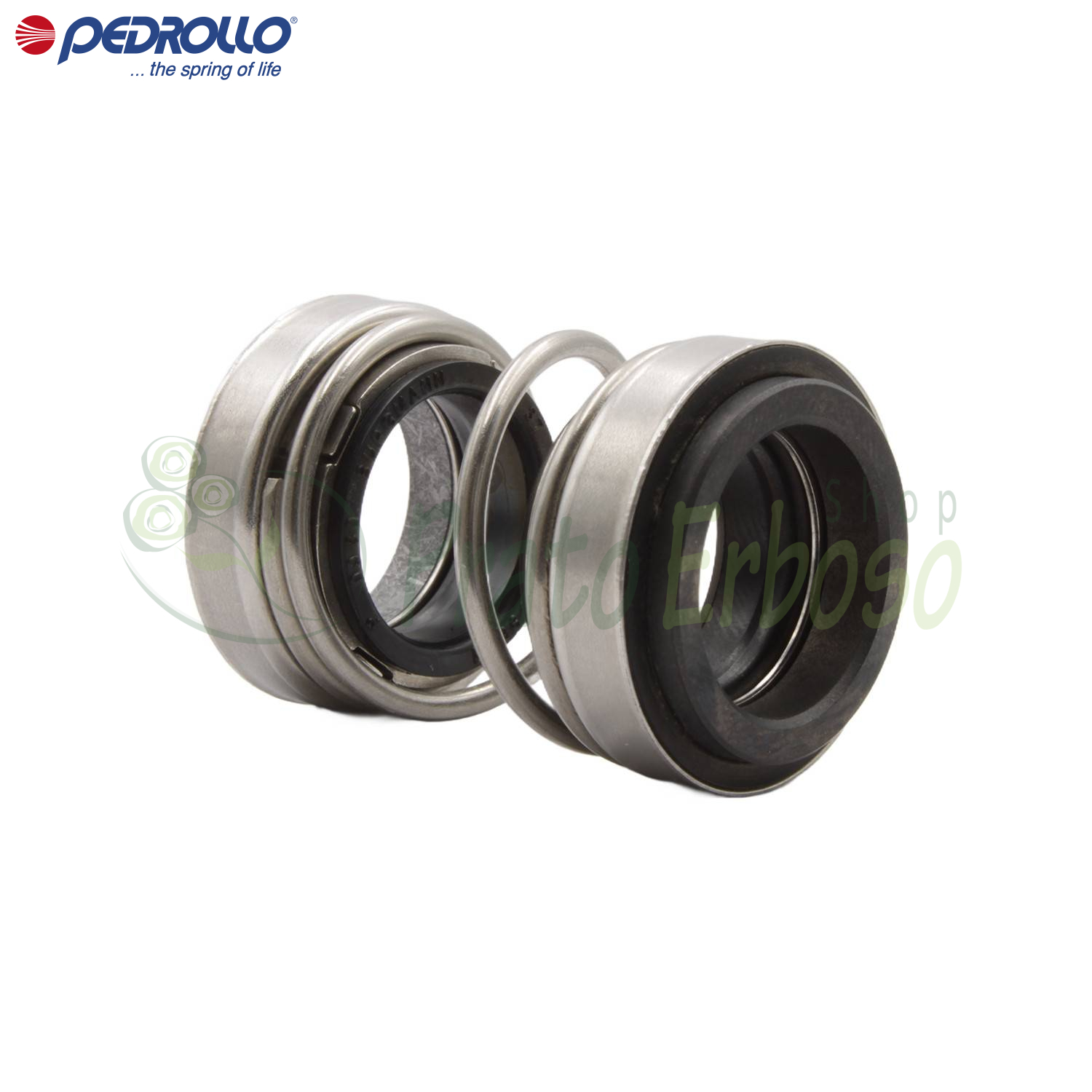

The seal consists of two parts: a rotating one and a fixed one. It is made of ceramic, silicon carbide, NBR, and AISI 316 stainless steel.

The seal inside the electric pump is one of the most stressed parts and is therefore subject to wear. It's important to replace it when water is found in the motor.

Original spare part for ZX 2/30, ZX 2/40, ZX 2/30-GM, ZX 2/40-GM, TR 0.75, TR 1.1, TR 0.9, TR 1.3, DC 8, DC 10, DC 20, MC 10/45, MC 15/45, BC 10/50, BC 15/50, BC 20/50, BC 10/50-N, BC 15/50-N, VX 10/35, VX 15/35, VX 20/35, VX 8/35-N, VX 10/35-N, VX 15/35-N, VX 8/50, VX 10/50, VX 15/50, VX 20/50, VX 8/50-N, VX 10/50-N, VX 15/50-N, D 8-N, D 10-N,D 18-N, D 20-N, BC 10/50-MF, BC 15/50-MF, BC 20/50-MF, VX 8/35-MF, VX 10/35-MF, VX 15/35-MF, VX 20/35-MF, VX 8/50-MF, VX 10/50-MF, VX 15/50-MF, VX 20/50-MF, BC 10/50-ST, BC 15/50-ST, BC 20/50-ST, VX 8/35-ST, VX 10/35-ST, VX 15/35-ST, VX 20/35-ST, VX 8/50-ST, VX 10/50-ST, VX 15/50-ST, VX 20/50-ST, RX 4, RX 5, RX 4-GM, RX 5-GM, TOP 4-N, TOP 5-N.
