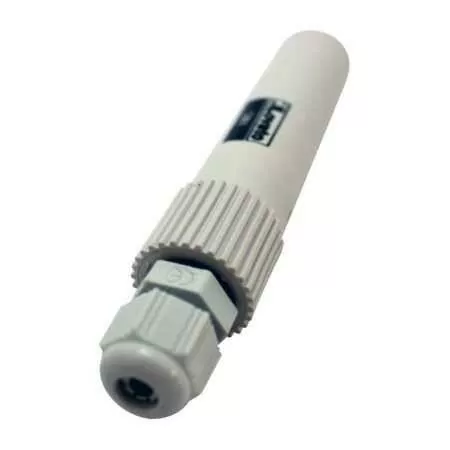

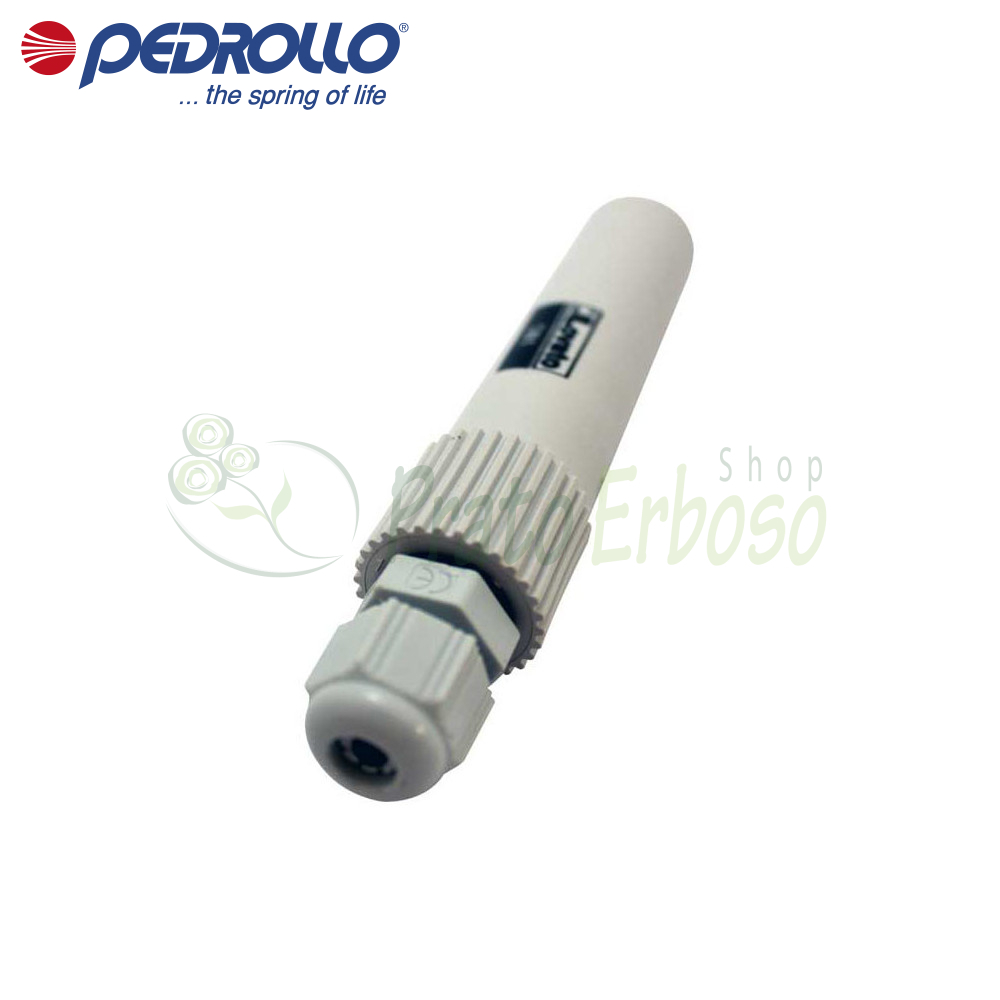

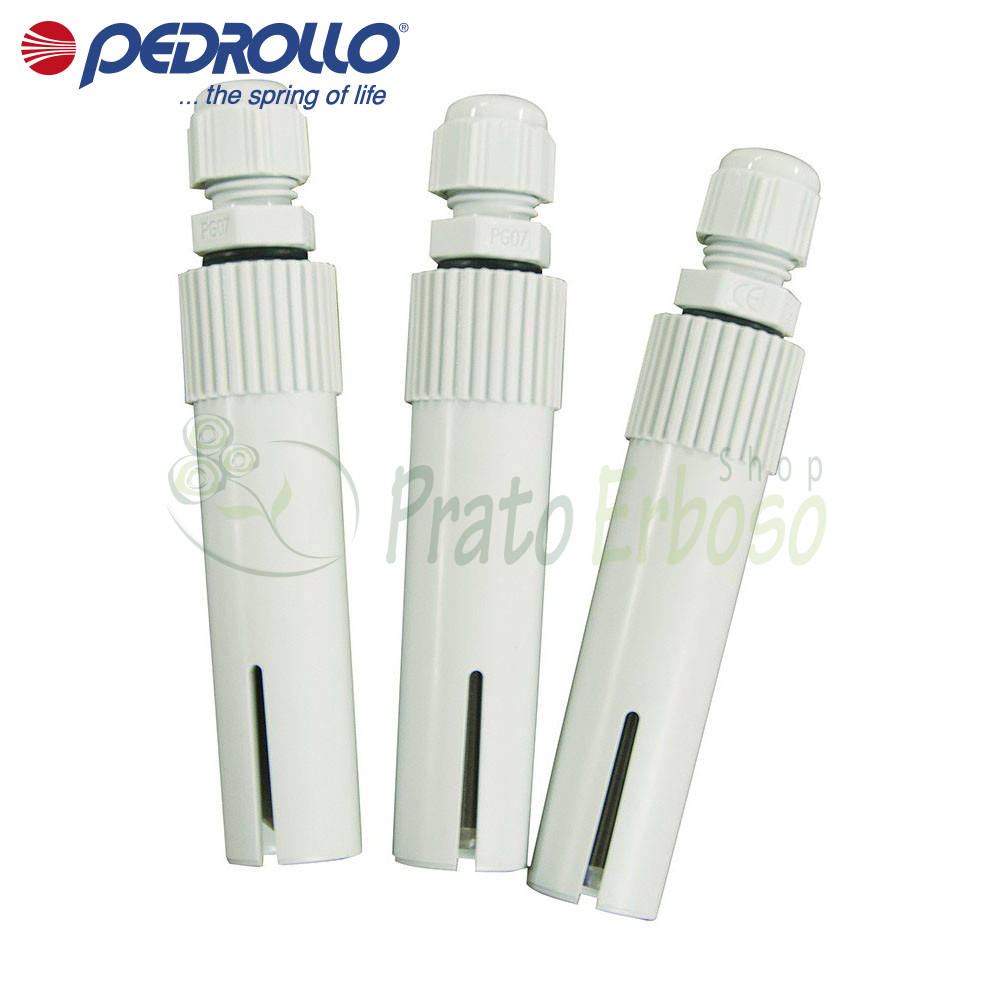

002775000 - Electrode probe
For paintings by Pedrollo .
The unipolar probe 002775000 is used in level control in wells or storage tanks and is used in combination with Pedrollo pump control panels for the operation of submersible pumps.
Suitable for conductive liquids with a maximum temperature of +40° centigrade.
It consists of an electrode in AISI 303 stainless steel, an electrode holder in PPOX plastic material and a cable gland.
A sealing ring and the tightening of the PG7 cable gland prevent water from entering the cable attachment terminal and consequent oxidation.
The cable connection is made using a screw. For a perfect seal, the connection cable must have an external diameter between 2.5 and 6 millimetres. The maximum section of the connection cable is 2.5 square millimeters.
