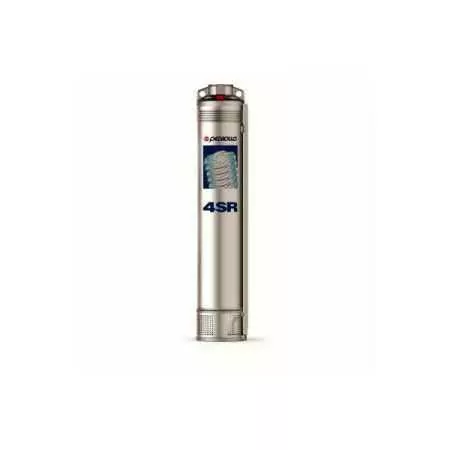

4SR 1/15 S-HYD - 30L Submersible Pump

Name: 4SR 1/15 S-HYD - 30L Submersible Pump
Brand: Pedrollo
SKU: 4SR 1/15 S-HYD
Price: 208.68 EUR
Availability: InStock

HYDRAULIC PART. WITHOUT MOTOR.

Flow rate up to 30 l/min (1.8 m³/h). Head up to 104 metres.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

Original replacement

Description

The Pedrollo 4SR 1/15 S-HYD pump consists of only the impeller part, without the motor.

The 4SR 1/15 S-HYD can be mounted on any 0.75 HP engine.

Recommended for pumping clean water with sand content not exceeding 200 grams per cubic meter.

It has a flow rate that varies from 5 to 30 litres per minute with a head from 48.5 to 104 metres.

Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.

Data sheet

Power (HP): 0.75
Delivery mouth: 1" 1/4
Pump body: AISI 304 stainless steel
Impeller: Delrin
Number of impellers: 15
Pump shaft: AISI 304 stainless steel
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 30
Min. head (m.): 48.5
Max. head (m.): 104
Height (cm): 48.8
Warranty (years): 2

Attachments

4SR S Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4SR-S series pumps.

Download (2.91MB)
