4PD/0.75 - Rewindable motor 4" 0.75 HP three-phase 230 V
4PD/0.75 230/240 V
Power: 0.55 kW (0.75 HP). Voltage: 230V / 50Hz. Current: 3.5A. Revolutions: 2835/min.
-
Telephone support for information before purchasing.
-
Reinforced packaging to reduce transport damage.
-
After-sales assistance for product installation.
-
Original replacement
Description

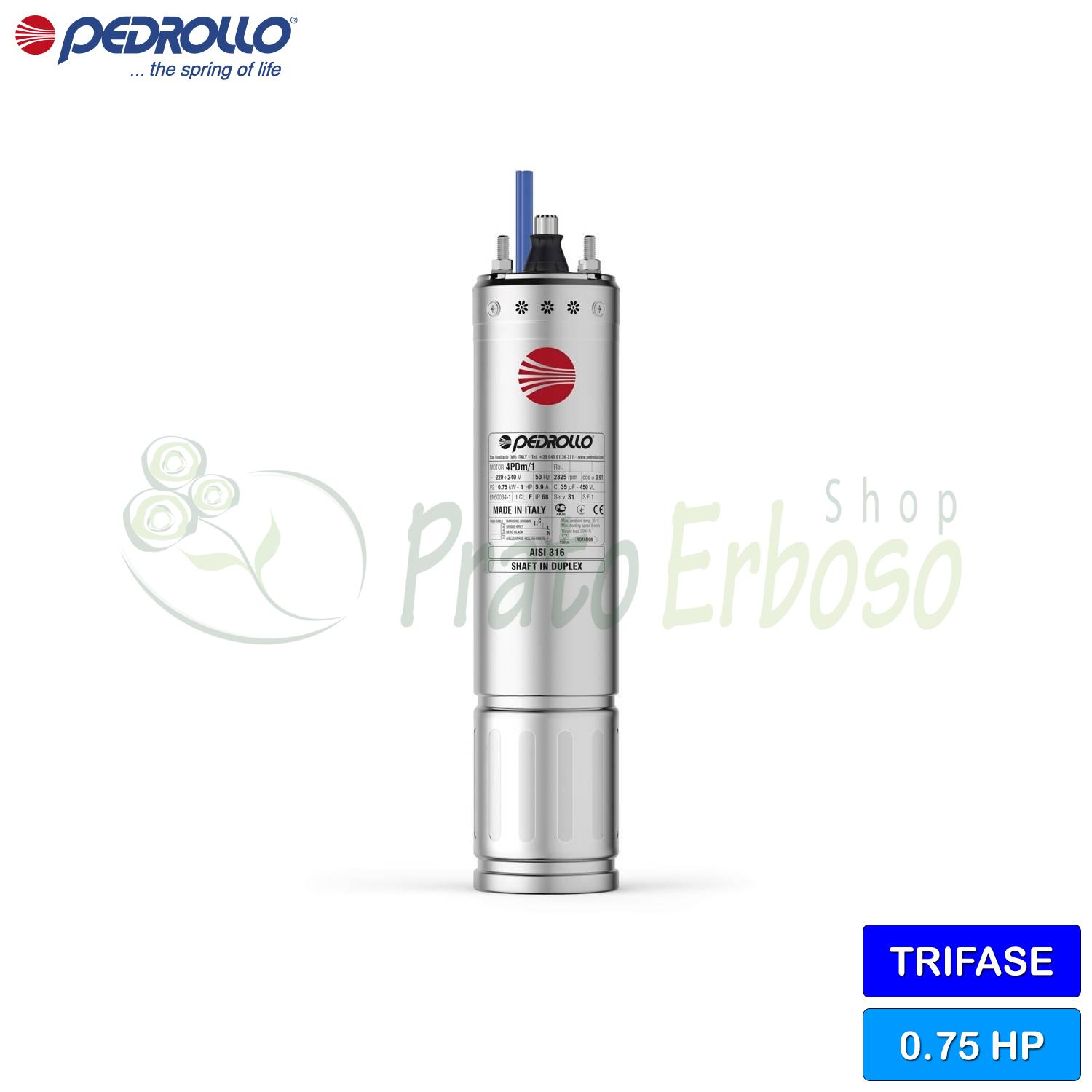

The PEDROLLO PD electric motor for the 4SR Submersible Pump models is the driving force behind the entire pump body.
Specially sized for the pump it will tow, it guarantees the best performance.
It is a food-grade rewindable submersible motor in oil bath, complete with 1.5m power cable.
Insulation class F and IP68 protection appropriate for use.
Data sheet
4PD/0.75 230/240 V
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Motor connection
- THREE-PHASE
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.5
- Crankshaft
- Duplex Stainless Steel
- Max. liquid temperature (°C)
- +35°C
- Cable length (m.)
- 2
- Degree of protection
- IP 68
- Height (cm)
- 33.1
- External diameter (cm)
- 9.2
- Weight (Kg)
- 7.7
- Warranty (years)
- 2
Data sheet
Use and formulation of products
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.5
Pump components and construction
- Crankshaft
- Duplex Stainless Steel
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +35°C
Power supply and electrical parameters
- Cable length (m.)
- 2
Safety and protection
- Degree of protection
- IP 68
Dimensions and weight
- Height (cm)
- 33.1
- External diameter (cm)
- 9.2
- Weight (Kg)
- 7.7
Packaging, maintenance, and warranty
- Warranty (years)
- 2
