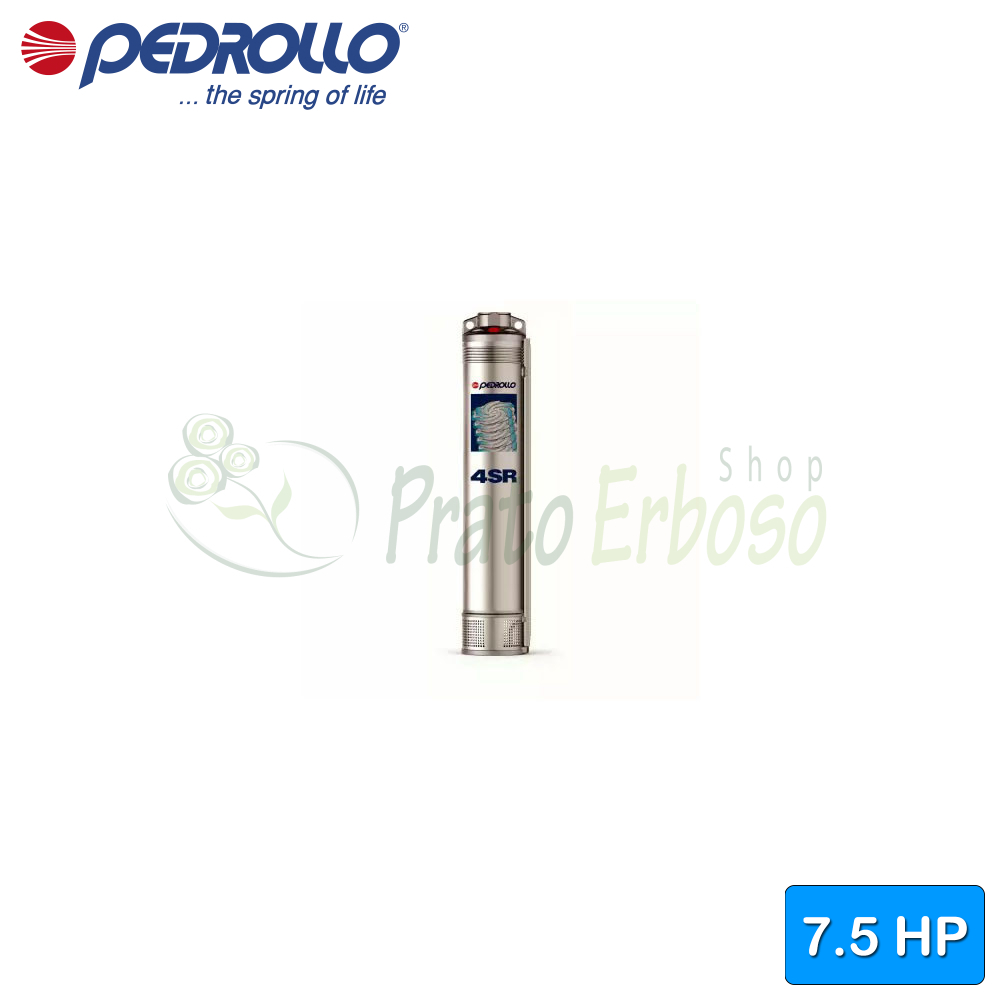

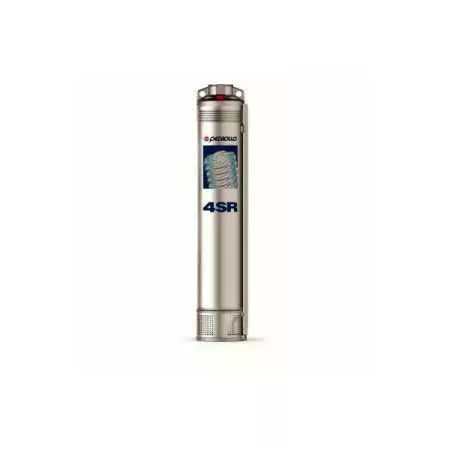

4SR 4/54 S-HYD - 100 litre submersible pump

Name: 4SR 4/54 S-HYD - 100 litre submersible pump
Brand: Pedrollo
SKU: 4SR 4/54 S-HYD
Price: 654.9 EUR
Availability: InStock

HYDRAULIC PART. WITHOUT MOTOR.

Flow rate up to 100 l/min (1.8 m³/h). Head up to 410 metres.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

Original replacement

Description

The Pedrollo 4SR 4/54 S-HYD pump consists of only the impeller part, without the motor.

The 4SR 4/54 S-HYD can be mounted on any 7.5 HP engine.

The Pedrollo 4SR 4/54 S-PD electric pump is recommended for pumping clean water with a sand content not exceeding 200 grams per cubic metre.

It has a flow rate that varies from 20 to 100 litres per minute with a head of 151 to 410 metres.

Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.

Data sheet

Power (HP): 7.5
Delivery mouth: 1" 1/4
Pump body: AISI 304 stainless steel
Impeller: Delrin
Number of impellers: 54
Pump shaft: AISI 304 stainless steel
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 100
Min. head (m.): 151
Max. head (m.): 410
Height (cm): 168.4
External diameter (cm): 9.8
Warranty (years): 2

Attachments

4SR S Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4SR-S series pumps.

Download (2.91MB)

Compare with Similar Products

	4SR 4/54 S-HYD - 100 litre submersible pump This product HYDRAULIC PART. WITHOUT MOTOR. Flow rate up to 100 l/min (1.8 m³/h). Head up to 410 metres.	4SR 4/30 S-HYD - 100 litre submersible pump Quick View HYDRAULIC PART. WITHOUT MOTOR. Flow rate up to 100 l/min (1.8 m³/h). Head up to 228 metres.	4SR 4/40 S-HYD - 100 litre submersible pump Quick View HYDRAULIC PART. WITHOUT MOTOR. Flow rate up to 100 l/min (1.8 m³/h). Head up to 304 metres.	4SR 4/72 S-HYD - 100 litre submersible pump Quick View HYDRAULIC PART. WITHOUT MOTOR. Flow rate up to 100 l/min (6.0 m³/h). Head up to 576 metres.
Price	Price €1,190.72 -45% €654.90	Price €596.58 -45% €328.12	Price €1,002.84 -45% €551.56	Price €1,407.88 -45% €774.33
Power (HP)	Power (HP) 7.5	Power (HP) 4	Power (HP) 5.5	Power (HP) 10
Delivery mouth	Delivery mouth 1" 1/4	Delivery mouth 1" 1/4	Delivery mouth 1" 1/4	Delivery mouth 1" 1/4
Pump body	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel
Impeller	Impeller Delrin	Impeller Delrin	Impeller Delrin	Impeller Noryl
Number of impellers	Number of impellers 54	Number of impellers 30	Number of impellers 40	Number of impellers 72
Pump shaft	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 20	Minimum flow rate (l./min.) 20	Minimum flow rate (l./min.) 20	Minimum flow rate (l./min.) --
Max. flow rate (l./min.)	Max. flow rate (l./min.) 100	Max. flow rate (l./min.) 100	Max. flow rate (l./min.) 100	Max. flow rate (l./min.) --
Min. head (m.)	Min. head (m.) 151	Min. head (m.) 84	Min. head (m.) 112	Min. head (m.) --
Max. head (m.)	Max. head (m.) 410	Max. head (m.) 228	Max. head (m.) 304	Max. head (m.) --
Height (cm)	Height (cm) 168.4	Height (cm) 96.3	Height (cm) 128.4	Height (cm) 213.4
External diameter (cm)	External diameter (cm) 9.8	External diameter (cm) 9.8	External diameter (cm) 9.8	External diameter (cm) 9.8
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
