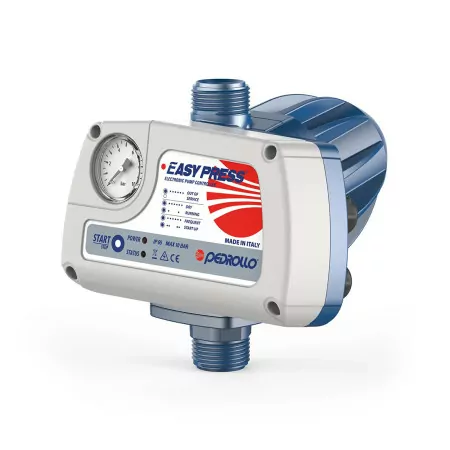

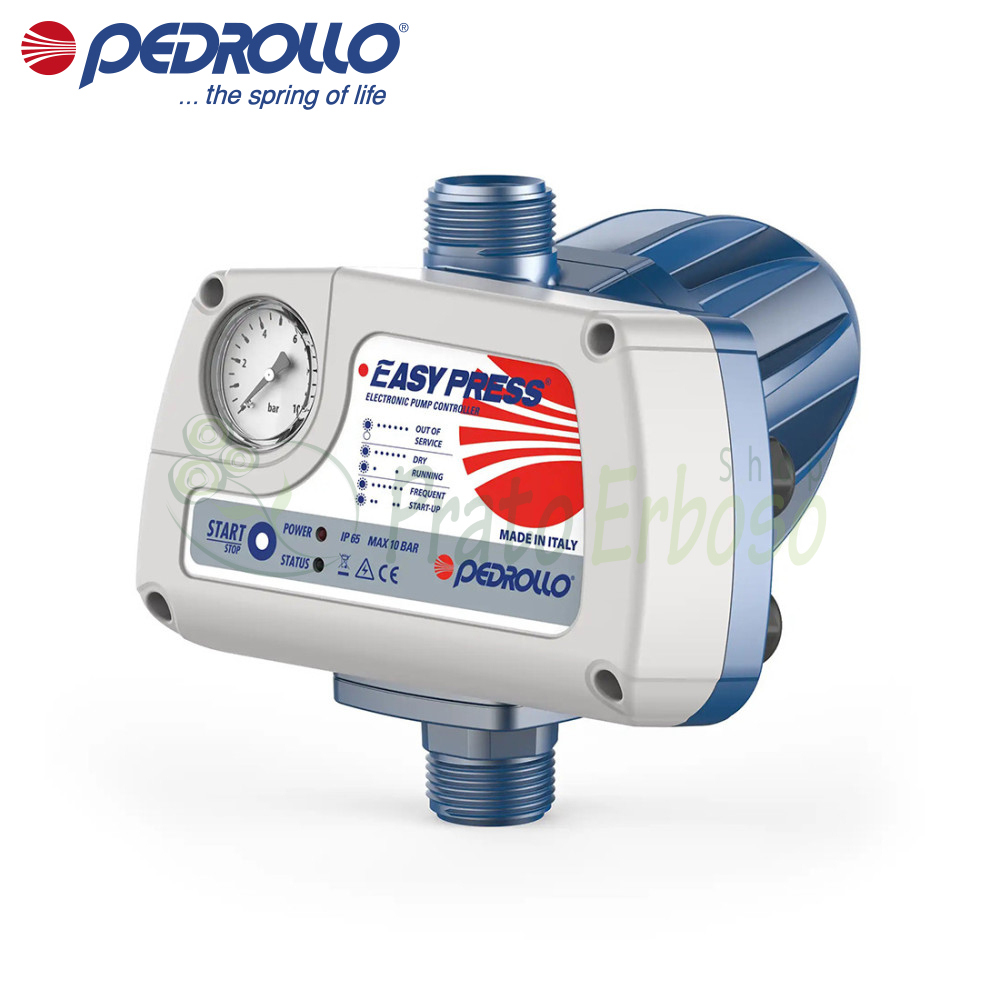

EASYPRESS-BLU - Electronic pressure regulator
For pumps up to 2 HP. With pressure gauge. With auto-reset. Restart pressure 1.5 bar .
The Pedrollo EASYPRESS pressure regulator is an electronic device for starting and stopping single-phase electric pumps with power up to 2 HP.
The EASYPRESS is composed of a pressure sensor and a flow sensor, connected to an electronic system, which start the electric pump when, when a tap is opened, the system pressure drops below the restart pressure and stops it when the flow rate reaches zero or drops below 2 litres per minute.
It also protects the electric pump from starting too frequently due to small leaks in the system.
The restart pressure of the blue version is 1.5 bar .
- Power (HP)
- 2
- Degree of protection
- IP 65
- Max. flow rate (l./min.)
- Max. working pressure (bar)
- Restart pressure (bar)
- 1.5
- Jobs
- irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- 50
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- 16 A
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Dry running protection
- Yes
- Height (cm)
- 17.7
- Attack size
- 1 "
- Weight (Kg)
- 0.7
- Warranty (years)
- 2
- Type of attack
- male
