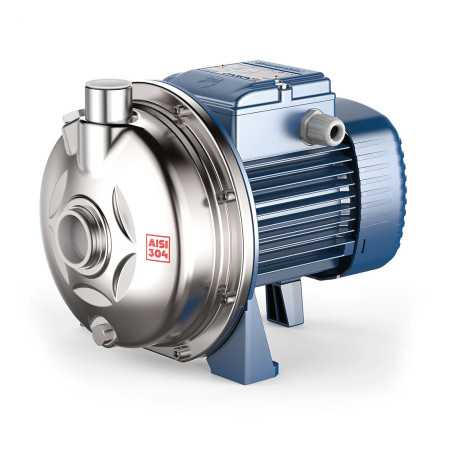

copy of CPm 170-ST4 - Single-phase stainless steel centrifugal electric pump 1.5 HP
In AISI 304 stainless steel. Flow rate up to 140 l/min (8.4 m³/h). Head up to 41 m. 1.1 Kw (1.5 HP) motor.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
It is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Due to its construction features, this centrifugal pump is recommended for use in the domestic, agricultural and industrial sectors.
All components in contact with the pumped liquid are made of AISI 304 or AISI 316L stainless steel to guarantee total hygiene and maximum resistance to corrosion.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 7.8
- Capacitor
- 25 µF450 VL
- Suction mouth
- 1 "1/4
- Delivery mouth
- 1 "
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Min. flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 140
- Min. head (m.)
- 20
- Max. head (m.)
- 41
- Jobs
- water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
- Max. liquid temperature (°C)
- 90
- Height (cm)
- 23.75
- Width (cm)
- 36.8
- Depth (cm)
- 24.5
- Weight (Kg)
- 14.5
- Warranty (years)
- 2
