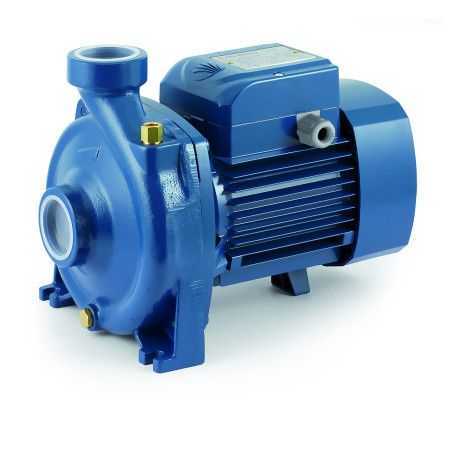

HFm 51A - Single-phase centrifugal electric pump 1 HP OFFER
Flow rate up to 300 l/min (18 m³/h). Head up to 21.2 m. 0.75 Kw (1 HP) motor.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The PEDROLLO pumps of the HF medium flow rate line are recommended for civil and agricultural environments.
The PEDROLLO HF 51A has a flow rate ranging from 50 to 300 litres per minute with a head of 21.2 to 8.2 metres.
The high achievable yields and the possibility of continuous use make the use of this electric pump advantageous for flow or rain irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in a medium-low prevalence ratio.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.6
- Capacitor
- 20 µF450 VL
- Suction mouth
- 1 "1/2
- Delivery mouth
- 1 "1/2
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Min. flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 8.4
- Max. head (m.)
- 21.2
- Jobs
- water supply, irrigation, cooling systems, transfer of tanks
- Max. liquid temperature (°C)
- 90
- Motor voltage
- 230 V
- Height (cm)
- 22.5
- Width (cm)
- 30.3
- Depth (cm)
- 19
- Weight (Kg)
- 13
- Warranty (years)
- 2
