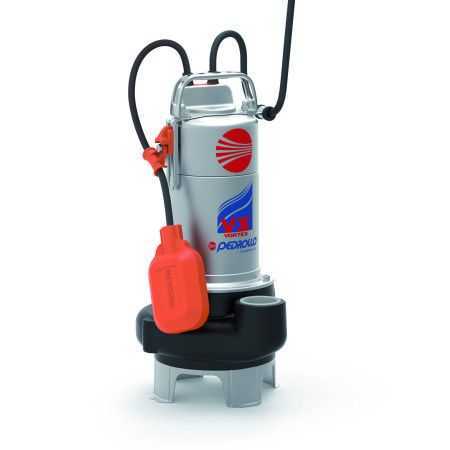

VX 15/50 - 1.5 HP three-phase VORTEX electric pump for waste water OFFER
Flow rate up to 650 l/min (39 m³/h). Head up to 11.5 m. 1.1 Kw (1.5 HP) motor.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
It is recommended for domestic, civil and industrial use, in all cases where suspended solids of up to Ø 40 mm are present in the water, for example groundwater, surface water, sewage and loaded water.
Its use is recommended for draining flooded areas, such as basements, underground car parks, car wash areas, for domestic waste water, emptying cesspits, and disposing of sewage.
This pump stands out for its reliability, especially in fixed installations with automatic operation.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 400V (A)
- 3.0
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 650
- Min. head (m.)
- 2
- Max. head (m.)
- 11.5
- Cable length (m)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 44.6
- Width (cm)
- 24.3
- Weight (Kg)
- 15
- Warranty (years)
- 2
