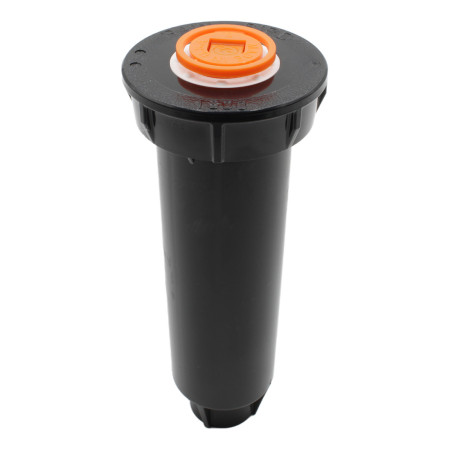

1804 SAM - 10cm Pop-up Sprinkler
Turret height 10 centimeters. WITHOUT NOZZLE.
The Rain Bird 1804 SAM sprinkler is ideal Ideal for sloping landscapes and flowerbeds. It offers excellent performance combined with great reliability and excellent construction.
The built-in SAM check valve holds a pressure generated by a height difference equal to 4.2 m of water column.
The sealing gasket is fused into the ring nut, creating an embedded plastic cage that offers unmatched resistance to sand, pressure and the environment.
Additionally, the pressure-activated, multi-function seal design ensures optimum sealing without excessive flow, allowing for multiple valves to be connected to the same valve.
The 1804 SAM's robust stainless steel return spring provides optimum tube retraction.
The two-piece friction mechanism allows for easy alignment of the head and ensures considerable durability.
Precise flow control during retraction clears debris from the sprinkler, ensuring optimal return of the spout in any type of soil.
All components of the 1804 SAM sprinkler are removable from the top without the use of special tools, allowing for quick and easy washing and maintenance of the sprinkler.
The Rain Bird 1804 SAM sprinkler is constructed of proven UV-resistant plastic and corrosion-resistant stainless steel components to ensure long-lasting durability.
- Min. flow rate (l./min.)
- Max. flow rate (l./min.)
- Max. working pressure ( bar )
- Min. working pressure ( bar )
- Max. range (m)
- 5.5
- Turret height (cm.)
- 10
- Height (cm)
- Attack size
- 1/2 "
- Type of attack
- female
- Thread
- BSP
Compare with Similar Products
 1804 SAM - 10cm Pop-up SprinklerThis product Turret height 10 centimeters. WITHOUT NOZZLE. |  PSU-02-10A - Pop-up sprinkler, 3 m rangeTurret height 5 cm. Variable working angle. |  PSU-02-12A - Pop-up sprinkler, 3.7 m rangeTurret height 5 cm. Variable working angle. | |
|---|---|---|---|
| Min. flow rate (l./min.) | Min. flow rate (l./min.) -- | Min. flow rate (l./min.) -- | Min. flow rate (l./min.) -- |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Max. working pressure ( bar ) | Max. working pressure ( bar ) -- | Max. working pressure ( bar ) -- | Max. working pressure ( bar ) -- |
| Min. working pressure ( bar ) | Min. working pressure ( bar ) -- | Min. working pressure ( bar ) -- | Min. working pressure ( bar ) -- |
| Max. range (m) | Max. range (m) 5.5 | Max. range (m) 3 | Max. range (m) 3.7 |
| Angle adjustment | Angle adjustment -- | Angle adjustment partializable | Angle adjustment partializable |
| Turret height (cm.) | Turret height (cm.) 10 | Turret height (cm.) 5 | Turret height (cm.) 5 |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Attack size | Attack size 1/2 " | Attack size 1/2 " | Attack size 1/2 " |
| Type of attack | Type of attack female | Type of attack female | Type of attack female |
| Thread | Thread BSP | Thread BSP | Thread BSP |
