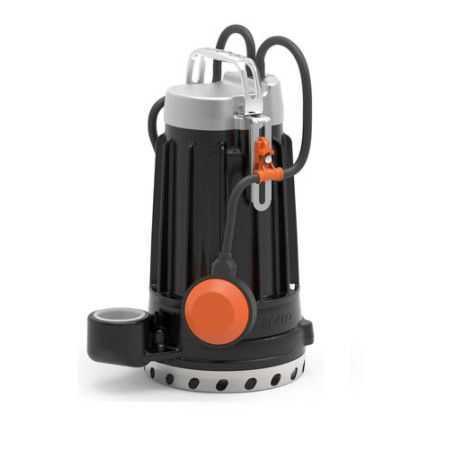

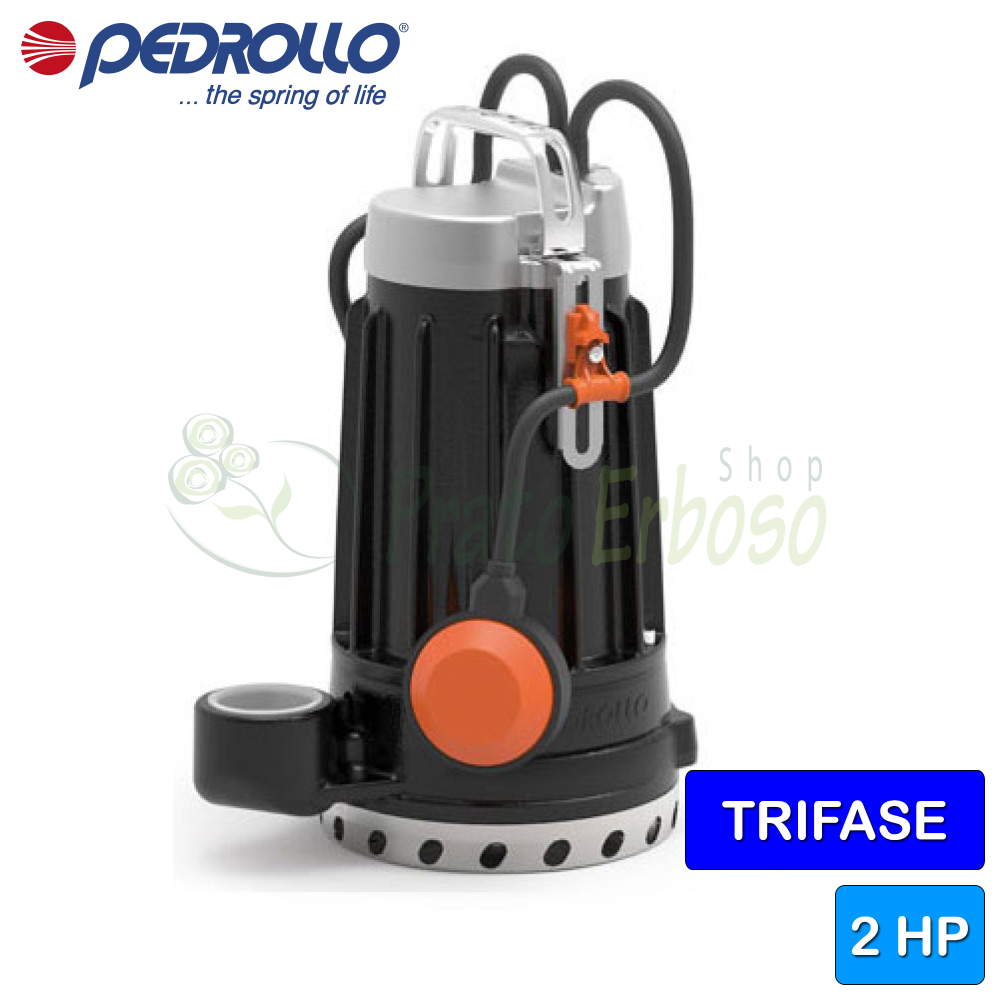

DC 42 - 2 HP three-phase cast iron electric pump for clear water
The Pedrollo DC 42 three-phase electric pump is recommended for use in the domestic, civil and industrial sectors and for the drainage of clear or slightly dirty water.
It stands out for its reliability in automatic installations. Pedrollo designed this pump with high-quality construction and premium materials in mind.
The DC 42 is built in cast iron of considerable thickness, exceptional strength, resistance to abrasion and durability over time.
It stands out from other pumps in the DC series for its stainless steel impeller. It allows the passage of solids up to 10 millimeters in diameter.
The flow rate ranges from 25 to 500 litres per hour and the head ranges from 3 to 31 metres.
It can be installed up to 10 meters below water level.
The supplied cable supplied with the DC 42 is 10 metres long.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Current consumption at 400V (A)
- Capacitor
- 25 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 275
- Min. head (m.)
- 9
- Max. head (m.)
- 26
- Cable length (m.)
- 10
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 33.7
- Width (cm)
- Depth (cm)
- Weight (Kg)
- 18.8
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 DC 42 - 2 HP three-phase cast iron electric pump for clear waterThis product Flow rate up to 500 l/min (30 m³/h). Head up to 31 m. 1.5 kW (2 HP) motor. |  DC 30 - 1.5 HP three-phase cast iron electric pump for clear waterFlow rate up to 275 l/min (16.5 m³/h). Head up to 26 m. 1.1 Kw (1.5 HP) motor. |  DC 43 - 3 HP three-phase cast iron electric pump for clear waterFlow rate up to 550 l/min (33 m³/h). Head up to 35.5 m. 2.2 Kw (3 HP) motor. |  DC 44 - 4 HP three-phase cast iron electric pump for clear waterFlow rate up to 550 l/min (33 m³/h). Head up to 38 m. 3 kW (4 HP) motor. | |
|---|---|---|---|---|
| Price | Price €1,498.16 -42% €868.93 | Price €616.10 -42% €357.34 | Price €1,578.68 -42% €915.63 | Price €1,671.40 -42% €969.41 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.1 | Power (Kw) 2.2 | Power (Kw) 3 |
| Power (HP) | Power (HP) 2 | Power (HP) 1.5 | Power (HP) 3 | Power (HP) 4 |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) 3.0 | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- |
| Capacitor | Capacitor 25 µF 450 VL | Capacitor -- | Capacitor 25 µF 450 VL | Capacitor 25 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller Technopolymer | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 25 | Minimum flow rate (l./min.) 25 | Minimum flow rate (l./min.) 25 | Minimum flow rate (l./min.) 25 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 275 | Max. flow rate (l./min.) 275 | Max. flow rate (l./min.) 275 | Max. flow rate (l./min.) 275 |
| Min. head (m.) | Min. head (m.) 9 | Min. head (m.) 9 | Min. head (m.) 9 | Min. head (m.) 9 |
| Max. head (m.) | Max. head (m.) 26 | Max. head (m.) 26 | Max. head (m.) 26 | Max. head (m.) 26 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up | Jobs drainage, drying up |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 33.7 | Height (cm) 33.7 | Height (cm) 33.7 | Height (cm) 33.7 |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) 18.8 | Weight (Kg) 17.7 | Weight (Kg) 18.8 | Weight (Kg) 18.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
