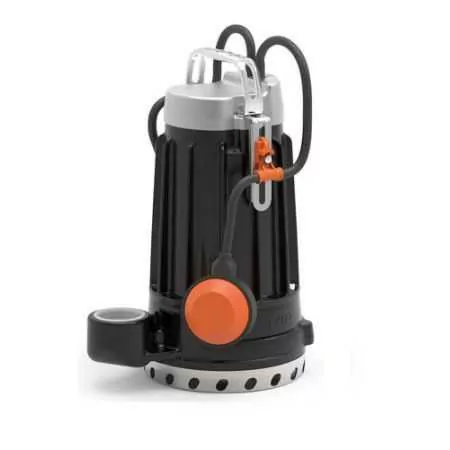

DCm 20 - Single-phase cast iron electric pump for clear water, 1 HP
Flow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor.
Variants:
Order it before 42 minutes and receive it between 30-12-2024 and 31-12-2024 with SDA - 2 giorni Italia
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
New version of the DC series completely designed and made even more reliable with the introduction of the double mechanical seal and the cataphoresis treatment of all cast iron parts.
The DC submersible pumps, built in cast iron of considerable thickness, exceptional strength, resistance to abrasion and durability over time, are recommended for draining clear or slightly dirty water.
They stand out for their robustness and reliability in fixed installations with automatic operation.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.7
- Capacitor
- 20 µF450 VL
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 25
- Max flow (l./min.)
- 250
- Min head (m.)
- 8
- Max head (m.)
- 20
- Cable length (m)
- 10
- Employments
- drainage, drying up, slightly dirty waters
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 32.2
- Weight kg)
- 17.2
- Guarantee
- 2
DCm models and performances
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the DC series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.2 - Suction cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 DCm 20 - Single-phase cast iron electric pump for clear water, 1 HPThis product Flow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor. |  DCm 10 - Single-phase cast iron electric pump for clear water, 1 HPFlow rate up to 300 l/min (18 m³/h). Head up to 15.5 m. 0.75 Kw (1 HP) motor. |  DCm 30 - Single-phase cast iron electric pump for clear water, 1.5 HPFlow rate up to 275 l/min (16.5 m³/h). Head up to 26 m. 1.1 Kw (1.5 HP) motor. | |
|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (HP) | Power (HP) 1 | Power (HP) 1 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.7 | Absorption at 230V (A) 4.7 | Absorption at 230V (A) 7.2 |
| Capacitor | Capacitor 20 µF450 VL | Capacitor 20 µF450 VL | Capacitor 25 µF450 VL |
| Delivery port | Delivery port 1 "1/2 | Delivery port 1 "1/2 | Delivery port 1 "1/2 |
| Body Pump | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron |
| Impeller | Impeller Technopolymer | Impeller Technopolymer | Impeller Technopolymer |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Motor shaft | Motor shaft AISI 431 stainless steel | Motor shaft AISI 431 stainless steel | Motor shaft AISI 431 stainless steel |
| Check valve | Check valve no | Check valve no | Check valve no |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 25 | Flow rate min. (l./min.) 25 | Flow rate min. (l./min.) 25 |
| Max flow (l./min.) | Max flow (l./min.) 250 | Max flow (l./min.) 300 | Max flow (l./min.) 275 |
| Min head (m.) | Min head (m.) 8 | Min head (m.) 3 | Min head (m.) 9 |
| Max head (m.) | Max head (m.) 20 | Max head (m.) 16 | Max head (m.) 26 |
| Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
| Employments | Employments drainage, drying up, slightly dirty waters | Employments drainage, drying up, slightly dirty waters | Employments drainage, drying up |
| Liquid temperature max. (° C) | Liquid temperature max. (° C) 40 | Liquid temperature max. (° C) 40 | Liquid temperature max. (° C) 40 |
| Height (cm) | Height (cm) 32.2 | Height (cm) 32.2 | Height (cm) 33.7 |
| Weight kg) | Weight kg) 17.2 | Weight kg) 17.2 | Weight kg) 18.8 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 |
