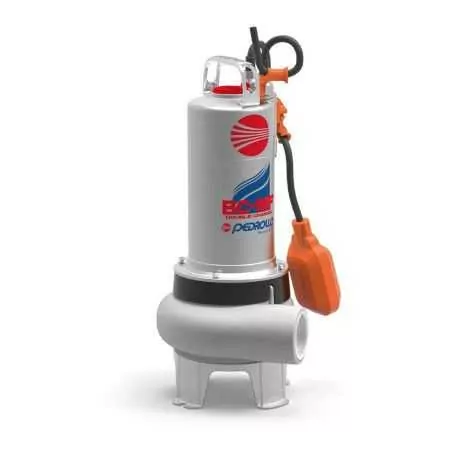

BC 15/50-MF - 1.5 HP three-phase DOUBLE-CHANNEL electric pump for waste water
Flow rate up to 750 l/min (45 m³/h). Head up to 14 m. 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
Description
The BC-MF submersible pumps are recommended for the drainage of dirty and sewage water in the domestic and civil sectors.
They are equipped with a DOUBLE-CHANNEL impeller which allows the pumping of liquids containing suspended solids up to Ø 50 mm in size with short fibres.
They are suitable for conveying waste water and sewage, waste water, surface water, water mixed with mud in uses such as: holiday homes, villas, single-family homes.
These pumps are distinguished by their reliability, especially in fixed installations with automatic operation.
Data sheet
- Motor connection
- THREE-PHASE
- Power (HP)
- 1.5
- Absorption at 400V (A)
- 3.2
- Delivery port
- 2"
- Body Pump
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 304 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 750
- Min head (m.)
- 2
- Cable length (m)
- 10
- Employments
- drainage, drying up, slightly dirty waters
- Liquid temperature max. (° C)
- +40°C
- Height (cm)
- 44.7
- Weight kg)
- 14.3
- Guarantee
- 2
BC-MF models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the BC 15/50-MF series
Bearings
| Pump side motor bearing | 6203 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4404 (AISI 316L) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
