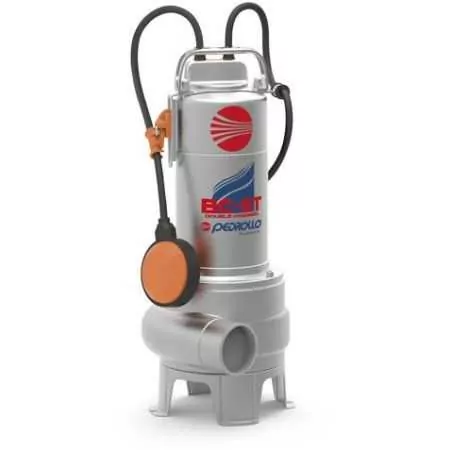

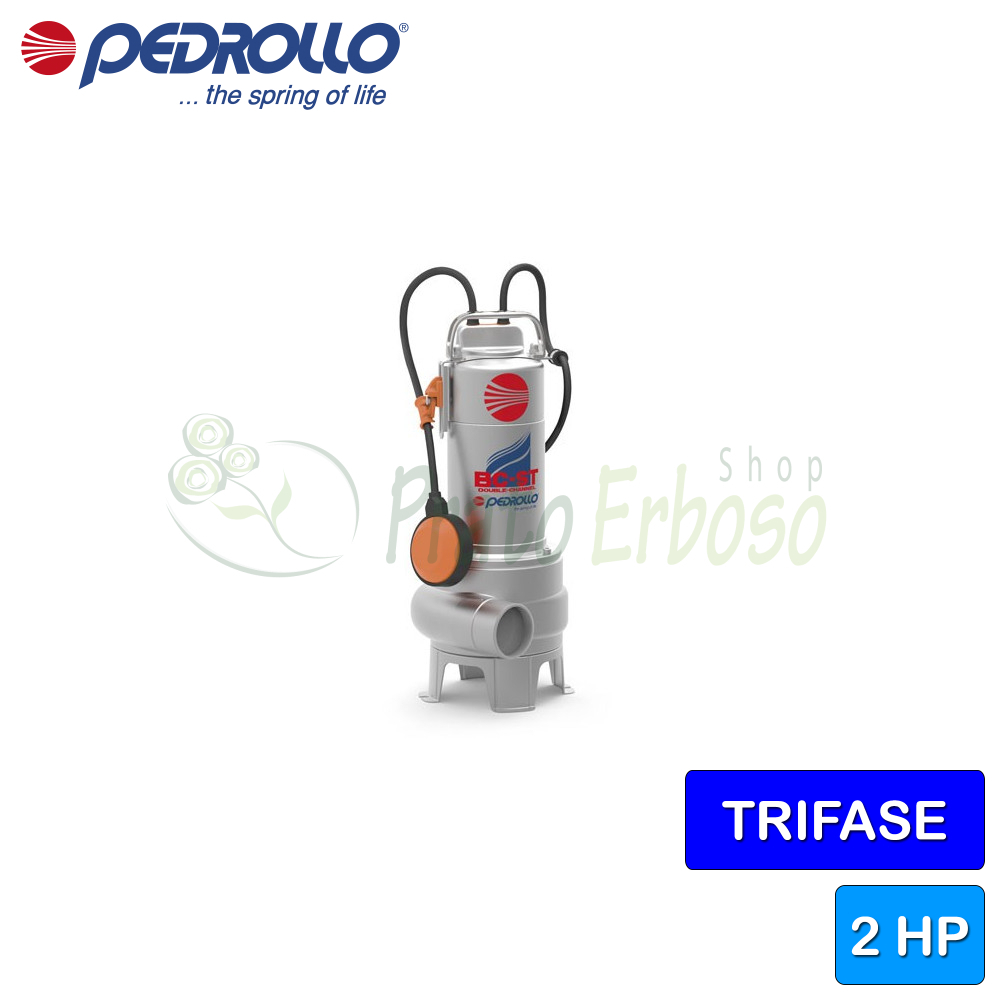

BC 20/50-ST - 2 HP three-phase, dual-channel sewage pump
Flow rate up to 850 l/min (50 m³/h). Head up to 17 m. 1.5 kW (2 HP) motor.
The BC 20/50-ST submersible electric pump from the BC-ST series by Pedrollo is made entirely of stainless steel.
Pedrollo 's use of AISI 304 and 431 stainless steel ensures particular resistance to corrosion and abrasion.
The geometry of the volute and impeller allows for excellent performance and high efficiency which translates into significant energy savings.
The twin-channel impeller of the BC 20/50-ST allows for excellent performance, higher pressure and the pumping of solids with a diameter of up to 50 millimetres.
It can be installed up to 5 meters below water level.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Current consumption at 400V (A)
- 3.2
- Delivery mouth
- 2"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 850
- Min. head (m.)
- 3
- Max. head (m.)
- 17
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 44.7
- Weight (Kg)
- 12.2
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 BC 20/50-ST - 2 HP three-phase, dual-channel sewage pumpThis product Flow rate up to 850 l/min (50 m³/h). Head up to 17 m. 1.5 kW (2 HP) motor. |  BC 10/50-ST - 1 HP three-phase, dual-channel sewage pumpFlow rate up to 600 l/min (36 m³/h). Head up to 12 m. 0.75 Kw (1 HP) motor. |  BC 15/50-ST - 1.5 HP three-phase DOUBLE-CHANNEL electric pump for waste waterFlow rate up to 750 l/min (45 m³/h). Head up to 15 m. 1.1 Kw (1.5 HP) motor. | |
|---|---|---|---|
| Price | Price €834.48 -42% €484.00 | Price €663.68 -42% €384.93 | Price €708.82 -42% €411.12 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 0.75 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 2 | Power (HP) 1 | Power (HP) 1.5 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 3.2 | Current consumption at 400V (A) 2.1 | Current consumption at 400V (A) 3.2 |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 2" | Delivery mouth 2" |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 850 | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 750 |
| Min. head (m.) | Min. head (m.) 3 | Min. head (m.) 2 | Min. head (m.) 2 |
| Max. head (m.) | Max. head (m.) 17 | Max. head (m.) 12 | Max. head (m.) 15 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 5 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 44.7 | Height (cm) 43.2 | Height (cm) 44.7 |
| Weight (Kg) | Weight (Kg) 12.2 | Weight (Kg) 11.2 | Weight (Kg) 12.2 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
