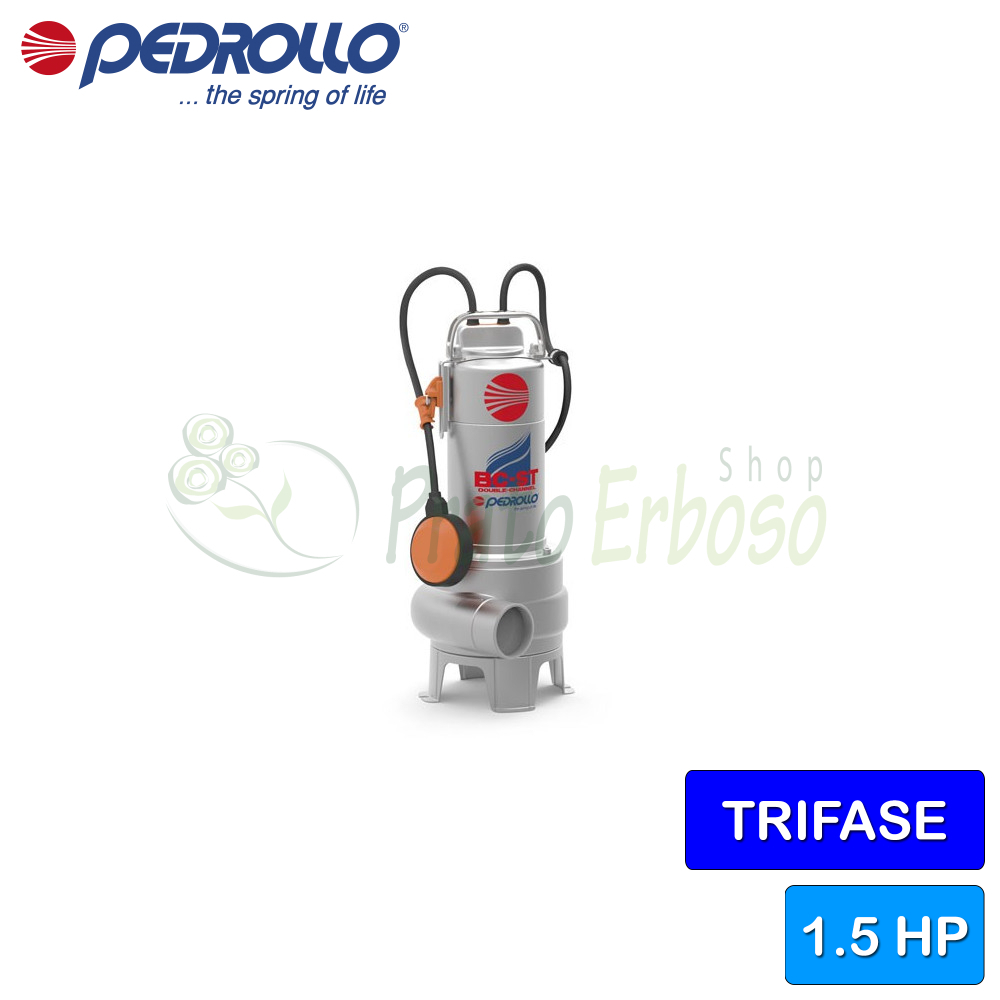

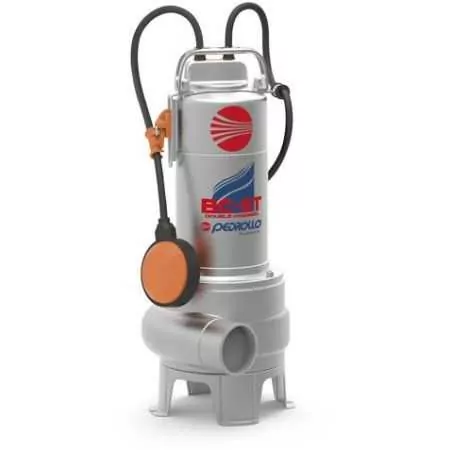

BC 15/50-ST - 1.5 HP three-phase DOUBLE-CHANNEL electric pump for waste water

Name: BC 15/50-ST - 1.5 HP three-phase DOUBLE-CHANNEL electric pump for waste water
Brand: Pedrollo
SKU: BC 15/50-ST
Price: 411.12 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 750 l/min (45 m³/h). Head up to 15 m. 1.1 Kw (1.5 HP) motor.

Variants:

Order it before 23:59 on Friday and receive it on Wednesday 12 November with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Wednesday 12 November - Thursday 13 November
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Wednesday 12 November
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Wednesday 12 November

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Wednesday 12 November

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The BC 15/50-ST submersible electric pump is built entirely of stainless steel and is characterised by particular resistance to corrosion and abrasion.

It is recommended for the drainage of dirty and sewage water in the domestic and civil sectors, for the conveyance of waste water and sewage, waste water, surface water, water mixed with mud in holiday homes, villas, single-family homes.

It is equipped with a double-channel impeller that allows the pumping of liquids containing suspended solids up to 50 millimetres in diameter with short fibres.

The hydraulic geometry of the conveying spiral and the dual-channel impeller is the result of a refined fluid-dynamic calculation that has allowed us to obtain excellent performance, a high efficiency that translates into significant energy savings.

The dual-channel impeller allows for excellent performance and high energy efficiency, developing greater pressure and ensuring the pumping of solids with a diameter of up to 50 millimetres. Certainly the best performing solution for wastewater drainage

These pumps are distinguished by their reliability, especially in fixed installations with automatic operation.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Current consumption at 400V (A): 3.2
Delivery mouth: 2"
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 750
Min. head (m.): 2
Max. head (m.): 15
Cable length (m.): 10
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): +40°C
Height (cm): 44.7
Weight (Kg): 12.2
Warranty (years): 2

Attachments

BC-ST Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo BC-ST pumps.

Download (1.39MB)

BC-ST Models and Performance

TYPE

three-phase

BC - 10/50-ST

BC - 15/50-ST

BC - 20/50-ST

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2

PERFORMANCES
Q liters/min	H meters
50 ÷ 600	11 ÷ 2
50 ÷ 750	14 ÷ 2
50 ÷ 850	17 ÷ 3

MOUTH

mand.

SOLID BODIES

Ø 50

Q	m³/hour	0	3	6	12	18	24	30	36	42	45	51
Q	l/min	0	50	100	200	300	400	500	600	700	750	850
H	meters	12	11	10	8.5	7	5	3.6	2
		15	14	13	11.5	9.7	8	6.3	4.6	2.9	2
		17	16	15.3	13.5	12	10.3	8.6	7	5.3	4.5	3

Construction data of the BC 15/50-ST

Bearings

Pump side motor bearing	6203 2RS - C3
Opposite side engine bearing	6203 ZZ

Tree holding

Type of seal	Double mechanical seal in oil chamber
Engine side model	MG1-14D SIC
LM diameter	14
LM fixed ring	Silicon carbide
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	MG1-14D SIC
LP diameter	14
LP fixed ring	Silicon carbide
LP rotating ring	Silicon carbide
LP elastomer	NBR

Materials

1.0 - Pump body	Stainless steel EN 1.4301 (AISI 304)
1.4 - Basic	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Stainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Stainless steel EN 1.4301 (AISI 304)
7.0 - Lantern	Cast iron GJL 200 EN 1561
