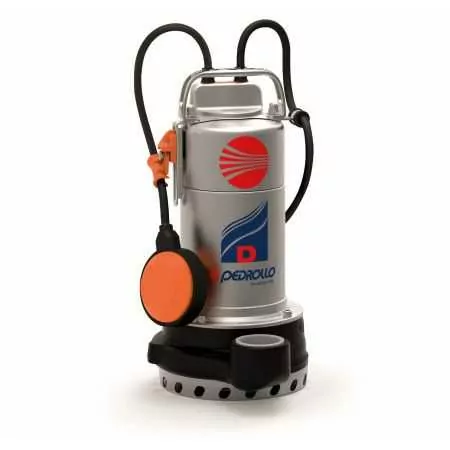

Dm 20 (5m) - 1 HP single-phase clear water electric pump

Name: Dm 20 (5m) - 1 HP single-phase clear water electric pump
Brand: Pedrollo
SKU: Dm 20 5MT
Price: 266.77 EUR
Availability: InStock

Flow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor. 5 meters of cable with shuko plug.

Variants:

Order it before 23:59 on Friday and receive it on Wednesday 12 November with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Wednesday 12 November - Thursday 13 November
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Wednesday 12 November
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Wednesday 12 November

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Wednesday 12 November

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

Designed for the drainage of clear or slightly dirty water, it is recommended for domestic, civil and professional use for the drainage of flooded areas such as basements, garages, for emptying swimming pools and tanks, for the disposal of non-filthy waste water.

This pump stands out for its reliability, especially in fixed installations with automatic operation.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 5.7
Capacitor: 20 µF 450 VL
Delivery mouth: 1" 1/2
Pump body: Cast iron
Impeller: Technopolymer
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 25
Max. flow rate (l./min.): 250
Min. head (m.): 8
Max. head (m.): 20
Cable length (m.): 5
Jobs: drainage, drying up
Max. liquid temperature (°C): +40°C
Height (cm): 34.4
Weight (Kg): 12.9
Warranty (years): 2

Attachments

Data sheet D

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo D series pumps.

Download (644.49KB)

Models and performances Dm

GUY

single phase

Dm 8

Dm 10

Dm 20

DM 30

POWER
KW	HP
0.55	0.75
0.75	1
0.75	1
1.1	1.5

PERFORMANCE
Q litres/min	H meters
25 ÷ 250	13 ÷ 3
25 ÷ 300	16 ÷ 3
25 ÷ 250	20 ÷ 8
25 ÷ 275	26 ÷ 9

MOUTH

send.

1 1/2"

Q	m³/hour	0	1.5	3.0	4.5	6.0	7.5	9.0	10.5	12.0	13.2	15.0	16.5	18.0
Q	l/min	0	25	50	75	100	125	150	175	200	220	250	275	300
H	meters	13	12.5	12	11	10	9	8	7	6	4.7	3
		16	15.5	15	14	13.2	12.2	11.2	10	8.8	7.8	6	4.5	3
		20	19	18.5	17.5	16.5	15.5	14.3	13	11.5	10	8
		26	26	25	23.5	22	20.5	18.7	17	15	13.5	11	9

Construction data of the D series

Bearings

Pump side motor bearing	6203 ZZ
Opposite side engine bearing	6203 ZZ

Tree holding

Type of seal	Double mechanical seal in oil chamber
LM diameter	14
LM fixed ring	Silicon carbide
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	MG1-14D SIC
LP diameter	14
LP fixed ring	Silicon carbide
LP rotating ring	Silicon carbide
LP elastomer	NBR

Materials

1.0 - Pump body	Cast iron GJL 200 EN 1561
2.2 - Suction cover	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Stainless steel EN 1.4301 (AISI 304)
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)

Compare with Similar Products

	Dm 20 (5m) - 1 HP single-phase clear water electric pump This product Flow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor. 5 meters of cable with shuko plug.	Dm 8 (5m) - Single-phase 0.75 HP clear water electric pump Quick View Flow rate up to 250 l/min (15 m³/h). Head up to 13 m. 0.55 Kw (0.75 HP) motor. 5 meters of cable with shuko plug.	Dm 10 (5m) - 1 HP single-phase clear water electric pump Quick View Flow rate up to 300 l/min (18 m³/h). Head up to 16 m. 0.75 Kw (1 HP) motor. 5 meters of cable with shuko plug.	Dm 30 - 1.5 HP single-phase clear water electric pump Quick View Flow rate up to 275 l/min (16.5 m³/h). Head up to 26 m. 1.1 Kw (1.5 HP) motor.
Price	Price €459.94 -42% €266.77	Price €442.86 -42% €256.86	Price €452.62 -42% €262.52	Price €559.98 -42% €324.79
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (Kw)	Power (Kw) 0.75	Power (Kw) 0.55	Power (Kw) 0.75	Power (Kw) --
Power (HP)	Power (HP) 1	Power (HP) 0.75	Power (HP) 1	Power (HP) 1.5
Absorption at 230V (A)	Absorption at 230V (A) 5.7	Absorption at 230V (A) 3.2	Absorption at 230V (A) 4.7	Absorption at 230V (A) 7.2
Capacitor	Capacitor 20 µF 450 VL	Capacitor 20 µF 450 VL	Capacitor 20 µF 450 VL	Capacitor 25 µF 450 VL
Delivery mouth	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2
Pump body	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron
Impeller	Impeller Technopolymer	Impeller Technopolymer	Impeller Technopolymer	Impeller Technopolymer
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 25	Minimum flow rate (l./min.) 25	Minimum flow rate (l./min.) 25	Minimum flow rate (l./min.) 25
Max. flow rate (l./min.)	Max. flow rate (l./min.) 250	Max. flow rate (l./min.) 250	Max. flow rate (l./min.) 300	Max. flow rate (l./min.) 275
Min. head (m.)	Min. head (m.) 8	Min. head (m.) 3	Min. head (m.) 3	Min. head (m.) 9
Max. head (m.)	Max. head (m.) 20	Max. head (m.) 13	Max. head (m.) 16	Max. head (m.) 26
Cable length (m.)	Cable length (m.) 5	Cable length (m.) 5	Cable length (m.) 5	Cable length (m.) 10
Jobs	Jobs drainage, drying up	Jobs drainage, drying up	Jobs drainage, drying up	Jobs drainage, drying up
Max. liquid temperature (°C)	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C
Height (cm)	Height (cm) 34.4	Height (cm) 34.4	Height (cm) 34.4	Height (cm) 35.5
Weight (Kg)	Weight (Kg) 12.9	Weight (Kg) 12	Weight (Kg) 12.9	Weight (Kg) 15.1
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
