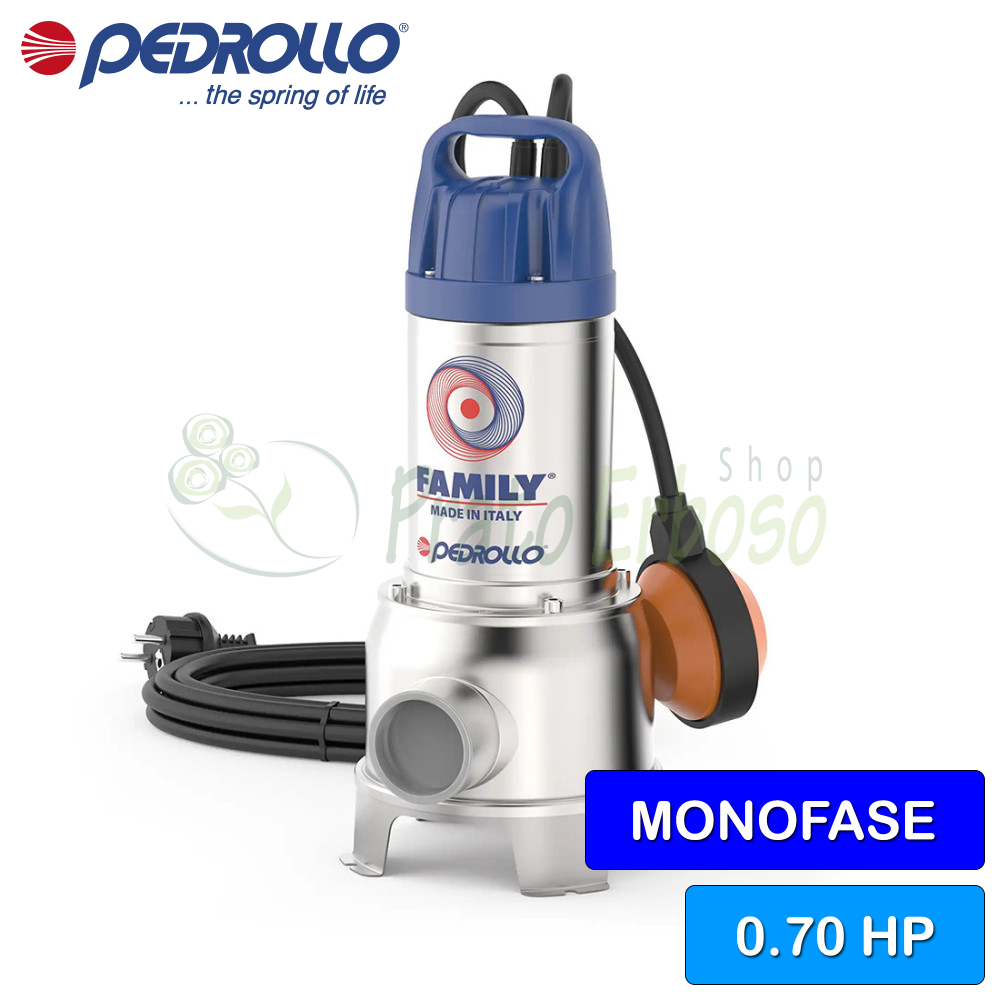

FAMILY-GM - 0.70 HP single-phase submersible electric pump
Flow rate up to 250 l/min (15 m³/h). Head up to 10 m. 0.50 Kw (0.70 HP) motor.
WITH MAGNETIC FLOAT.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 13 August - Friday 14 August |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 13 August - Friday 14 August |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 August - Friday 14 August
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 13 August - Friday 14 August
The FAMILY-GM electric pump is recommended for draining wastewater. It is suitable for domestic use.
A special feature of this pump is its ability to evacuate dirty water, even in the presence of suspended solids up to 30 millimetres in diameter.
The FAMILY-GM has a flow rate ranging from 10 to 250 litres per minute with a head of 1 to 10 metres.
This pump can be installed up to 5 meters below the water level with an appropriately long power cable. For continuous operation, it must be submerged at least 160 mm below the water level.
The temperature of the liquid up to 40 centigrade.
The FAMILY-GM is equipped with a 5-meter power cable, a float switch and a hose holder.
The pump is made of stainless steel which guarantees good strength and resistance to the product.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.70
- Absorption at 230V (A)
- 3.0
- Delivery mouth
- 1" 1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 250
- Min. head (m.)
- 1
- Max. head (m.)
- 10
- Jobs
- slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V
- Height (cm)
- 33.3
- Width (cm)
- 16.3
- Depth (cm)
- 14.0
- Weight (Kg)
- 7.0
- Warranty (years)
- 2
-
- -42%
€208.03 tax incl. €358.68
