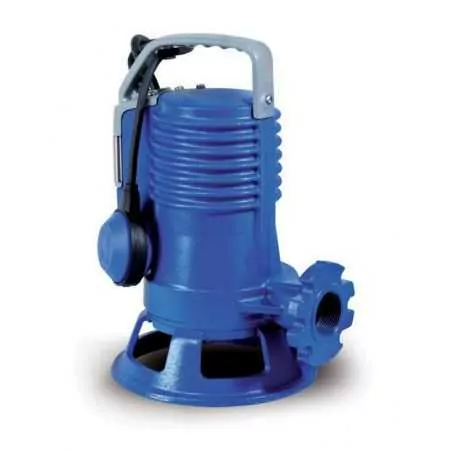

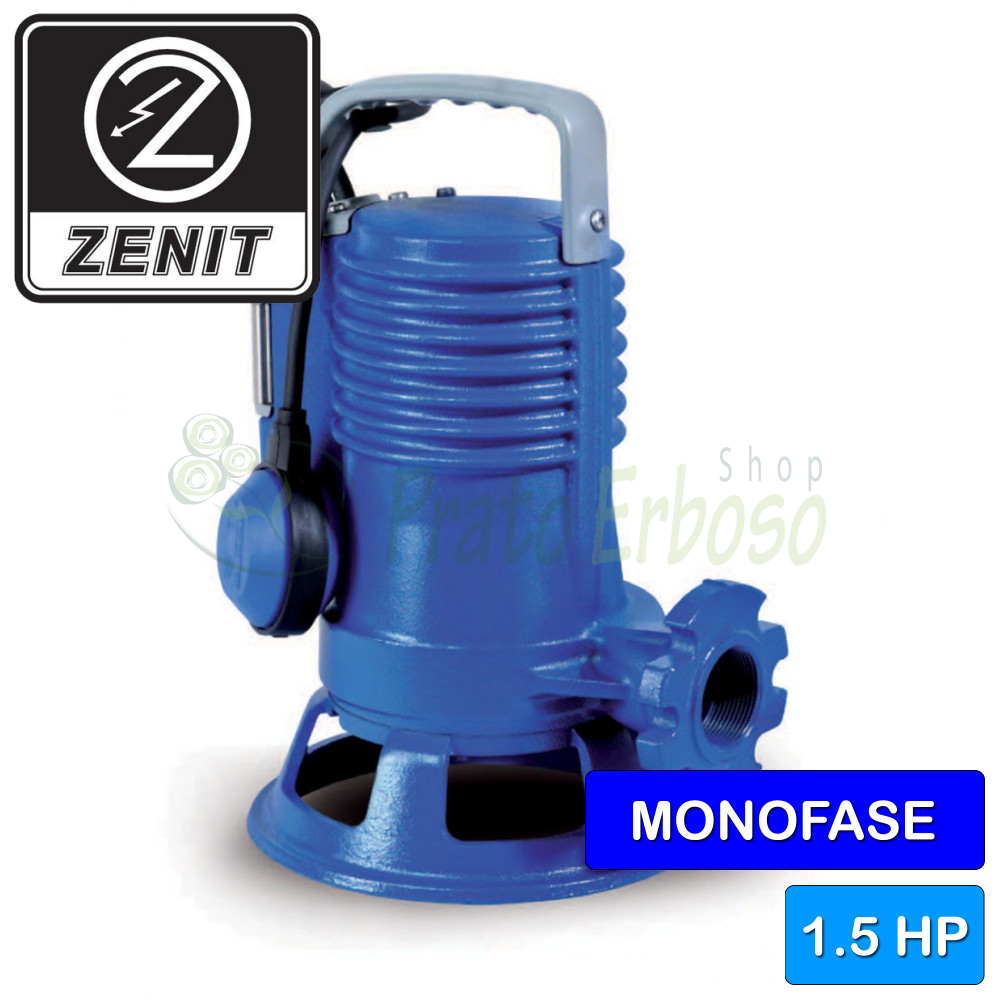

150/2/G40H A1CMG - Electric chopper single phase
Flow rate up to 300 l/min (18 m3/h). Head up to 21 m. Motor 1.1 Kw (1.5 HP). With the float.
Electric pump, submersible chopper series GR bluePRO 150/2/G40H A1CM is indicated in the presence of bodies of filamentous or fibrous, and in the general sewer waste source shall not grilled.
It is used where you require high performance or heavy-duty operation and extended within the home, and professional.
All the components are designed to allow a high degree of reliability and maintenance operations simple and quick.
Each model is subjected to a pressure test to ensure the perfect installation and operation of seals, cable gland and mechanical seals.
The structure of cast iron and the double mechanical seal in oil makes this pump rugged and reliable, and allow the use also heavy duty in lifting waste water grilled or offices, with solid bodies and fibres in domestic installations and in residential or small commercial systems.
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1.5
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- Cast iron
- Motor shaft
- AISI 420 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 30
- Max flow (l./min.)
- 300
- Min head (m.)
- 3
- Max head (m.)
- 21
- Cable length (m)
- 5
- Weight kg)
- 24.0
- Guarantee
- 2
Handle
Ergonomic handle designed for optimal grip. Shape designed for housing a lifting shackle that allows the electric pump to remain stable during its handling. Float stroke adjustment system to modify the start-stop levels.
Cable gland
Innovative cable gland with anti-tear system and double O-ring to guarantee maximum tightness. Easy extraction to facilitate maintenance.
Capacitor
Single-phase models with integrated capacitor.
Carcass
The construction in EN-GJL-250 cast iron guarantees solidity and durability even in the case of maintenance interventions that require the extraction and insertion of the motor.
Pressure test
Engine compartment closing screw for pressure tests to which each model is subjected.
Mechanical and V-Ring seals
Two mechanical seals in silicon carbide (2Sic), both installed in the oil chamber. The V-Ring in direct contact with the liquid protects the mechanical seals from foreign bodies, preserving their correct functioning.
