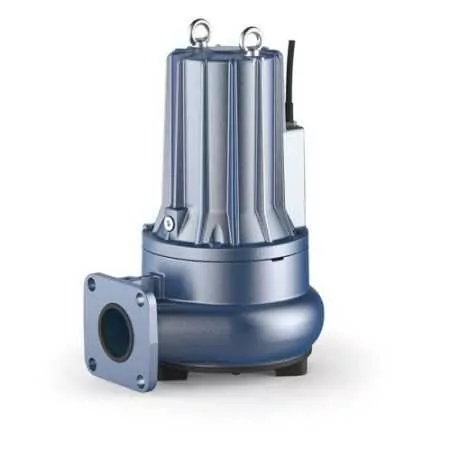

MCm 20/50-F - 2 HP single-phase DOUBLE-CHANNEL electric pump for waste water

Name: MCm 20/50-F - 2 HP single-phase DOUBLE-CHANNEL electric pump for waste water
Brand: Pedrollo
SKU: MCm 20/50-F
Price: 768.97 EUR
Availability: InStock

Flow rate up to 900 l/min (54 m³/h). Head up to 18 m. 1.5 Kw (2 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

Description

The PMC electric pump, built in cast iron of considerable thickness, exceptional strength and resistance to abrasion, is equipped with a DOUBLE-CHANNEL impeller in stainless steel which allows the drainage of liquids with the presence of suspended solid parts, with short fibres.

It is suitable for conveying waste water and sewage, waste water, water mixed with sludge, groundwater and surface water from uses such as: condominiums, public buildings, industries, multi-storey car parks, underground car parks, washing areas, into special wells.

Data sheet

Motor connection: SINGLE PHASE
Power (HP): 2
Absorption at 230V (A): 10.5
Capacitor: 50 µF450 VL
Delivery port: 2 "1/2
Body Pump: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Motor shaft: AISI 431 stainless steel
Check valve: no
Degree of protection: IP 68
Flow rate min. (l./min.): 100
Max flow (l./min.): 900
Min head (m.): 1
Max head (m.): 18
Cable length (m): 10
Employments: drainage, drying up, slightly dirty waters
Liquid temperature max. (° C): 40
Height (cm): 44.2
Weight kg): 38.4
Guarantee: 2

Attachments

Technical sheet MC-F

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo MC-F series pumps.

Download (782.35KB)

MCm-F models and performances

GUY

single phase

MCm 15/50-F

MCm 20/50-F

MCm 30/50-F

MCm 30/65-F

POWER
KW	HP
1.1	1.5
1.5	2
2.2	3
2.2	3

PERFORMANCE
Q litres/min	H meters
100 ÷ 800	16 ÷ 1
100 ÷ 900	18 ÷ 1
100 ÷ 1100	24 ÷ 2
200 ÷ 1500	13 ÷ 2

RIDE

solid bodies
mm

Ø 50

Ø 70

Q	m³/hour	0	6	12	18	24	30	36	42	48	54	60	66	72	90	96
Q	l/min	0	100	200	300	400	500	600	700	800	900	1000	1100	1200	1500	1600
H	meters	16	14	12.5	10.5	8.5	6.5	4.5	3	1
		18	16	14	12.5	10.5	8.5	6.5	5	3	1
		24	22	20	18	16	14	12	10	8	6	4	2
		13	-	12	11	10.5	9.7	9	8	7.5	6.5	6	5	4.5	2

Construction data of the MC-F series

Compare with Similar Products

	MCm 20/50-F - 2 HP single-phase DOUBLE-CHANNEL electric pump for waste water This product Flow rate up to 900 l/min (54 m³/h). Head up to 18 m. 1.5 Kw (2 HP) motor.	MCm 15/50-F - 1.5 HP single-phase DOUBLE-CHANNEL electric pump for waste water Quick View Flow rate up to 800 l/min (48 m³/h). Head up to 16 m. 1.1 Kw (1.5 HP) motor.	MCm 30/50-F - 3 HP single-phase DOUBLE-CHANNEL electric pump for waste water Quick View Flow rate up to 1100 l/min (66 m³/h). Head up to 24 m. 2.2 Kw (3 HP) motor.	MCm 30/65-F - 3 HP single-phase DOUBLE-CHANNEL electric pump for waste water Quick View Flow rate up to 1600 l/min (96 m³/h). Head up to 13 m. 2.2 Kw (3 HP) motor.
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (HP)	Power (HP) 2	Power (HP) 1.5	Power (HP) 3	Power (HP) 3
Absorption at 230V (A)	Absorption at 230V (A) 10.5	Absorption at 230V (A) 9.0	Absorption at 230V (A) 15.2	Absorption at 230V (A) 15.2
Capacitor	Capacitor 50 µF450 VL	Capacitor 31.5 µF450 VL	Capacitor 60 µF450 VL	Capacitor 60 µF450 VL
Delivery port	Delivery port 2 "1/2	Delivery port 2 "1/2	Delivery port 2 "1/2	Delivery port 3 "
Body Pump	Body Pump Cast iron	Body Pump Cast iron	Body Pump Cast iron	Body Pump Cast iron
Impeller	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Motor shaft	Motor shaft AISI 431 stainless steel	Motor shaft AISI 431 stainless steel	Motor shaft AISI 431 stainless steel	Motor shaft AISI 431 stainless steel
Check valve	Check valve no	Check valve no	Check valve no	Check valve no
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Flow rate min. (l./min.)	Flow rate min. (l./min.) 100	Flow rate min. (l./min.) 100	Flow rate min. (l./min.) 100	Flow rate min. (l./min.) 200
Max flow (l./min.)	Max flow (l./min.) 900	Max flow (l./min.) 800	Max flow (l./min.) 1100	Max flow (l./min.) 1500
Min head (m.)	Min head (m.) 1	Min head (m.) 1	Min head (m.) 2	Min head (m.) 2
Max head (m.)	Max head (m.) 18	Max head (m.) 16	Max head (m.) 24	Max head (m.) 13
Cable length (m)	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10
Employments	Employments drainage, drying up, slightly dirty waters	Employments drainage, drying up, slightly dirty waters	Employments drainage, drying up, slightly dirty waters	Employments drainage, drying up, slightly dirty waters
Liquid temperature max. (° C)	Liquid temperature max. (° C) 40	Liquid temperature max. (° C) 40	Liquid temperature max. (° C) 40	Liquid temperature max. (° C) 40
Height (cm)	Height (cm) 44.2	Height (cm) 44.2	Height (cm) 45.7	Height (cm) 47.2
Weight kg)	Weight kg) 38.4	Weight kg) 37.4	Weight kg) 42.4	Weight kg) 47.4
Guarantee	Guarantee 2	Guarantee 2	Guarantee 2	Guarantee 2
