MC 15/50 1.5 HP three-phase, twin-channel electric sewage pumps
Flow rate up to 800 l/min (48 m³/h). Head up to 16 m. 1.1 kW (1.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 24 February - Wednesday 25 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 27 February - Monday 2 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 24 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Tuesday 24 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 27 February - Monday 2 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Tuesday 24 February

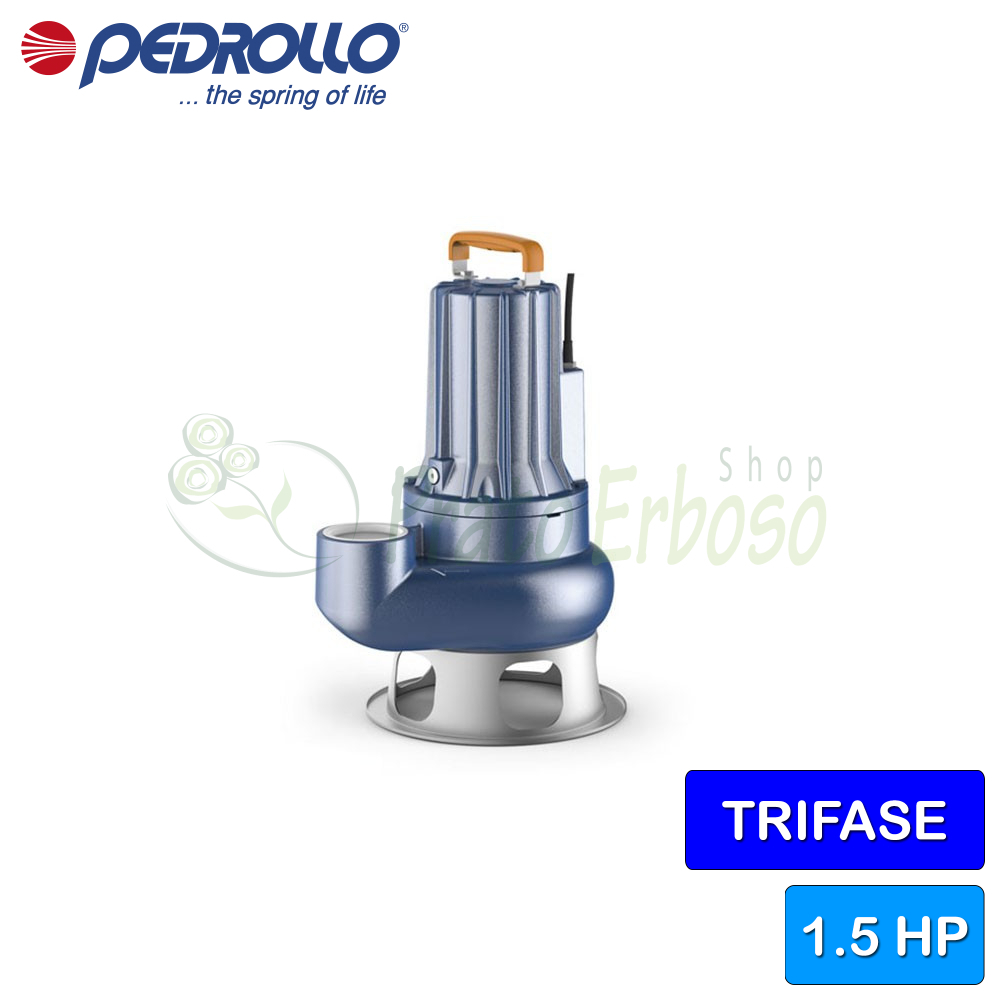

The MC 15/50 submersible electric pump from Pedrollo 's MC series is the right choice when looking for a reliable product.
The dual-channel impeller allows the drainage of liquids containing suspended solids with a maximum diameter of 50 millimetres.
Suitable for conveying waste water and sewage, waste water, water mixed with sludge, groundwater and surface water.
It can be installed up to 10 meters below the water level. For continuous operation, it requires a depth of 320 mm.
The supplied cable is 10 meters long.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3.4
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 1
- Max. head (m.)
- 16
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 48.7
- Weight (Kg)
- 40.5
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
Compare with Similar Products
 MC 15/50 1.5 HP three-phase, twin-channel electric sewage pumpsThis product Flow rate up to 800 l/min (48 m³/h). Head up to 16 m. 1.1 kW (1.5 HP) motor. |  MC 20/50 - 2 HP three-phase, dual-channel sewage pumpsFlow rate up to 900 l/min (54 m³/h). Head up to 18 m. 1.5 kW (2 HP) motor. |  MC 30/50 - 3 HP three-phase, dual-channel sewage pumpsFlow rate up to 1100 l/min (66 m³/h). Head up to 24 m. 2.2 Kw (3 HP) motor. |  MC 40/50 - 2 HP three-phase, dual-channel sewage pumpsFlow rate up to 1100 l/min (66 m³/h). Head up to 25 m. 3 kW (4 HP) motor. | |
|---|---|---|---|---|
| Price | Price €1,311.50 -42% €760.67 | Price €1,337.12 -42% €775.53 | Price €1,362.74 -42% €790.39 | Price €1,550.62 -42% €899.36 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 1.5 | Power (Kw) 2.2 | Power (Kw) 3 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 2 | Power (HP) 3 | Power (HP) 4 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 3.4 | Current consumption at 400V (A) 3.7 | Current consumption at 400V (A) 5 | Current consumption at 400V (A) 6.2 |
| Capacitor | Capacitor -- | Capacitor -- | Capacitor 60 µF 450 VL | Capacitor -- |
| Delivery mouth | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 900 | Max. flow rate (l./min.) 1100 | Max. flow rate (l./min.) 1100 |
| Min. head (m.) | Min. head (m.) 1 | Min. head (m.) 1 | Min. head (m.) 2 | Min. head (m.) 4 |
| Max. head (m.) | Max. head (m.) 16 | Max. head (m.) 18 | Max. head (m.) 24 | Max. head (m.) 25 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 48.7 | Height (cm) 48.7 | Height (cm) 48.7 | Height (cm) 51.3 |
| Weight (Kg) | Weight (Kg) 40.5 | Weight (Kg) 42 | Weight (Kg) 43 | Weight (Kg) 48 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
