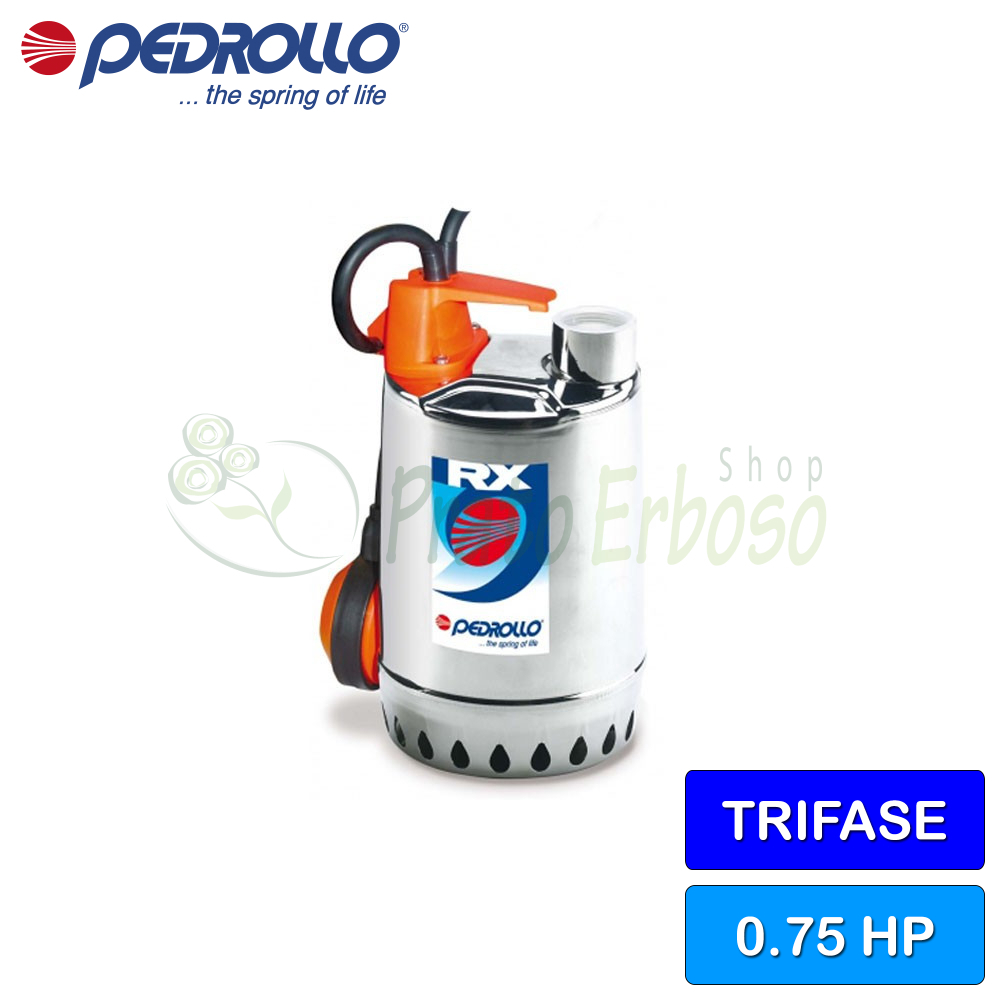

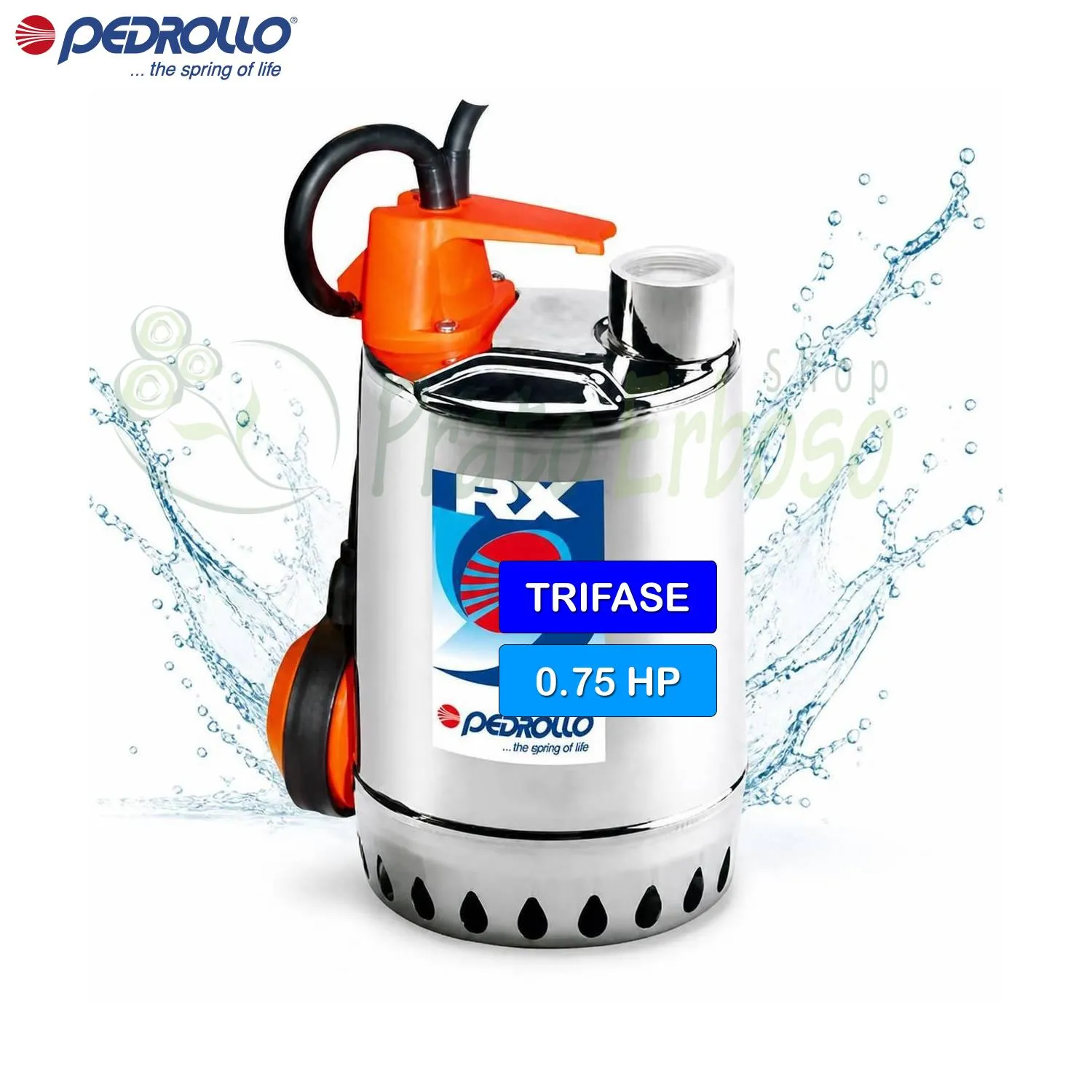

RX 3 (10m) - 0.75 HP three-phase clear water pump
Flow rate up to 220 l/min (13.2 m³/h). Head up to 12.3 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
RX pumps are suitable for drainage of clear water without abrasive particles.
The construction solutions employed guarantee ease of use and operational safety thanks to the total cooling of the motor and the double seal on the shaft.
They are recommended for fixed installations, emergency draining of small flooded areas (rooms, basements, garages), disposal of domestic waste water from dishwashers and washing machines, emptying collection pits.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 400V (A)
- 1.6
- Delivery mouth
- 1 "1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 220
- Min. head (m.)
- 3.5
- Max. head (m.)
- 12.3
- Cable length (m)
- 10
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 29.8
- Width (cm)
- 14.7
- Weight (Kg)
- 7.0
- Warranty (years)
- 2
RX models and performance
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the RX1
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 RX 3 (10m) - 0.75 HP three-phase clear water pumpThis product Flow rate up to 220 l/min (13.2 m³/h). Head up to 12.3 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable. |  RX 1 (10m) - 0.33 HP three-phase clear water pumpFlow rate up to 160 l/min (9.6 m³/h). Head up to 7.7 m. 0.25 Kw (0.33 HP) motor. 10 meters of cable. |  RX 2 (10m) - 0.50 HP three-phase clear water pumpFlow rate up to 190 l/min (13.2 m³/h). Head up to 9.5 m. 10.3 Kw (0.50 HP) motor. 10 meters of cable. |  RX 4 - 1 HP three-phase clear water pumpFlow rate up to 270 l/min (15.6 m³/h). Head up to 16 m. 0.75 Kw (1 HP) motor. WITHOUT FLOAT | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.25 | Power (Kw) 0.37 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 0.33 | Power (HP) 0.50 | Power (HP) 1 |
| Absorption at 400V (A) | Absorption at 400V (A) 1.6 | Absorption at 400V (A) 0.9 | Absorption at 400V (A) 1.0 | Absorption at 400V (A) 2.1 |
| Delivery mouth | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/2 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 20 | Min. flow rate (l./min.) 20 | Min. flow rate (l./min.) 20 | Min. flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 220 | Max. flow rate (l./min.) 160 | Max. flow rate (l./min.) 190 | Max. flow rate (l./min.) 270 |
| Min. head (m.) | Min. head (m.) 3.5 | Min. head (m.) 2 | Min. head (m.) 2.8 | Min. head (m.) 4.2 |
| Max. head (m.) | Max. head (m.) 12.3 | Max. head (m.) 7.7 | Max. head (m.) 10.3 | Max. head (m.) 16 |
| Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
| Jobs | Jobs drainage, drying up | Jobs drainage, drying up | Jobs drainage, drying up | Jobs drainage, drying up |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 |
| Height (cm) | Height (cm) 29.8 | Height (cm) 26.9 | Height (cm) 26.9 | Height (cm) 37 |
| Width (cm) | Width (cm) 14.7 | Width (cm) 14.7 | Width (cm) 14.7 | Width (cm) 22 |
| Weight (Kg) | Weight (Kg) 7.0 | Weight (Kg) 5.5 | Weight (Kg) 5.6 | Weight (Kg) 13.3 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
