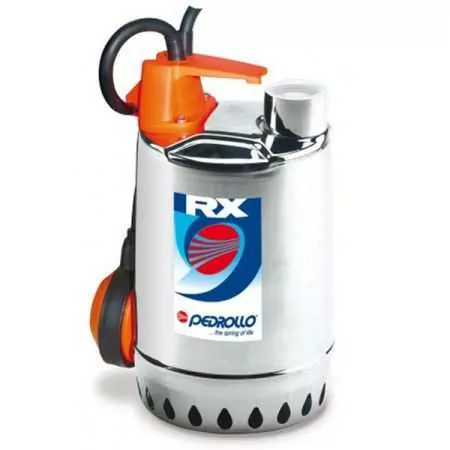

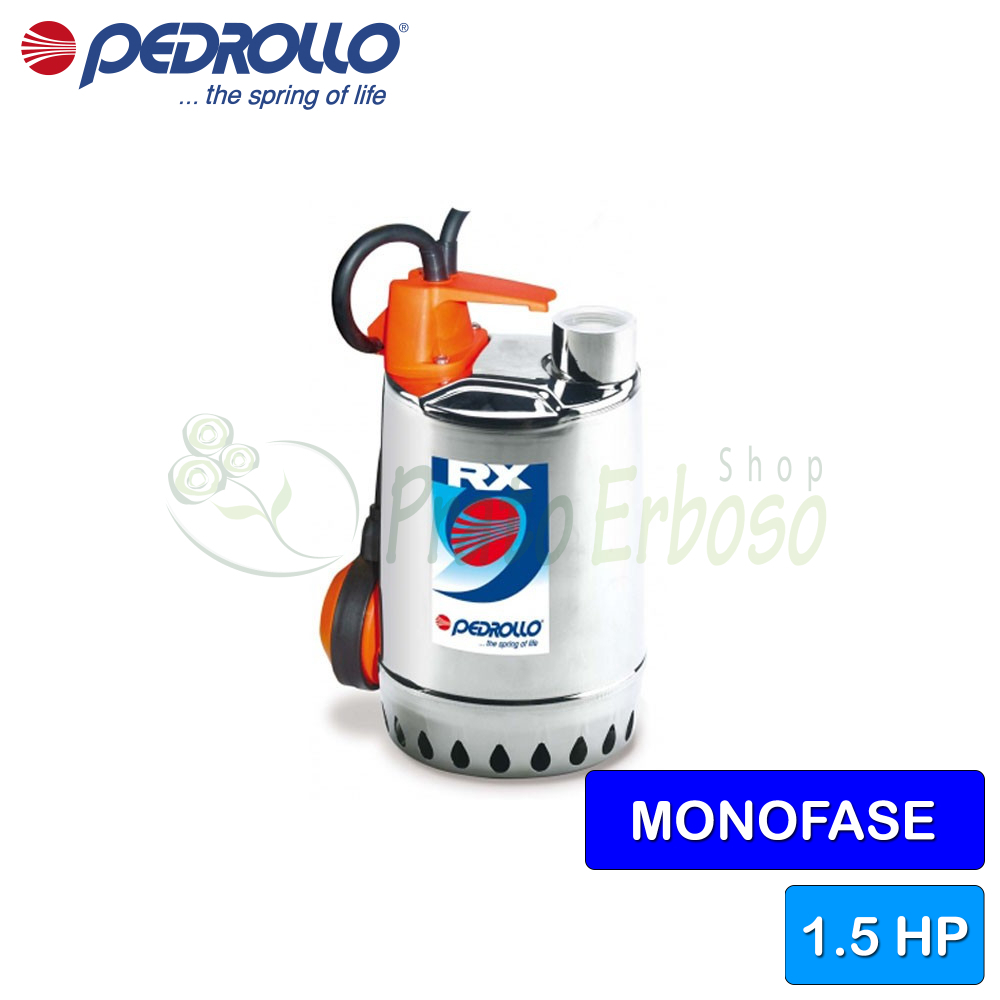

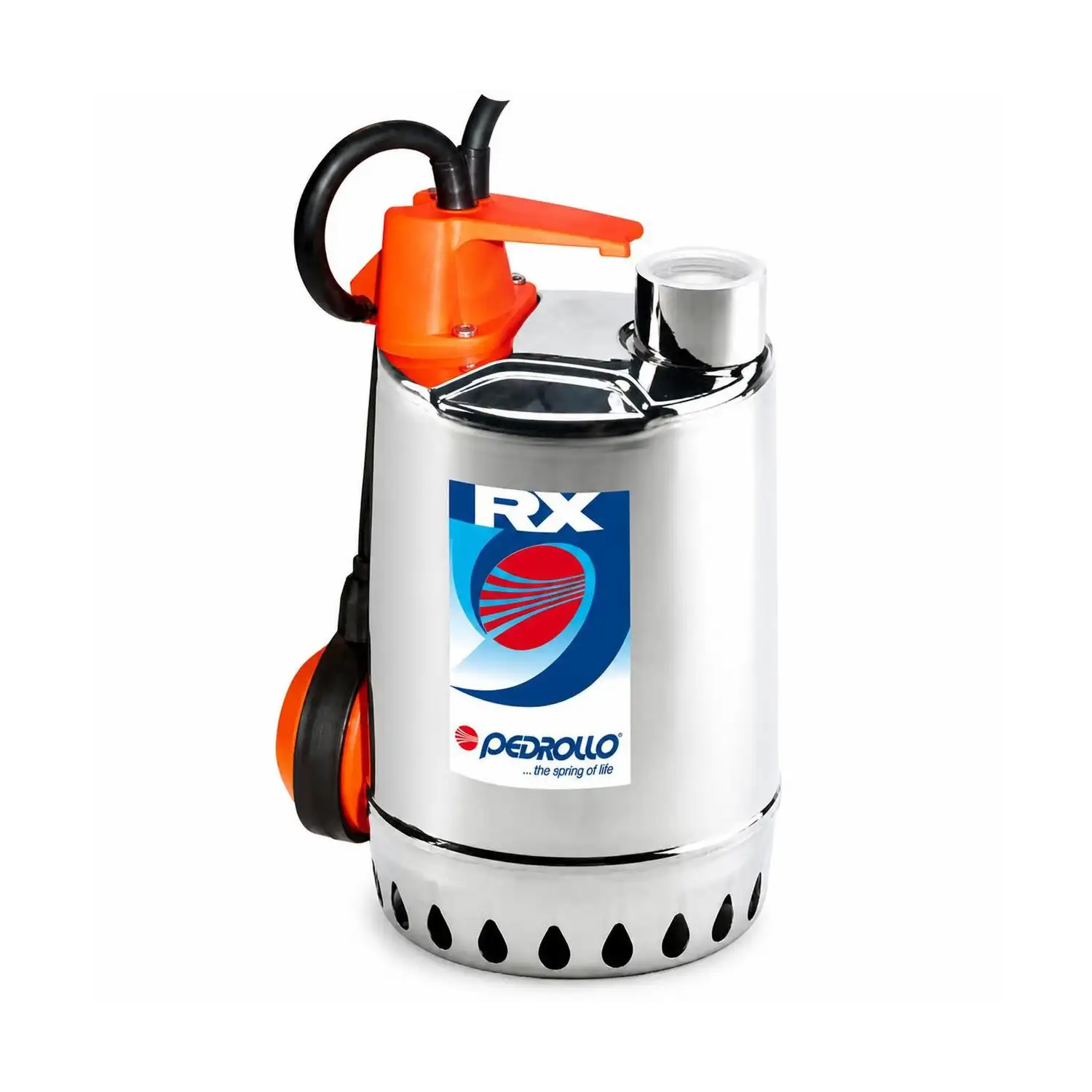

RXm 5 - 1.5 HP single-phase clear water pump
Flow rate up to 320 l/min (18 m³/h). Head up to 20.5 m. 1.1 kW (1.5 HP) motor. 10-meter cable with Schuko plug.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The RXm 5 submersible electric pump from the RX series by Pedrollo guarantees ease of use and operational safety.
Suitable for draining clear water, it allows the passage of solid bodies up to 10 millimetres in diameter.
Recommended for civil and domestic installations, the RXm 5 is suitable for fixed installations, emergency drainage of small flooded rooms, disposal of domestic waste water from dishwashers and washing machines, emptying collection pits.
It can be installed up to 10 meters below water level with an appropriate length of cable.
Made entirely of stainless steel, Pedrollo has created a solid, robust product that guarantees a long operating life.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 7.5
- Capacitor
- 25 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 320
- Min. head (m.)
- 5
- Max. head (m.)
- 20.5
- Cable length (m.)
- 10
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 37
- Width (cm)
- 22
- Weight (Kg)
- 15.4
- Warranty (years)
- 2
RXm models and performance
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the RX4
Bearings
| Pump side motor bearing | 6203 ZZ - C3E |
| Opposite side engine bearing | 6203 ZZ - C3E |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
