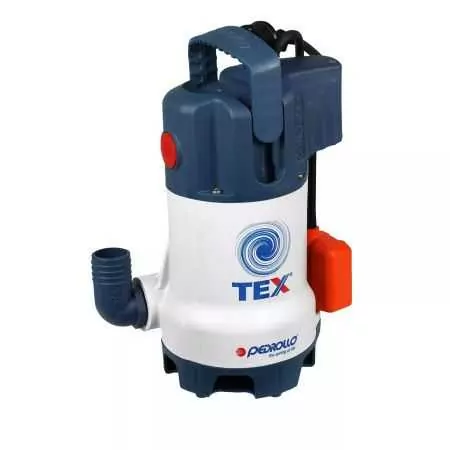

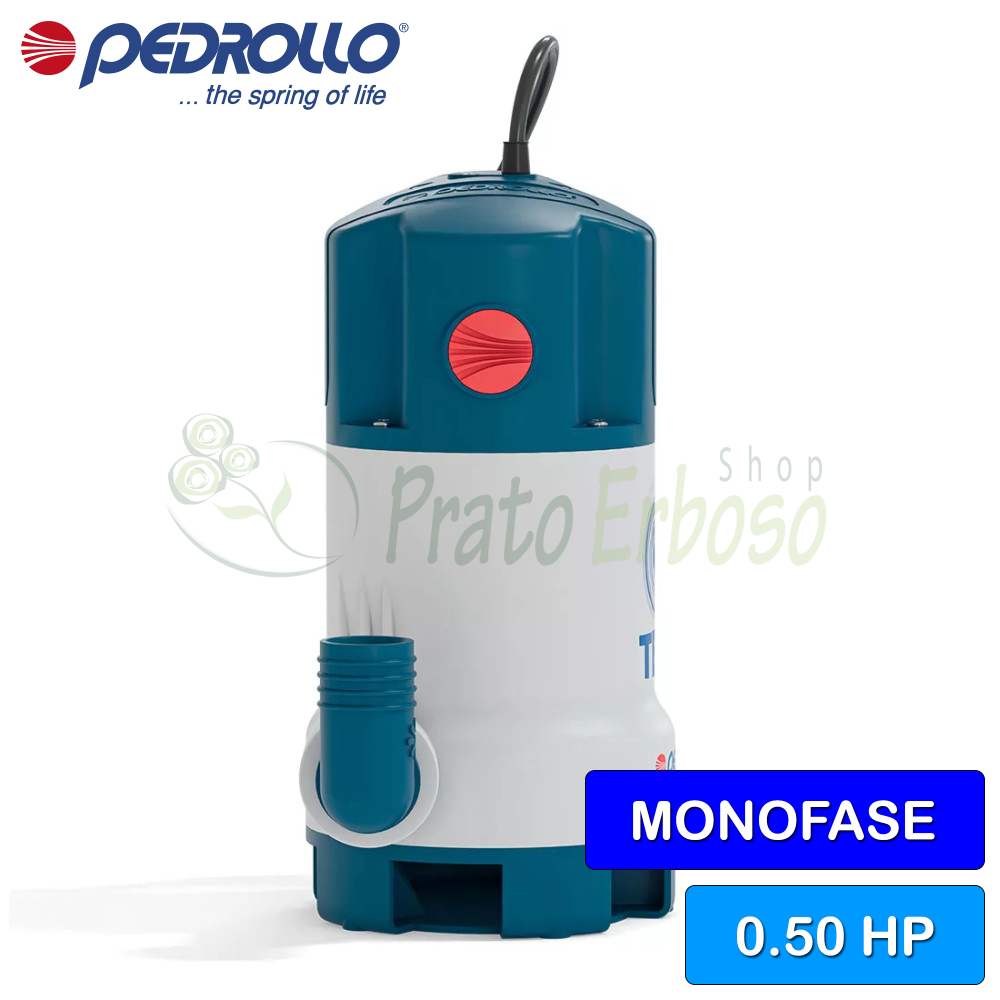

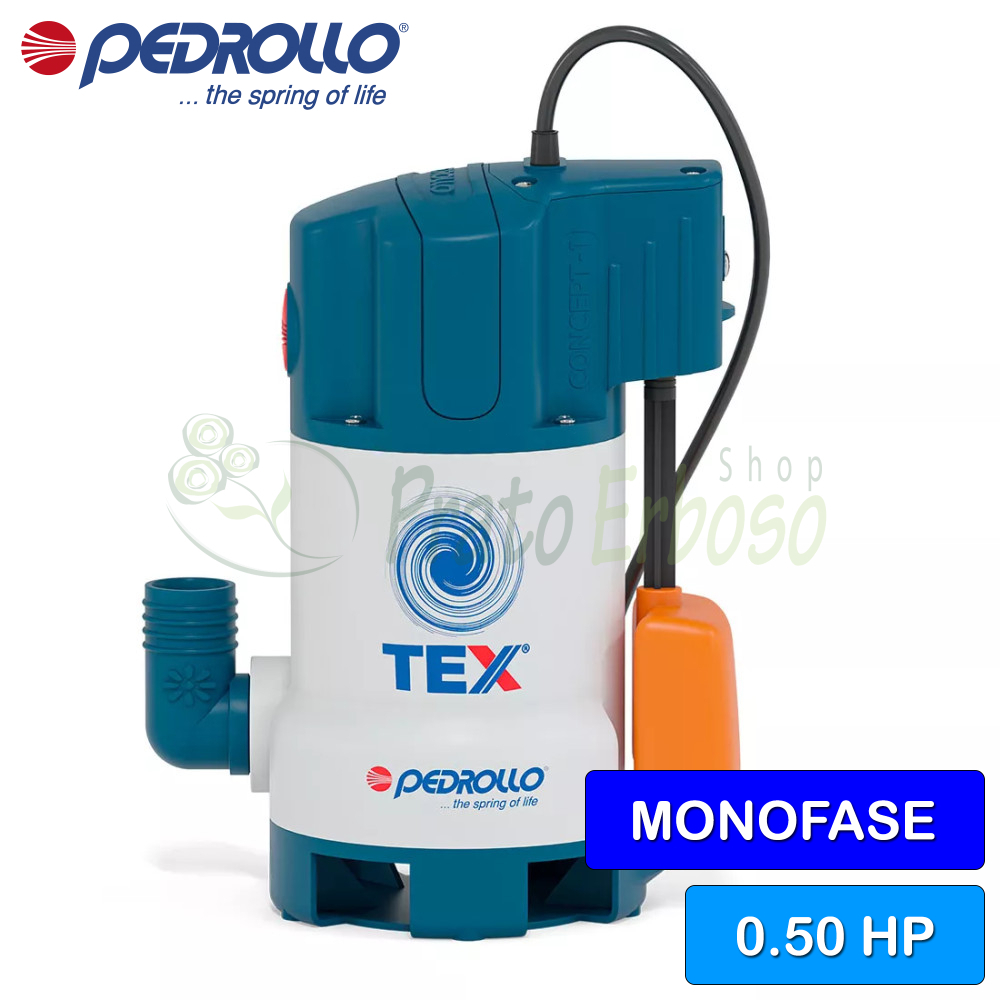

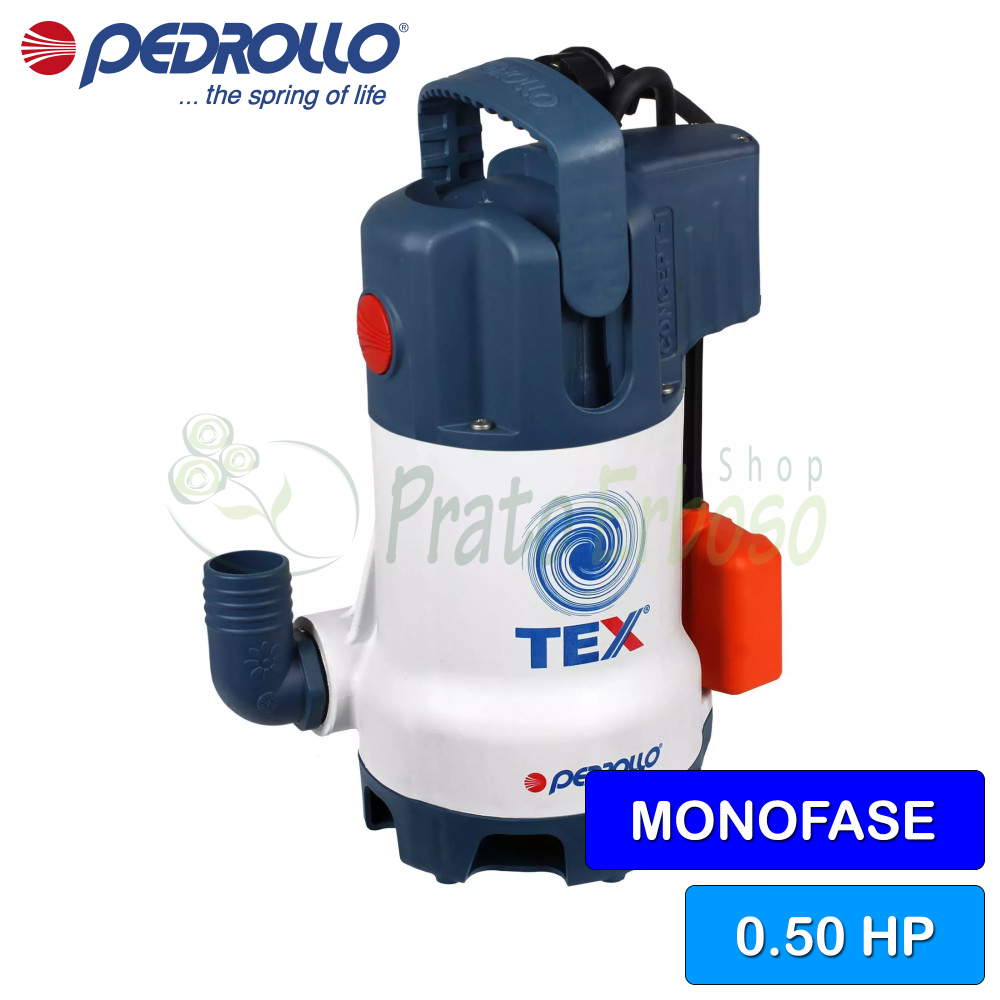

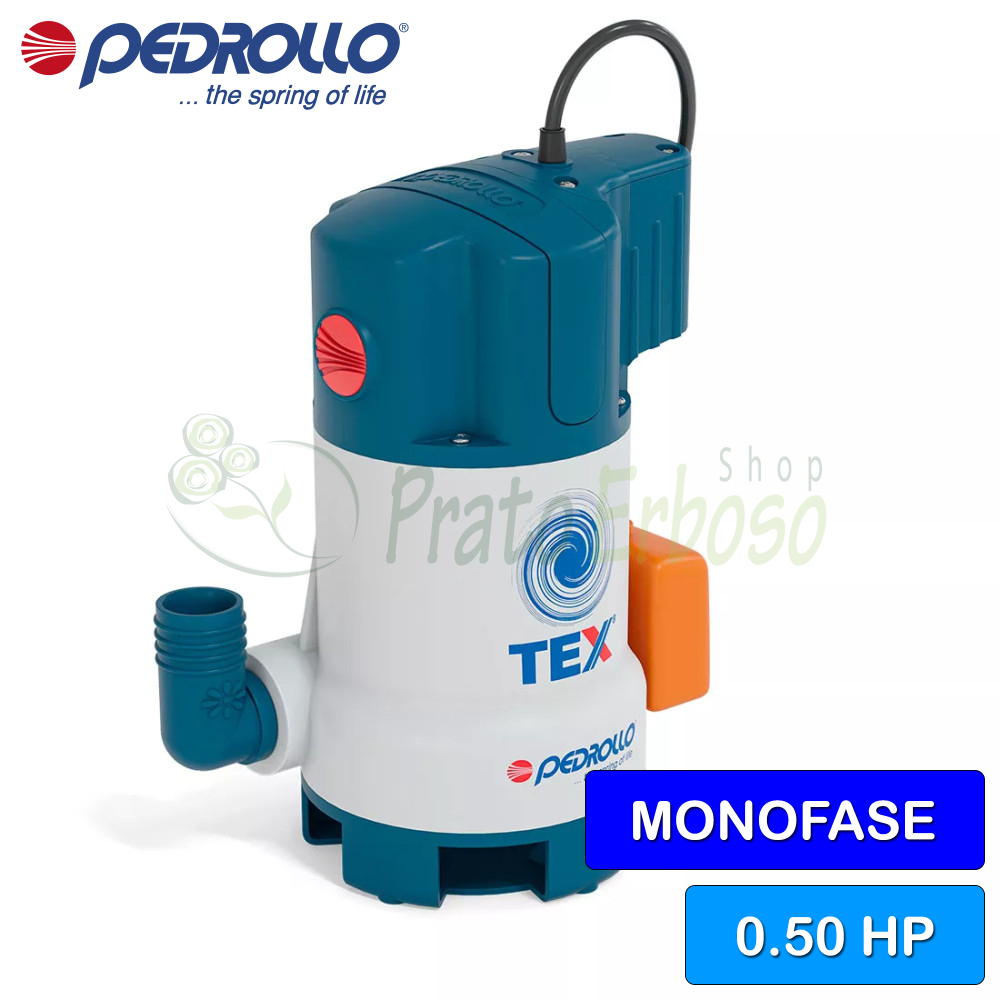

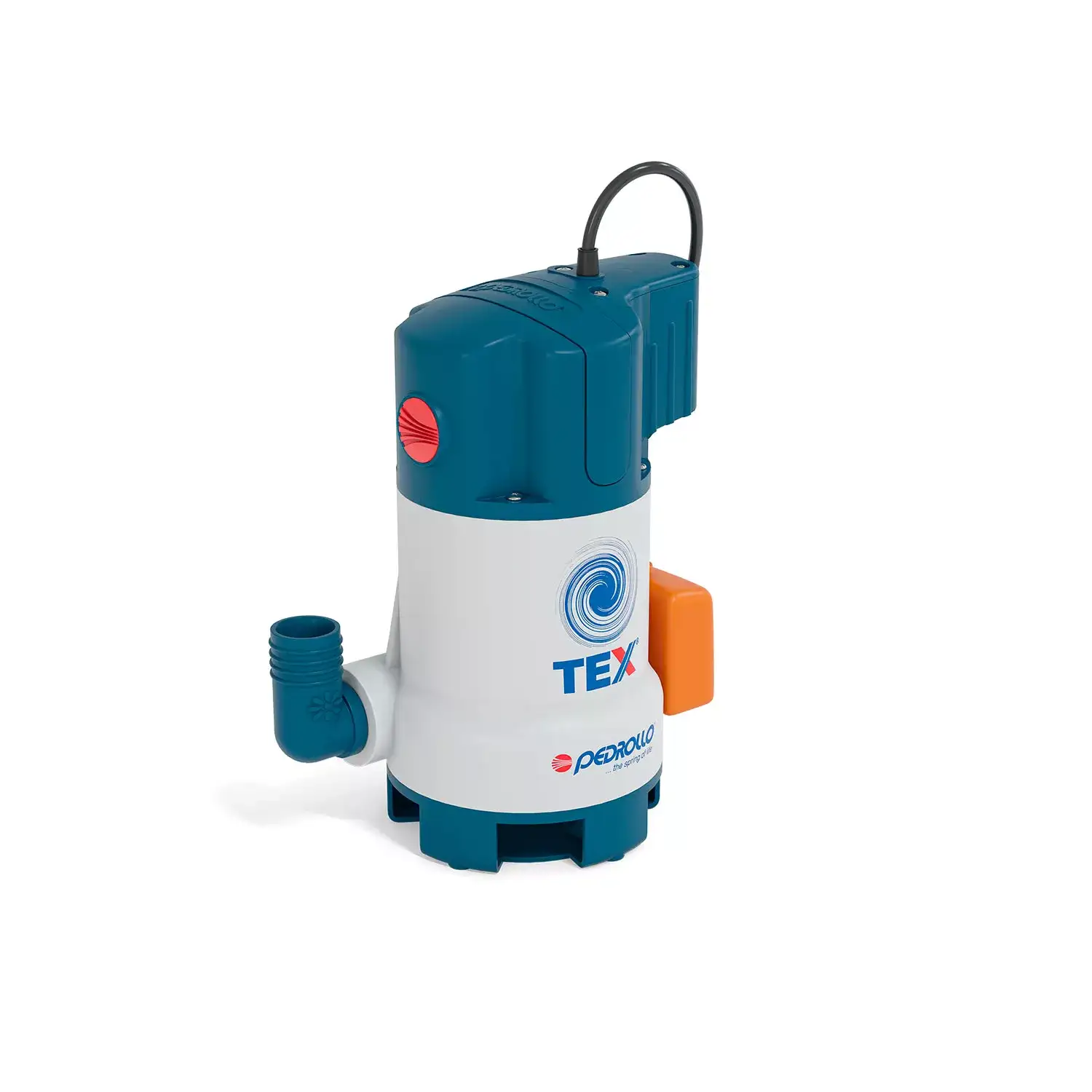

TEX 2 (10m) - 0.50 HP electric drainage pump for dirty water
Flow rate up to 220 l/min (12 m³/h). Head up to 8.5 m. 0.37 kW (0.50 HP) motor. 10-meter cable with Schuko plug.
The TEX 2 submersible electric pump from Pedrollo 's TEX series is the ideal solution for wastewater.
It is typically used on fixed installations for the evacuation of collection pits but can also be used for mobile applications such as tanks, cisterns, ditches or in the event of flooding.
It has more power and a larger free passage.
The TEX 2 has a large side discharge which has been designed to evacuate large quantities of water in a short time with reduced consumption.
Equipped with a compact float that guarantees total electrical safety and allows the pump to be used in very small spaces.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Capacitor
- 10 µF 450 VL
- Delivery mouth
- 1" 1/4
- Impeller
- Technopolymer
- Number of impellers
- 1
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 220
- Min. head (m.)
- 2
- Max. head (m.)
- 8.5
- Cable length (m.)
- 10
- Jobs
- slightly dirty waters, drying up, drainage
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 31.8
- Width (cm)
- 20.5
- Weight (Kg)
- 6.1
- Warranty (years)
- 2
|
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 TEX 2 (10m) - 0.50 HP electric drainage pump for dirty waterThis product Flow rate up to 220 l/min (12 m³/h). Head up to 8.5 m. 0.37 kW (0.50 HP) motor. 10-meter cable with Schuko plug. |  TEX 3 (10m) - 0.75 HP electric drainage pump for dirty waterFlow rate up to 240 l/min (14.4 m³/h). Head up to 10 m. 0.55 kW (0.75 HP) motor. 10-meter cable with Schuko plug. | |
|---|---|---|
| Price | Price €314.76 -42% €182.56 | Price €334.28 -42% €193.88 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.37 | Power (Kw) -- |
| Power (HP) | Power (HP) 0.50 | Power (HP) 0.75 |
| Capacitor | Capacitor 10 µF 450 VL | Capacitor 12.5 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Impeller | Impeller Technopolymer | Impeller Technopolymer |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 220 | Max. flow rate (l./min.) 240 |
| Min. head (m.) | Min. head (m.) 2 | Min. head (m.) 3 |
| Max. head (m.) | Max. head (m.) 8.5 | Max. head (m.) 10 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs slightly dirty waters, drying up, drainage | Jobs slightly dirty waters, drying up, drainage |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 31.8 | Height (cm) 31.8 |
| Width (cm) | Width (cm) 20.5 | Width (cm) 20.5 |
| Weight (Kg) | Weight (Kg) 6.1 | Weight (Kg) 6.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
