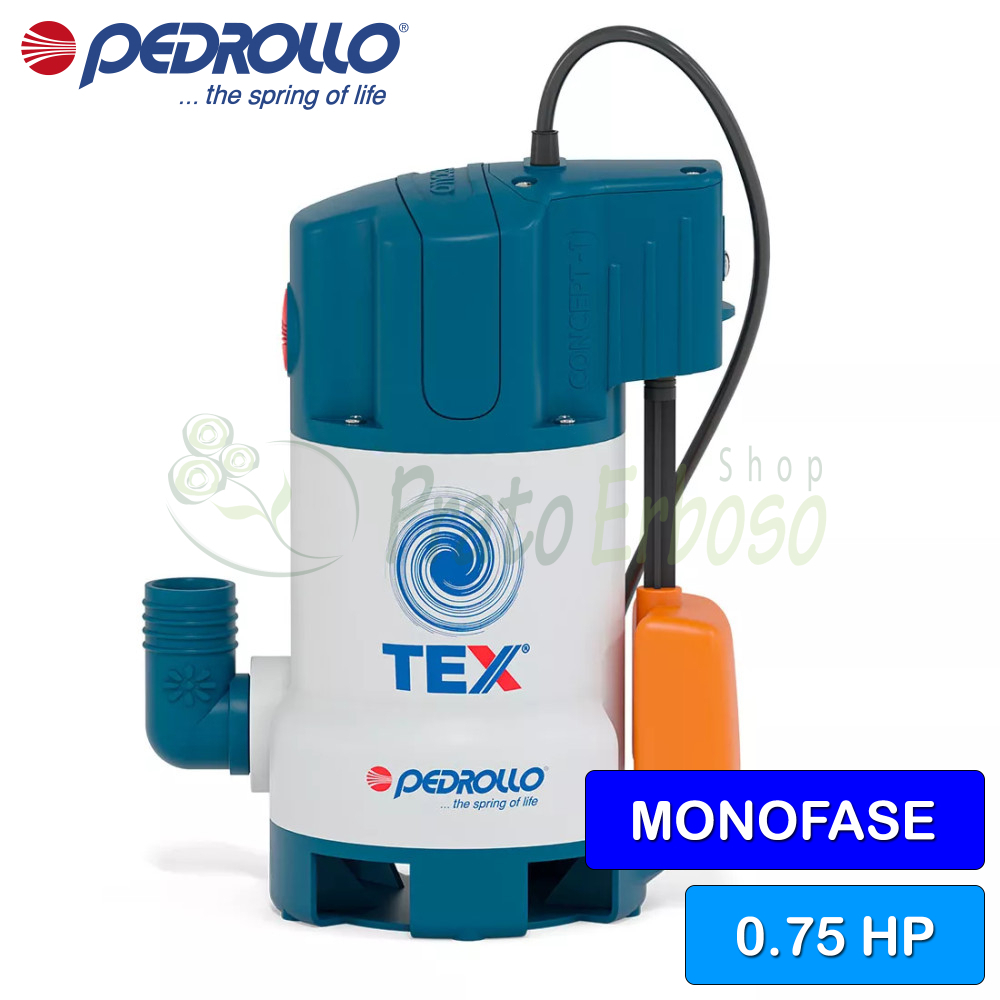

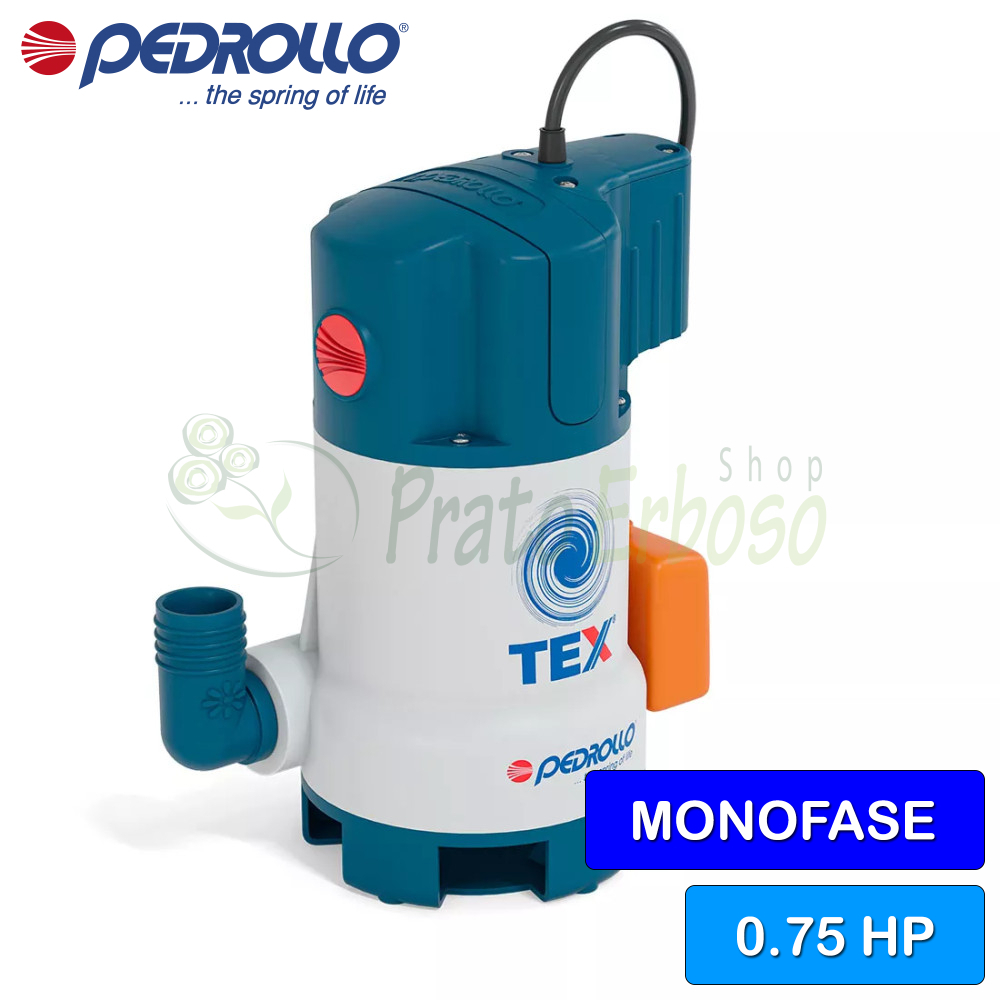

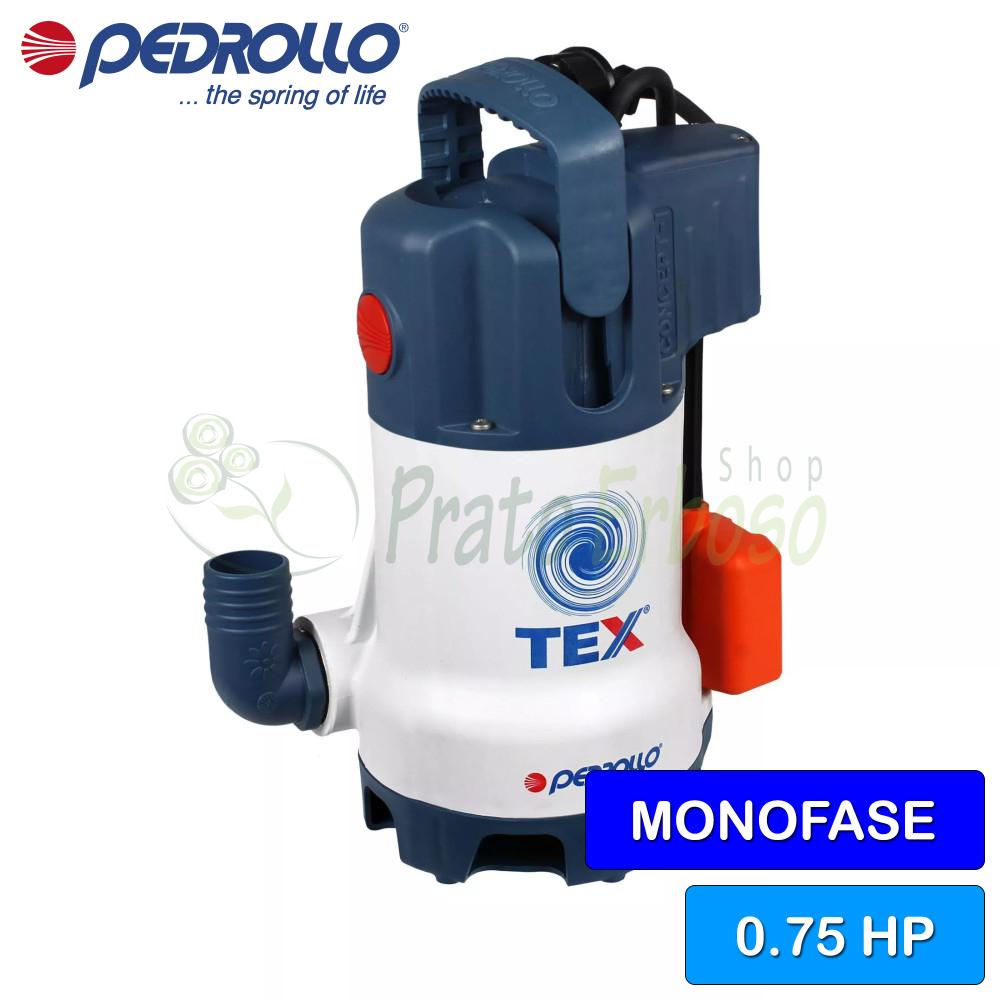

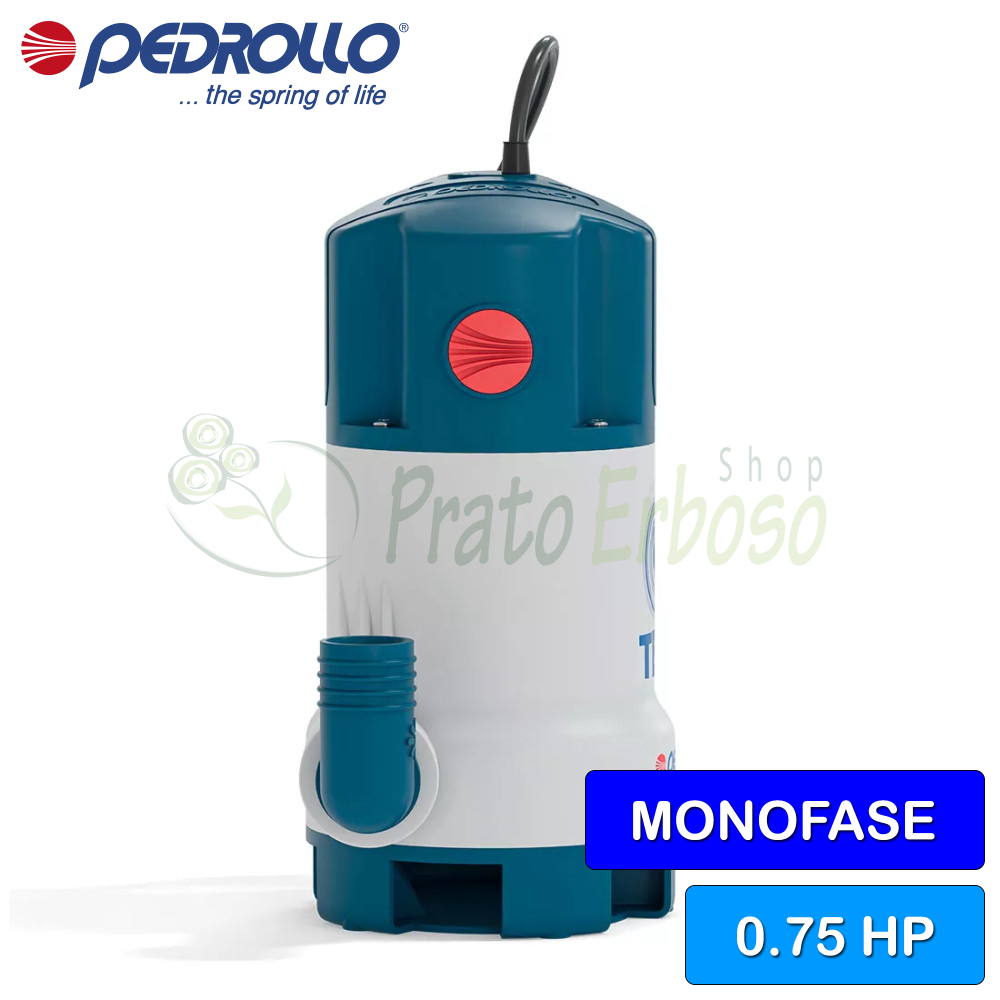

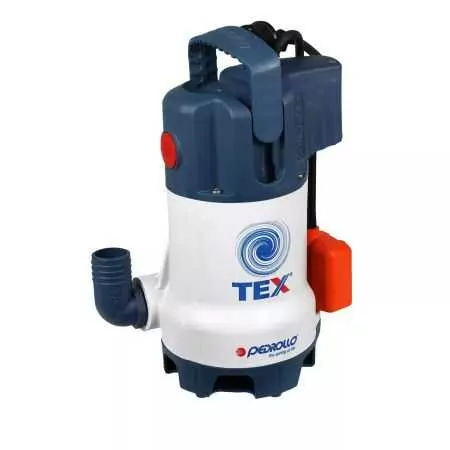

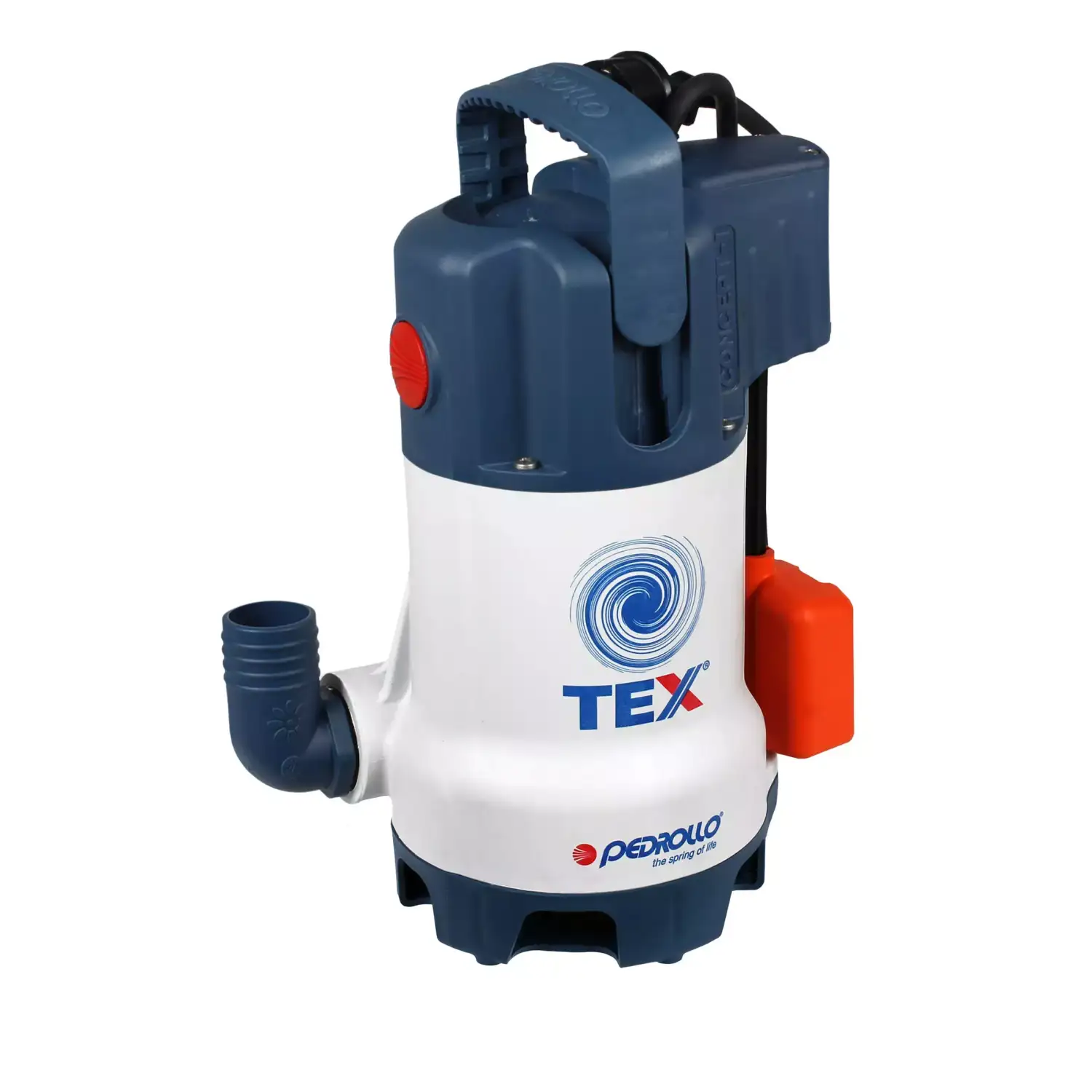

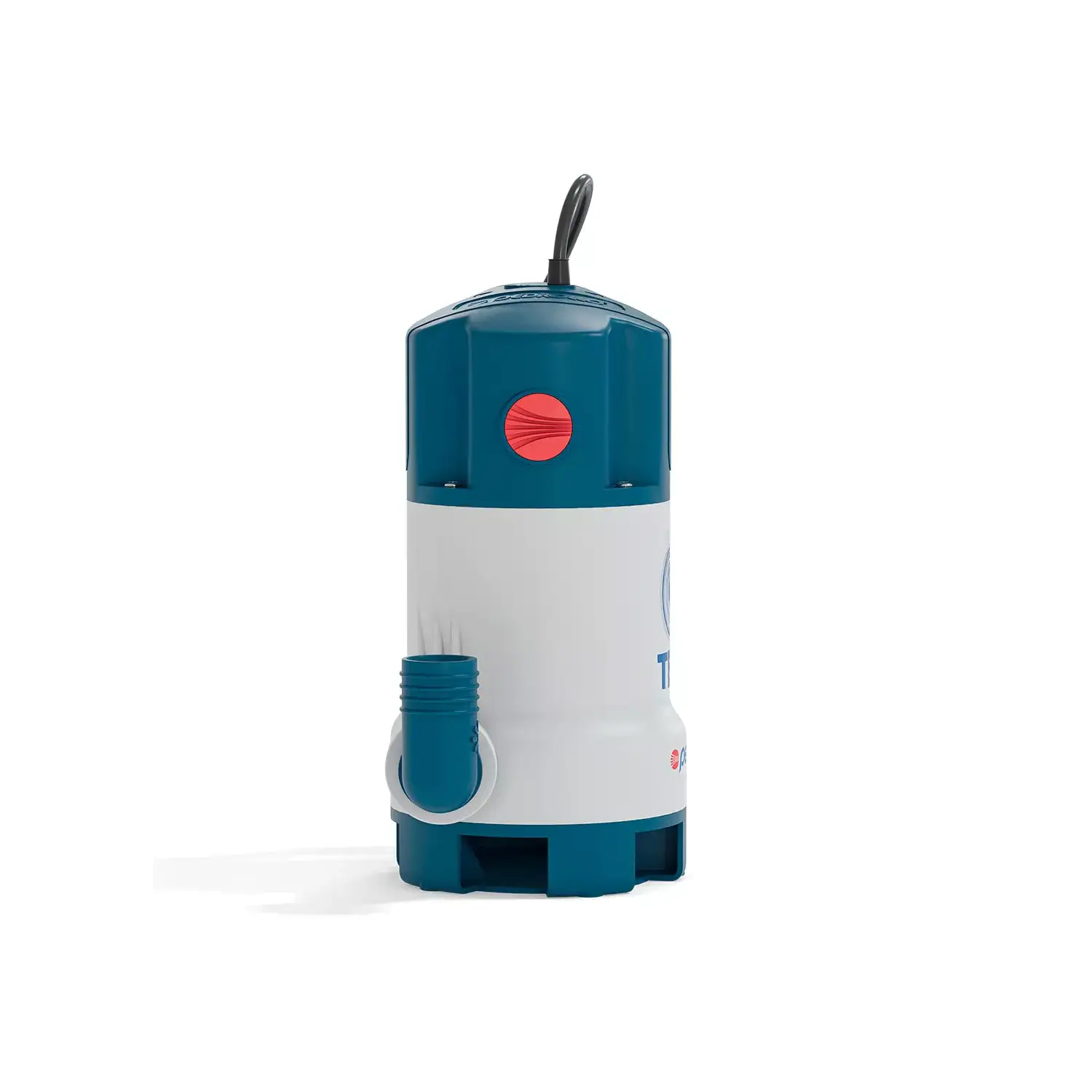

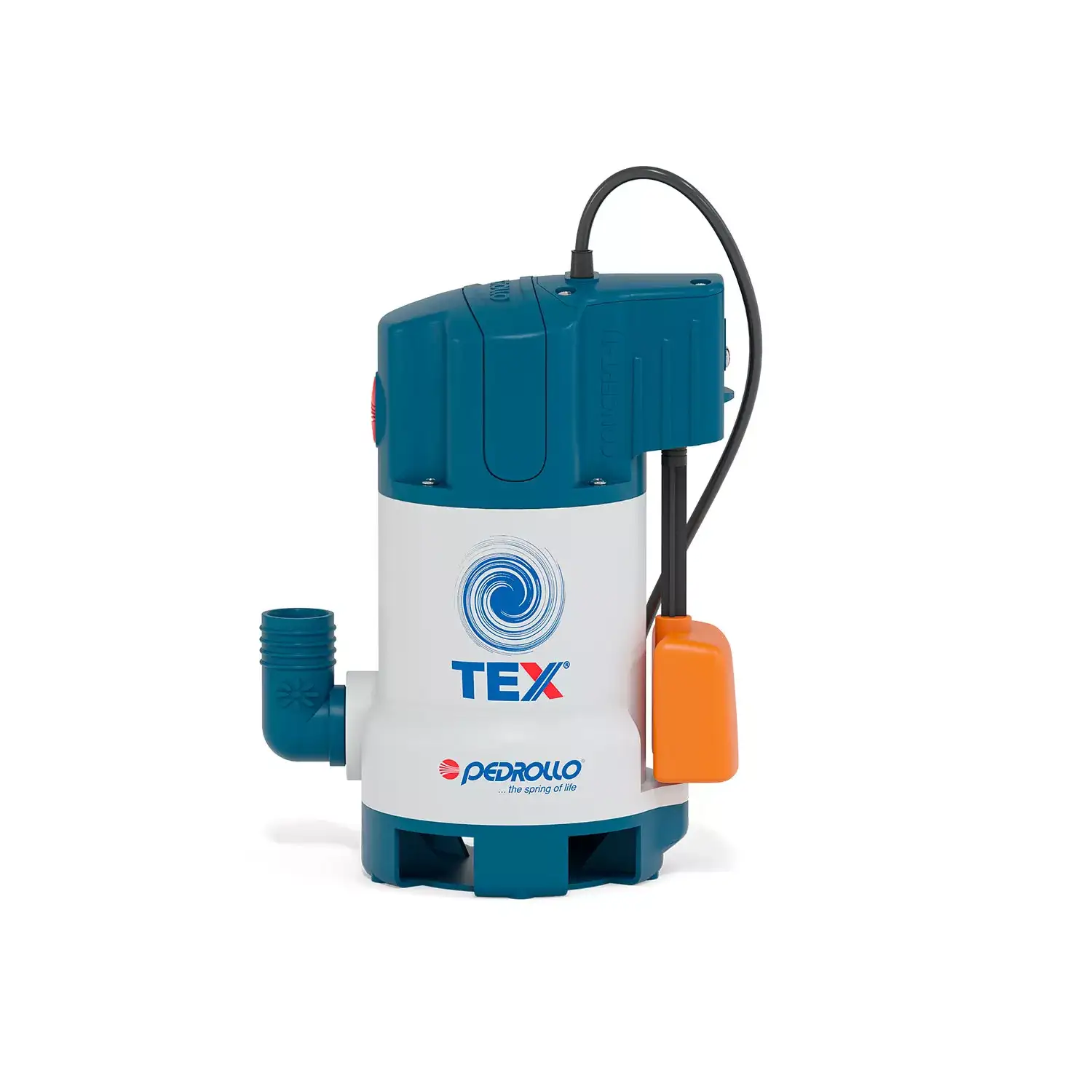

TEX 3 (5m) - 0.75 HP electric drainage pump for dirty water
Flow rate up to 240 l/min (14.4 m³/h). Head up to 10 m. 0.55 kW (0.75 HP) motor. 5 m cable with Schuko plug.
The TEX 3 submersible electric pump from the TEX series by Pedrollo is ideal for use in small wells.
When it comes to eliminating unwanted water, it is among the best in its category.
It is typically used on fixed installations but can also be used for mobile applications such as tanks, cisterns, ditches or in the event of flooding.
The TEX 3 has more power and a larger free passage.
The oversizing of the motor allows the electric pump to work even when uncovered without the motor overheating.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Capacitor
- 12.5 µF 450 VL
- Delivery mouth
- 1" 1/4
- Impeller
- Technopolymer
- Number of impellers
- 1
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 3
- Max. head (m.)
- 10
- Cable length (m.)
- 5
- Jobs
- slightly dirty waters, drying up, drainage
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 31.8
- Width (cm)
- 20.5
- Weight (Kg)
- 6.8
- Warranty (years)
- 2
|
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 2.2 - Suction cover | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
