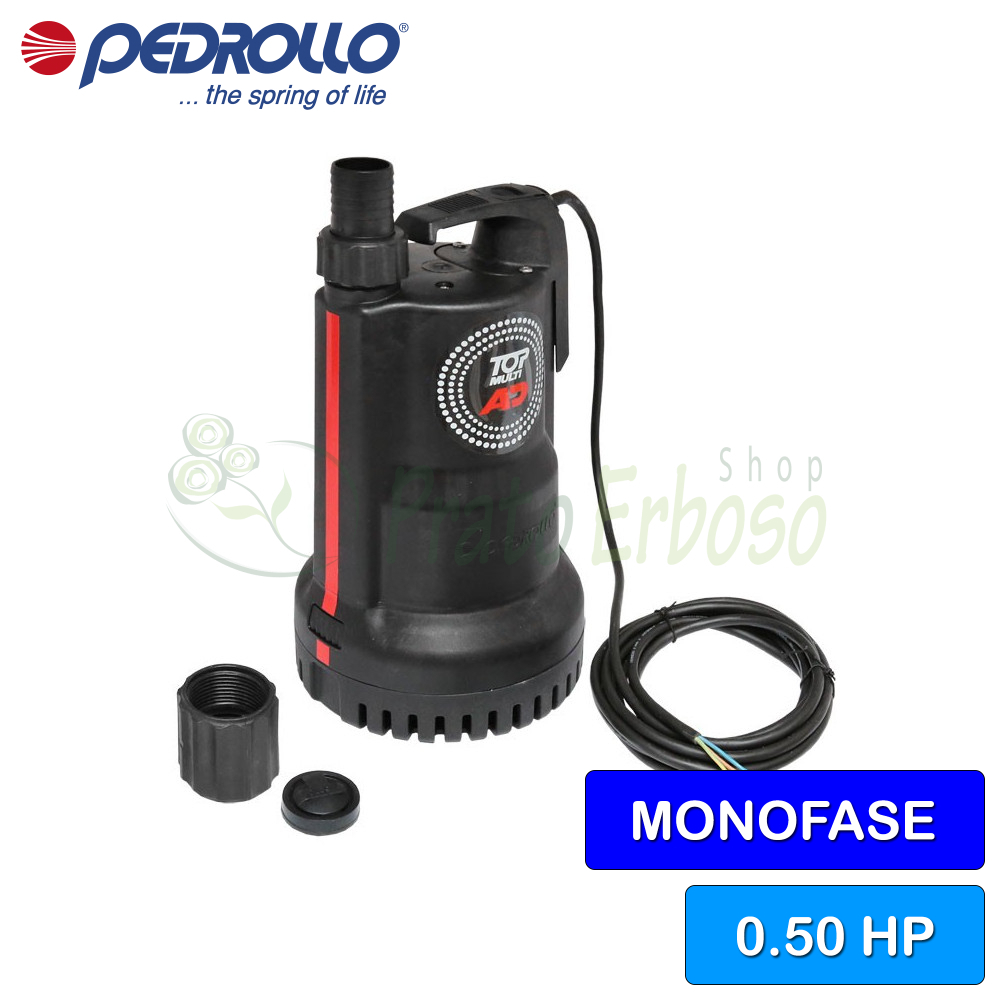

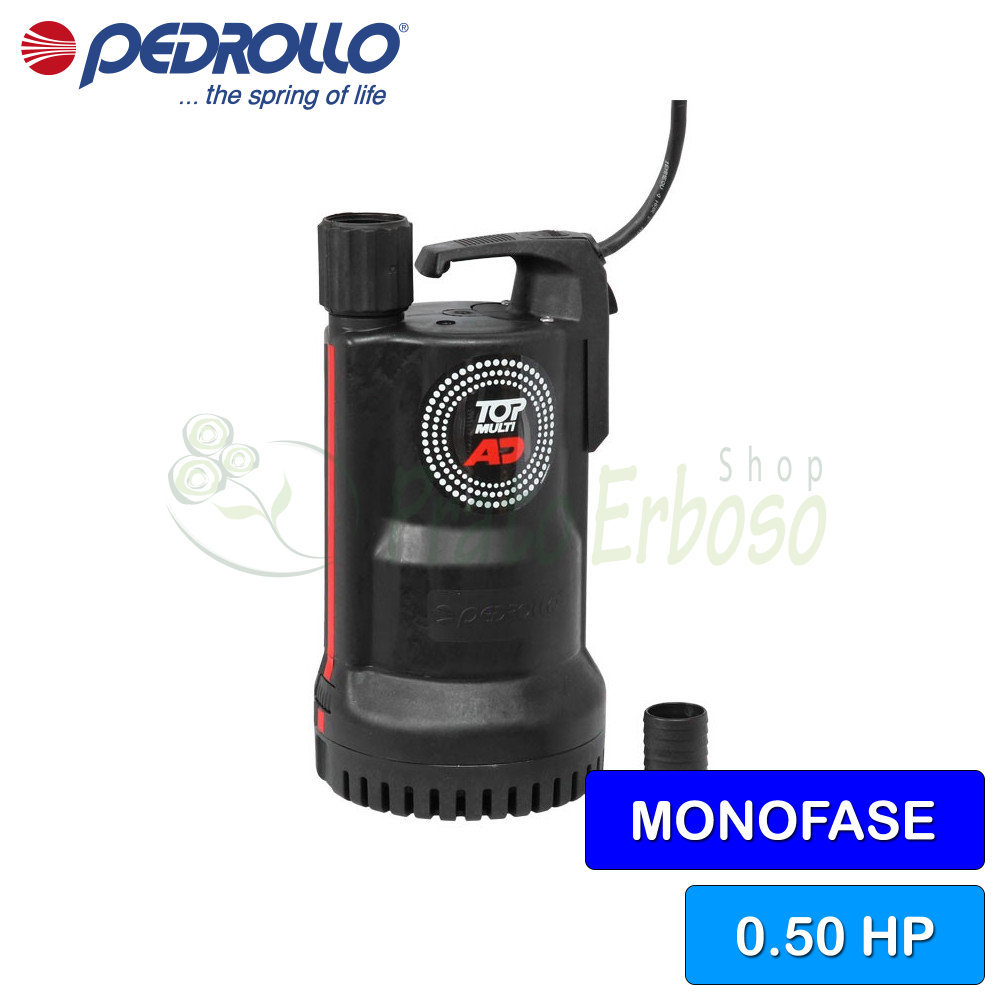

TOP MULTI 1-AD - 0.50 HP multi-impeller electric pump
Flow rate up to 70 l/min (4.2 m³/h). Head up to 26 m. 0.37 Kw (0.50 HP) motor.
There are no reviews yet

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.
Description
The TOP MULTI 1-AD electric pump is recommended for pumping AdBlue, DEF and Arla 32 liquids.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Capacitor
- 10 µF450 VL
- Delivery mouth
- 1 "1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Min. flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 70
- Min. head (m.)
- 6
- Max. head (m.)
- 26
- Cable length (m)
- 5
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 29.5
- Width (cm)
- 18
- Weight (Kg)
- 5.8
- Warranty (years)
- 2
Models and performances TOP MULTI 1-AD
|
|
|
|
|
Construction data of the TOP MULTI 1-AD

Bearings
Pump side motor bearing | 6201 ZZ - C3E |
Opposite side engine bearing | 6201 ZZ - C3E |
Tree holding
Type of seal | Double Seal: Mechanical and Lip with oil chamber |
Engine side model | Lip seal |
LM diameter | 12 |
LM elastomer | NBR |
Shrinkage DN1=450 DN2=350 | STA-12R SGE |
LP diameter | 12 |
LP fixed ring | Silicon carbide |
LP rotating ring | Graphite |
LP elastomer | EPDM |
Materials
1.0 - Pump body | Reinforced technopolymer |
3.0 - Impeller | Reinforced technopolymer |
4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
5.0 - Stadium box | Reinforced technopolymer |
5.1 - Diffuser | Reinforced technopolymer |
5.2 - Wear ring | POM acetal resin |
5.4 - Stadium Containment | Reinforced technopolymer |
5.5 - Director Crown | Reinforced technopolymer |
6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
8.0 - Suction Grid/Filter | Reinforced technopolymer |
