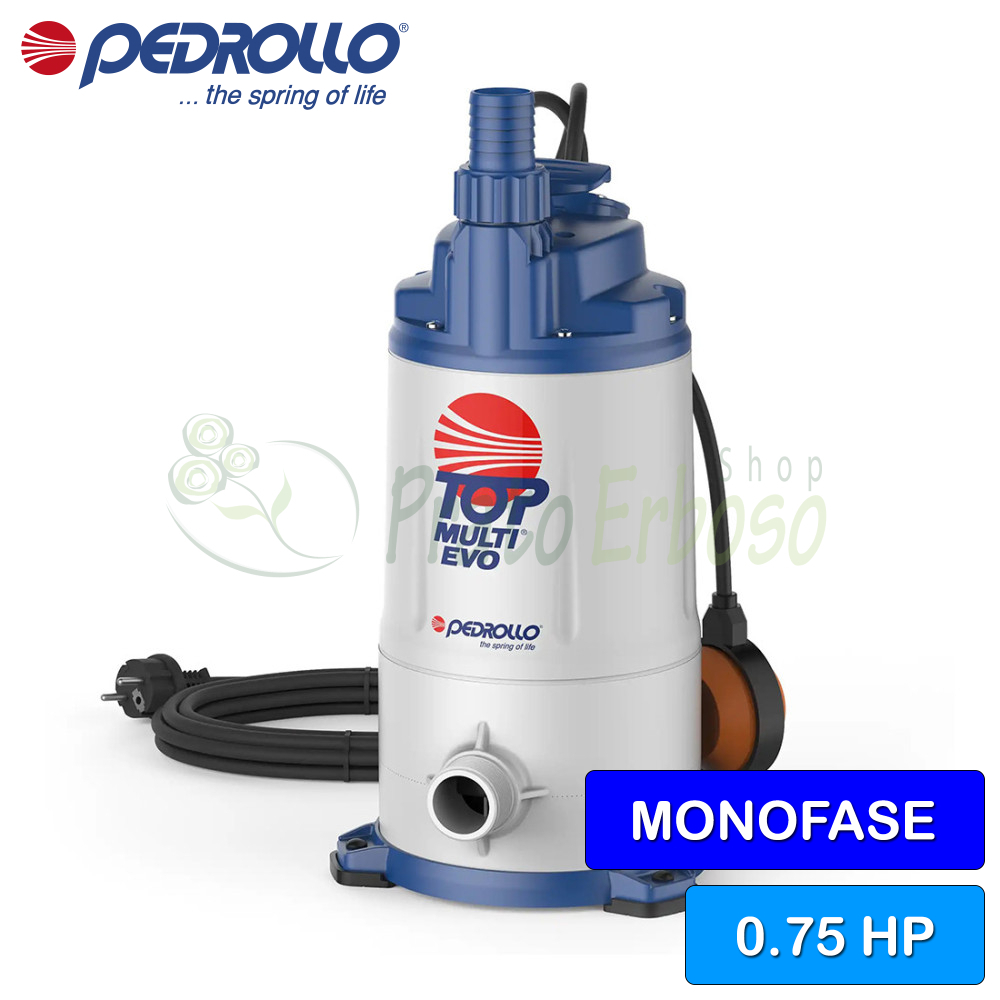

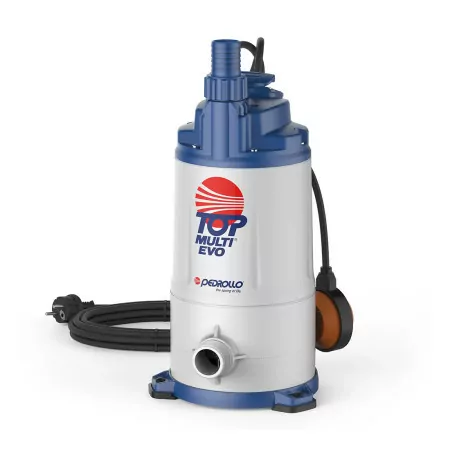

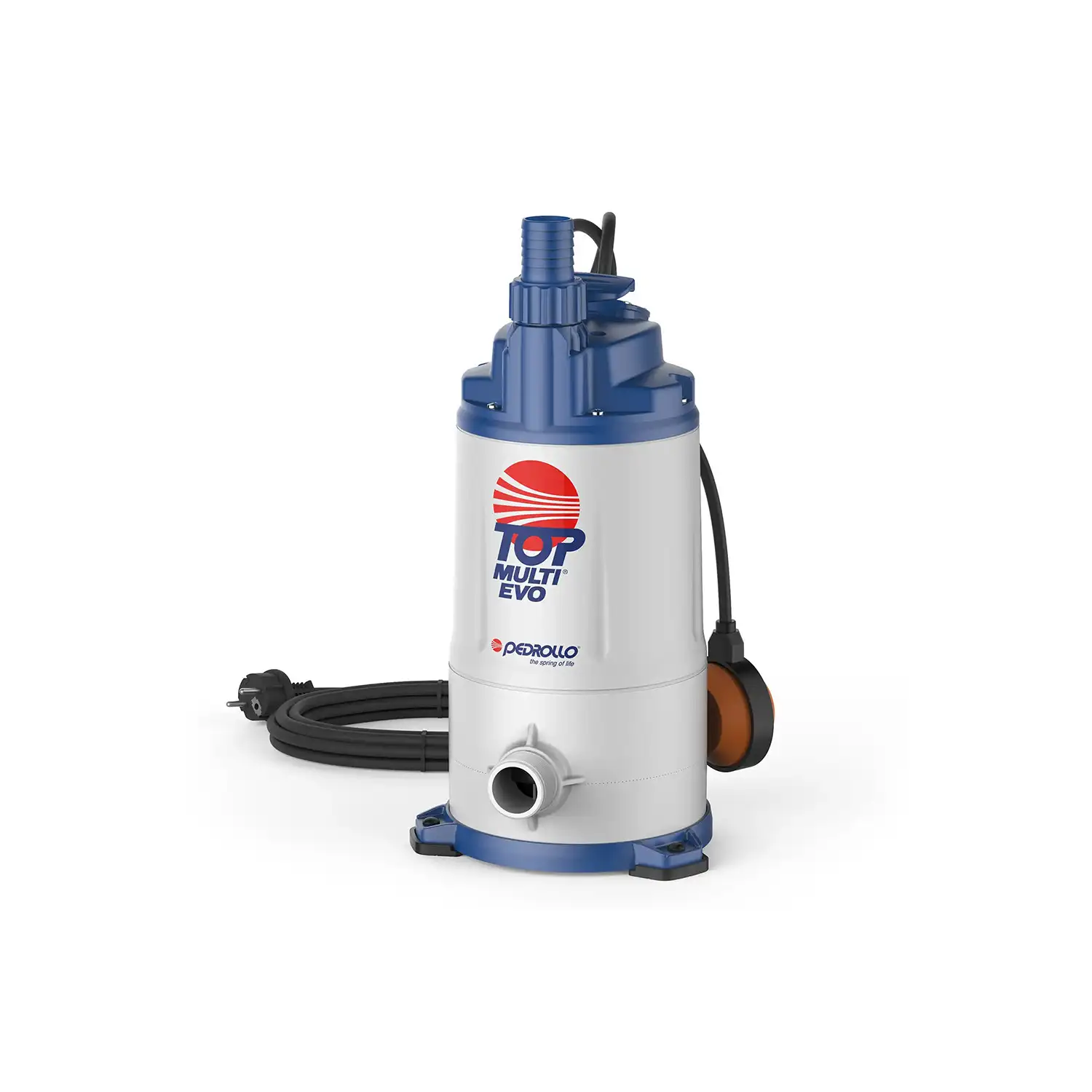

TOP MULTI 2-EVO - 0.75 HP multi-impeller electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. 0.55 Kw (0.75 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The TOP MULTI 2 electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive for the materials from which the pump is made.
Due to their high efficiency and reliability, they are suitable for domestic water supply from relatively deep basins, tanks or wells, for drawing rainwater from cisterns for hand watering or feeding an irrigation system, etc.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.4
- Capacitor
- 12.5 µF450 VL
- Delivery mouth
- 1 "1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 3
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 6
- Max. head (m.)
- 40
- Emptying level (mm)
- 35
- Cable length (m)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 39.4
- Width (cm)
- 23.9
- Weight (Kg)
- 9.8
- Warranty (years)
- 2
Construction data of the TOP MULTI 2-3-4-5-EVO
Bearings
| Pump side motor bearing | 6201 ZZ - C3E |
| Opposite side engine bearing | 6201 ZZ - C3E |
Tree seal
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-13R |
| LM diameter | 13 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM Elastomer | NBR |
| Narrowing DN1=450 DN2=350 | STA-12R SG |
| LP diameter | 12 |
| LP fixed ring | Silicon Carbide |
| LP rotating ring | Graphite |
| LP Elastomer | NBR |
Materials
| 1.0 - Pump Body | Reinforced technopolymer |
| 1.1 - Suction Body | Reinforced technopolymer |
| 1.3 - Delivery Body | Reinforced technopolymer |
| 1.4 - Base | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump Tree | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Reinforced technopolymer |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Shaving Ring | POM Acetal Resin |
| 5.5 - Crown Director | Reinforced technopolymer |
| 6.0 - Engine carrier | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
Models and performances TOP MULTI EVO-1-2-4
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 TOP MULTI 2-EVO - 0.75 HP multi-impeller electric pumpThis product Flow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. 0.55 Kw (0.75 HP) motor. |  TOP MULTI 1-EVO - 0.50 HP multi-impeller electric pumpFlow rate up to 75 l/min (4.5 m³/h). Head up to 26 m. 0.37 Kw (0.50 HP) motor. |  TOP MULTI 3-EVO - 0.75 HP multi-impeller electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 30.5 m. 0.55 Kw (0.75 HP) motor. |  TOP MULTI 4-EVO - 1 HP multi-impeller electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.37 | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 0.50 | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 3.4 | Absorption at 230V (A) 2.0 | Absorption at 230V (A) 3.6 | Absorption at 230V (A) 3.9 |
| Capacitor | Capacitor 12.5 µF450 VL | Capacitor -- | Capacitor 12.5 µF450 VL | Capacitor -- |
| Delivery mouth | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 |
| Pump body | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 3 | Number of impellers 1 | Number of impellers 3 | Number of impellers 4 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 75 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 6 | Min. head (m.) 6 | Min. head (m.) 4.5 | Min. head (m.) 8 |
| Max. head (m.) | Max. head (m.) 40 | Max. head (m.) 26 | Max. head (m.) 30.5 | Max. head (m.) 52 |
| Emptying level (mm) | Emptying level (mm) 35 | Emptying level (mm) 35 | Emptying level (mm) 35 | Emptying level (mm) 35 |
| Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 |
| Height (cm) | Height (cm) 39.4 | Height (cm) 31.7 | Height (cm) 39.4 | Height (cm) 42.8 |
| Width (cm) | Width (cm) 23.9 | Width (cm) 22.7 | Width (cm) 23.9 | Width (cm) 23.9 |
| Depth (cm) | Depth (cm) -- | Depth (cm) 22.7 | Depth (cm) -- | Depth (cm) 23.9 |
| Weight (Kg) | Weight (Kg) 9.8 | Weight (Kg) 7.1 | Weight (Kg) 9.9 | Weight (Kg) 10.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
