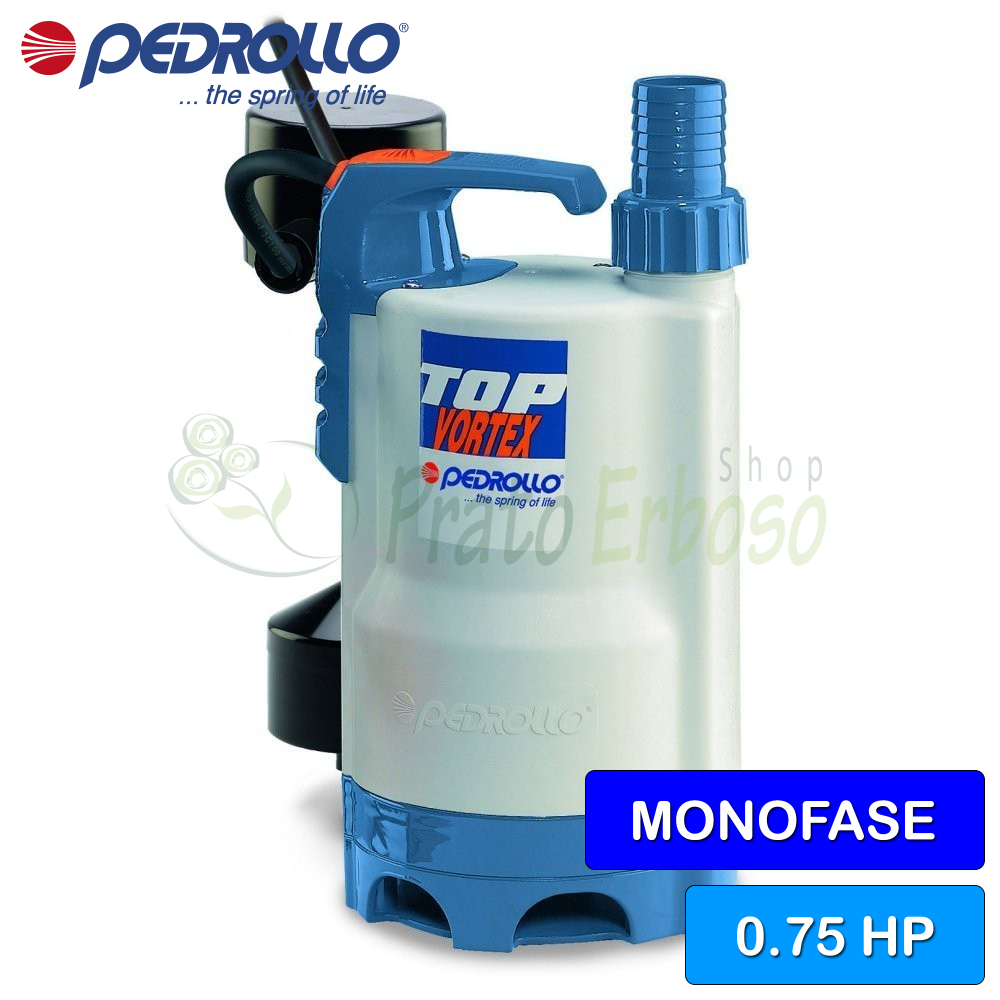

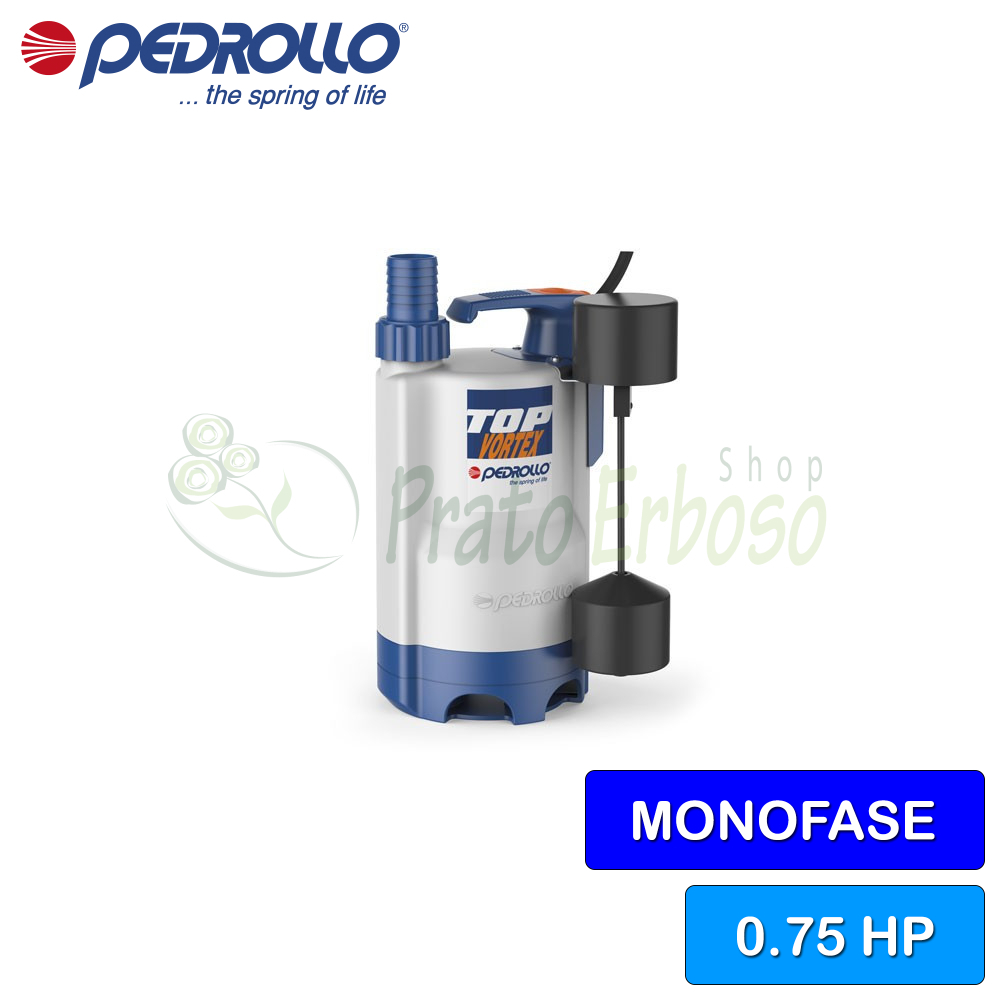

TOP 3 - VORTEX/GM (10m) - 0.75 HP electric drainage pump for dirty water

Name: TOP 3 - VORTEX/GM (10m) - 0.75 HP electric drainage pump for dirty water
Brand: Pedrollo
SKU: TOP 3 - VORTEX/GM 10MT
Price: 177.61 EUR
Availability: InStock
Rating: 4 (1 reviews)

Flow rate up to 170 l/min (10.8 m³/h). Head up to 8.7 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable with shuko plug.

WITH MAGNETIC FLOAT.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The TOP-VORTEX/GM pump is suitable for draining dirty water and is equipped with a magnetic float switch, which allows it to operate even in particularly restricted spaces.

The construction solutions employed guarantee ease of use and operational safety thanks to the total cooling of the motor and the double seal on the shaft.

It is recommended for domestic use, for the evacuation of dirty water, emptying of tanks, domestic drains, emptying of small collection pits, even in the presence of suspended solid bodies with a diameter of up to 20 millimetres.

Data sheet

Motor connection: SINGLE PHASE
Power (HP): 0.75
Absorption at 230V (A): 2.9
Capacitor: 14 µF450 VL
Delivery mouth: 1 "1/4
Pump body: Technopolymer
Impeller: Technopolymer
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 68
Min. flow rate (l./min.): 20
Max. flow rate (l./min.): 170
Min. head (m.): 2.8
Max. head (m.): 8.7
Cable length (m): 10
Jobs: drainage, drying up
Max. liquid temperature (°C): 40
Height (cm): 20
Width (cm): 15.2
Weight (Kg): 6.7
Warranty (years): 2

Attachments

TOP-VORTEX data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo TOP-VORTEX series pumps.

Download (1.21MB)

TOP models and performances - VORTEX/GM

GUY

single phase

TOP 2 - VORTEX/GM

TOP 3 - VORTEX/GM

POWER
KW	HP
0.37	0.50
0.55	0.75

PERFORMANCE
Q litres/min	H meters
20 ÷ 155	7.6 ÷ 2
20 ÷ 170	8.7 ÷ 2.8

MOUTH

send.

1 1/4"

SOLID BODIES

Ø 25

HOSE HOLDER

Ø 35

Q	m³/hour	0	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.3	10.2
Q	l/min	0	20	40	60	80	100	120	140	155	170
H	meters	7.6	7.1	6.6	6.1	5.5	4.8	3.9	2.9	2
H	meters	8.7	8.2	7.7	7.2	6.7	6	5.3	4.4	3.7	2.8

Construction data of the TOP 2 VORTEX

Bearings

Pump side motor bearing	6201 ZZ
Opposite side engine bearing	6201 ZZ

Tree holding

Type of seal	Double Seal: Mechanical and Lip with oil chamber
Engine side model	Lip seal
LM diameter	12
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	STA-12R
LP diameter	12
LP fixed ring	Ceramic
LP rotating ring	Graphite
LP elastomer	NBR

Materials

1.0 - Pump body	Reinforced technopolymer
2.2 - Suction cover	Reinforced technopolymer
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Reinforced technopolymer

Compare with Similar Products

	TOP 3 - VORTEX/GM (10m) - 0.75 HP electric drainage pump for dirty water This product Flow rate up to 170 l/min (10.8 m³/h). Head up to 8.7 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable with shuko plug. WITH MAGNETIC FLOAT.	TOP 1 - VORTEX/GM (10m) - 0.33 HP electric drainage pump for dirty water Quick View Flow rate up to 140 l/min (8.4 m³/h). Head up to 7 m. 0.25 Kw (0.33 HP) motor. 10 meters of cable with shuko plug.	TOP 2 - VORTEX/GM (10m) - 0.50 HP electric drainage pump for dirty water Quick View Flow rate up to 155 l/min (10.8 m³/h). Head up to 7.6 m. 0.37 Kw (0.5 HP) motor. 10 meters of cable with shuko plug.
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (Kw)	Power (Kw) --	Power (Kw) 0.25	Power (Kw) 0.37
Power (HP)	Power (HP) 0.75	Power (HP) 0.33	Power (HP) 0.50
Absorption at 230V (A)	Absorption at 230V (A) 2.9	Absorption at 230V (A) 1.5	Absorption at 230V (A) 2.0
Capacitor	Capacitor 14 µF450 VL	Capacitor --	Capacitor 10 µF450 VL
Delivery mouth	Delivery mouth 1 "1/4	Delivery mouth 1 "1/4	Delivery mouth 1 "1/4
Pump body	Pump body Technopolymer	Pump body Technopolymer	Pump body Technopolymer
Impeller	Impeller Technopolymer	Impeller Technopolymer	Impeller Technopolymer
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft Stainless steel EN 10088-3 1.4104	Crankshaft AISI 431 stainless steel	Crankshaft Stainless steel EN 10088-3 1.4104
Check valve	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Min. flow rate (l./min.)	Min. flow rate (l./min.) 20	Min. flow rate (l./min.) 20	Min. flow rate (l./min.) 20
Max. flow rate (l./min.)	Max. flow rate (l./min.) 170	Max. flow rate (l./min.) 140	Max. flow rate (l./min.) 155
Min. head (m.)	Min. head (m.) 2.8	Min. head (m.) 1.6	Min. head (m.) 2
Max. head (m.)	Max. head (m.) 8.7	Max. head (m.) 7	Max. head (m.) 7.6
Cable length (m)	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10
Jobs	Jobs drainage, drying up	Jobs drainage, drying up, slightly dirty waters	Jobs drainage, drying up
Max. liquid temperature (°C)	Max. liquid temperature (°C) 40	Max. liquid temperature (°C) 40	Max. liquid temperature (°C) 40
Height (cm)	Height (cm) 20	Height (cm) 31.8	Height (cm) 20
Width (cm)	Width (cm) 15.2	Width (cm) 20.0	Width (cm) 15.2
Depth (cm)	Depth (cm) --	Depth (cm) 20.0	Depth (cm) --
Weight (Kg)	Weight (Kg) 6.7	Weight (Kg) 6.9	Weight (Kg) 5.3
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
