TIGm 1.3 - 1.75 HP single-phase submersible electric pump with grinder
Flow rate up to 250 l/min (15 m³/h). Head up to 21 m. 1.3 kW (1.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 13 August - Friday 14 August |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 13 August - Friday 14 August |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 14 August - Monday 17 August |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 August - Friday 14 August
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 13 August - Friday 14 August
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 14 August - Monday 17 August

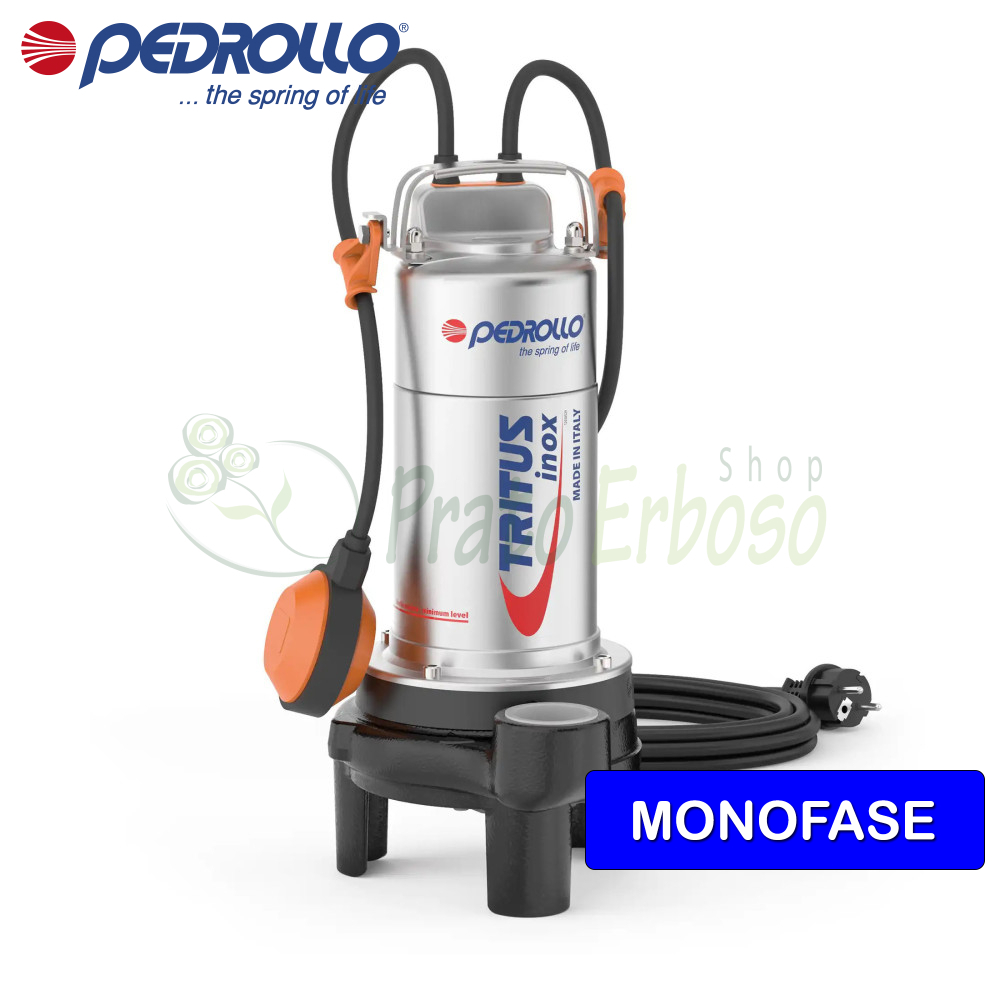

The Pedrollo TIGm 1.3 single-phase grinder pump is equipped with a high-resistance tempered stainless steel grinder.
The pump is equipped with a 10-meter cable, it can be immersed up to 5 meters underwater.
The TIGm 1.3 allows for the complete shredding of solid bodies and fibres contained in wastewater and wastewater in the domestic and civil sectors, for conveyance under pressure into the sewer system through small diameter pipes.
It has a flow rate that varies from 20 to 250 litres per minute with a head from 2 to 21 metres.
It must be powered by a single-phase voltage, has a horsepower of 1.75 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to +40.
It has an IP68 certification, safe from dust and water ingress.
The TIGm 1.3 is equipped with an external control panel for greater operational safety thanks to a special capacitor that significantly increases torque. The control panel includes a manually resettable motor circuit breaker.
The pump is made of materials such as cast iron and stainless steel which give the pump good resistance and allow it to last over time.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.3
- Power (HP)
- 1.75
- Absorption at 230V (A)
- 6.7
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 150
- Min. head (m.)
- 2
- Max. head (m.)
- 24
- Cable length (m.)
- 10
- Jobs
- slightly dirty waters, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 43.2
- Width (cm)
- 19.5
- Depth (cm)
- 24.0
- Weight (Kg)
- 18.3
- Warranty (years)
- 2
