TR 2.2 - 3 HP three-phase submersible electric pump with grinder

Name: TR 2.2 - 3 HP three-phase submersible electric pump with grinder
Brand: Pedrollo
SKU: TR 2.2
Price: 993.08 EUR
Availability: InStock

Flow rate up to 280 l/min (13.2 m³/h). Head up to 31 m. 2.2 Kw (3 HP) motor.

Variants:

Order it before 23:59 of Thursday and receive it tomorrow with SDA - 2 giorni Italia

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Wednesday 11 June - Thursday 12 June
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Wednesday 11 June - Thursday 12 June
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Wednesday 11 June - Thursday 12 June
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 13 June - Tuesday 17 June
SDA - 2 giorni Italia	2 DAYS	tomorrow

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 11 June - Thursday 12 June

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 11 June - Thursday 12 June

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 11 June - Thursday 12 June

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 13 June - Tuesday 17 June

Carrier: SDA - 2 giorni Italia

Description: 2 DAYS

Estimated delivery:
tomorrow

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

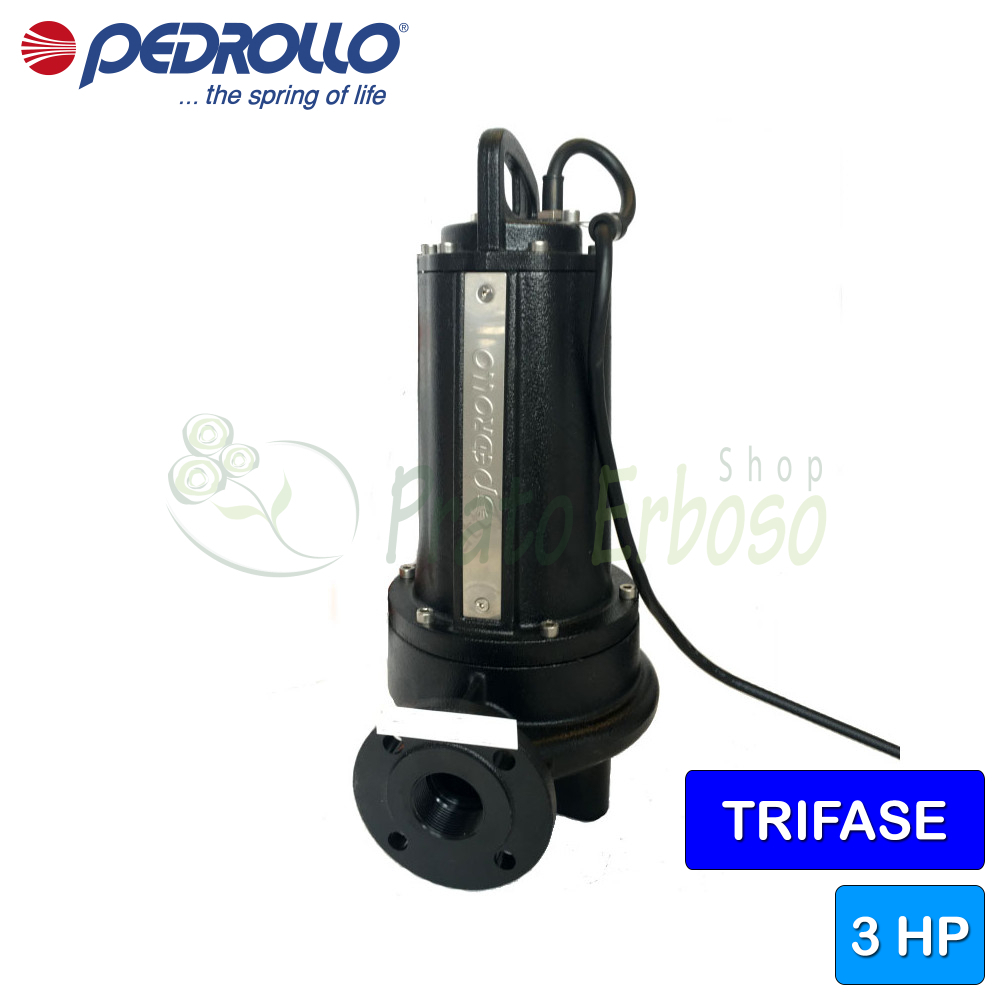

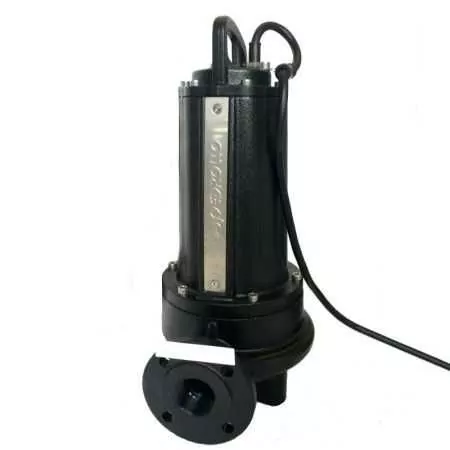

The TR 2.2 grinder pump from the TRITUS series is made of thick cast iron which ensures exceptional strength, abrasion resistance and durability over time.

It is equipped with a SHREDDER made of high-resistance tempered stainless steel which allows for the complete shredding of solid bodies and fibres contained in waste water and waste water in the domestic and civil sectors, for conveying under pressure into the sewer system through small diameter pipes.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 2.2
Power (HP): 3
Absorption at 400V (A): 5.5
Delivery mouth: 1 "1/2
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Min. flow rate (l./min.): 20
Max. flow rate (l./min.): 280
Min. head (m.): 2
Max. head (m.): 31
Cable length (m): 10
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): 40
Height (cm): 48.9
Weight (Kg): 44.4
Warranty (years): 2

Attachments

TRITUS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the pumps of the TRITUS series by Pedrollo.

Download (5.15MB)

TR models and performance

GUY

Three-phase

TR 0.75

TR 0.9

TR 1.1

TR 1.3

TR 1.5

TR 2.2

POWER
KW	HP
0.75	1
0.9	1.25
1.1	1.5
1.3	1.75
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
20 ÷ 125	16.5 ÷ 2
20 ÷ 170	16 ÷ 2
20 ÷ 140	23 ÷ 2
20÷220	23.5 ÷ 2
20 ÷ 270	26 ÷ 2
20÷280	31 ÷ 2

MOUTH
DN 40
1 1/4"

Q	m³/hour	0	1.2	2.4	3.6	4.8	6	7.5	8.4	10.2	12	13.2	14.4	16.2	16.8
Q	l/min	0	20	40	60	80	100	125	140	170	200	220	240	270	280
H	meters	16.5	15	13.5	11.8	10	7.5	2
		16	15	13.8	12.5	11.1	9.6	7.5	6	2
		23	21.5	19.5	17.5	15.5	13	9.5	2
		23.5	22.5	21.2	19.8	18.4	17	14.8	13.4	10.2	6.2	2
		26	25	24	22.8	21.7	20.4	18.8	17.8	15.6	13.4	11.7	10	2
		31	30	29	28	26.8	25.7	24.3	23.5	21.5	19.5	18	16.5	13.2	2

Construction data TR 1.5-2.2

Compare with Similar Products

	TR 2.2 - 3 HP three-phase submersible electric pump with grinder This product Flow rate up to 280 l/min (13.2 m³/h). Head up to 31 m. 2.2 Kw (3 HP) motor.	TR 1.5 - 2 HP three-phase submersible electric pump with grinder Quick View Flow rate up to 270 l/min (12 m³/h). Head up to 26 m. 1.5 Kw (2 HP) motor.	TR 3 - 4 HP three-phase submersible electric pump with grinder Quick View Flow rate up to 400 l/min (24 m³/h). Head up to 34.5 m. 3 Kw (4 HP) motor.	TR 4 - 5.5 HP three-phase submersible electric pump with grinder Quick View Flow rate up to 410 l/min (24.6 m³/h). Head up to 40 m. 4 Kw (5.5 HP) motor.
Motor connection	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE
Power (Kw)	Power (Kw) 2.2	Power (Kw) 1.5	Power (Kw) 3	Power (Kw) 4
Power (HP)	Power (HP) 3	Power (HP) 2	Power (HP) 4	Power (HP) 5.5
Absorption at 400V (A)	Absorption at 400V (A) 5.5	Absorption at 400V (A) 3.7	Absorption at 400V (A) 6.3	Absorption at 400V (A) 7.5
Delivery mouth	Delivery mouth 1 "1/2	Delivery mouth 1 "1/2	Delivery mouth 1 "1/2	Delivery mouth 1 "1/2
Pump body	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron
Impeller	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel	Impeller Technopolymer	Impeller Technopolymer
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Min. flow rate (l./min.)	Min. flow rate (l./min.) 20	Min. flow rate (l./min.) 20	Min. flow rate (l./min.) 20	Min. flow rate (l./min.) 20
Max. flow rate (l./min.)	Max. flow rate (l./min.) 280	Max. flow rate (l./min.) 270	Max. flow rate (l./min.) 400	Max. flow rate (l./min.) 410
Min. head (m.)	Min. head (m.) 2	Min. head (m.) 2	Min. head (m.) 2	Min. head (m.) 2
Max. head (m.)	Max. head (m.) 31	Max. head (m.) 26	Max. head (m.) 34.5	Max. head (m.) 40
Cable length (m)	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10
Jobs	Jobs drainage, drying up, slightly dirty waters	Jobs drainage, drying up, slightly dirty waters	Jobs slightly dirty waters, drainage, drying up	Jobs slightly dirty waters, drainage, drying up
Max. liquid temperature (°C)	Max. liquid temperature (°C) 40	Max. liquid temperature (°C) 40	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C
Height (cm)	Height (cm) 48.9	Height (cm) 48.9	Height (cm) 48.0	Height (cm) 48.0
Width (cm)	Width (cm) --	Width (cm) --	Width (cm) 25.6	Width (cm) 25.6
Depth (cm)	Depth (cm) --	Depth (cm) --	Depth (cm) 32.9	Depth (cm) 32.9
Weight (Kg)	Weight (Kg) 44.4	Weight (Kg) 42.1	Weight (Kg) 53	Weight (Kg) 54
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
