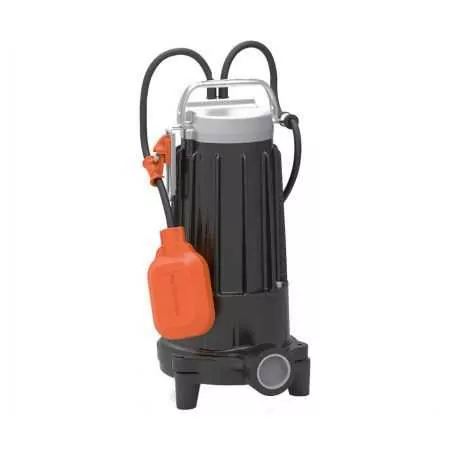

TRm 0.9 - Submersible electric pump with single-phase grinder 1.25 HP

Name: TRm 0.9 - Submersible electric pump with single-phase grinder 1.25 HP
Brand: Pedrollo
SKU: TRm 0.9
Price: 613.97 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 170 l/min (10.2 m³/h). Head up to 16 m. 0.90 Kw (1.25 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The TRm 0.9 grinder pump from the TRITUS series by Pedrollo is made of thick cast iron which ensures exceptional robustness, abrasion resistance and durability over time.

It is equipped with a high-resistance tempered stainless steel shredder that allows for the complete shredding of solid bodies and fibres contained in waste water and waste water in the domestic and civil sectors, for conveyance under pressure into the sewer system through small diameter pipes.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 0.90
Power (HP): 1.25
Absorption at 230V (A): 6
Capacitor: 25 µF450 VL
Delivery mouth: 1 "1/4
Pump body: Cast iron
Impeller: Technopolymer
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Min. flow rate (l./min.): 20
Max. flow rate (l./min.): 170
Min. head (m.): 2
Max. head (m.): 16
Cable length (m): 10
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): 40
Height (cm): 40.6
Weight (Kg): 23.9
Warranty (years): 2

Attachments

TRITUS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the pumps of the TRITUS series by Pedrollo.

Download (5.15MB)

TRm models and performances

GUY

single phase

TRm 0.75

TRm 0.9

TRm 1.1

TRm 1.3

TRm 1.5

POWER
KW	HP
0.75	1
0.9	1.25
1.1	1.5
1.3	1.75
1.5	2

PERFORMANCE
Q litres/min	H meters
20 ÷ 125	16.5 ÷ 2
20 ÷ 170	16 ÷ 2
20 ÷ 140	23 ÷ 2
20÷220	23.5 ÷ 2
20 ÷ 270	26 ÷ 2

MOUTH
DN 40
1 1/4"

Q	m³/hour	0	1.2	2.4	3.6	4.8	6	7.5	8.4	10.2	12	13.2	14.4	16.2	16.8
Q	l/min	0	20	40	60	80	100	125	140	170	200	220	240	270	280
H	meters	16.5	15	13.5	11.8	10	7.5	2
		16	15	13.8	12.5	11.1	9.6	7.5	6	2
		23	21.5	19.5	17.5	15.5	13	9.5	2
		23.5	22.5	21.2	19.8	18.4	17	14.8	13.4	10.2	6.2	2
		26	25	24	22.8	21.7	20.4	18.8	17.8	15.6	13.4	11.7	10	2

Construction data TR 0.75-1.3

Compare with Similar Products

	TRm 0.9 - Submersible electric pump with single-phase grinder 1.25 HP This product Flow rate up to 170 l/min (10.2 m³/h). Head up to 16 m. 0.90 Kw (1.25 HP) motor.	TRm 0.75 - Submersible electric pump with single-phase grinder 1 HP Quick View Flow rate up to 125 l/min (7.2 m³/h). Head up to 16.5 m. 0.75 Kw (1 HP) motor.	TRm 1.1 - Submersible electric pump with single-phase grinder 1.5 HP Quick View Flow rate up to 140 l/min (7.2 m³/h). Head up to 23 m. 1.1 Kw (1.5 HP) motor.	TRm 1.3 - Submersible electric pump with single-phase grinder 1.75 HP Quick View Flow rate up to 220 l/min (13.2 m³/h). Head up to 23.5 m. 1.3 Kw (1.75 HP) motor.
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (Kw)	Power (Kw) 0.90	Power (Kw) 0.75	Power (Kw) 1.1	Power (Kw) 1.3
Power (HP)	Power (HP) 1.25	Power (HP) 1	Power (HP) 1.5	Power (HP) 1.75
Absorption at 230V (A)	Absorption at 230V (A) 6	Absorption at 230V (A) 5.5	Absorption at 230V (A) 7.4	Absorption at 230V (A) 9
Capacitor	Capacitor 25 µF450 VL	Capacitor 25 µF450 VL	Capacitor 25 µF450 VL	Capacitor 25 µF450 VL
Delivery mouth	Delivery mouth 1 "1/4	Delivery mouth 1 "1/4	Delivery mouth 1 "1/4	Delivery mouth 1 "1/4
Pump body	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron
Impeller	Impeller Technopolymer	Impeller Technopolymer	Impeller Technopolymer	Impeller Technopolymer
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Min. flow rate (l./min.)	Min. flow rate (l./min.) 20	Min. flow rate (l./min.) 20	Min. flow rate (l./min.) 20	Min. flow rate (l./min.) 20
Max. flow rate (l./min.)	Max. flow rate (l./min.) 170	Max. flow rate (l./min.) 125	Max. flow rate (l./min.) 140	Max. flow rate (l./min.) 220
Min. head (m.)	Min. head (m.) 2	Min. head (m.) 2	Min. head (m.) 2	Min. head (m.) 2
Max. head (m.)	Max. head (m.) 16	Max. head (m.) 16.5	Max. head (m.) 23	Max. head (m.) 23.5
Cable length (m)	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10
Jobs	Jobs drainage, drying up, slightly dirty waters	Jobs drainage, drying up, slightly dirty waters	Jobs drainage, drying up, slightly dirty waters	Jobs drainage, drying up, slightly dirty waters
Max. liquid temperature (°C)	Max. liquid temperature (°C) 40	Max. liquid temperature (°C) 40	Max. liquid temperature (°C) 40	Max. liquid temperature (°C) 40
Height (cm)	Height (cm) 40.6	Height (cm) 40.6	Height (cm) 40.6	Height (cm) 40.6
Weight (Kg)	Weight (Kg) 23.9	Weight (Kg) 24	Weight (Kg) 25.7	Weight (Kg) 25.5
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
