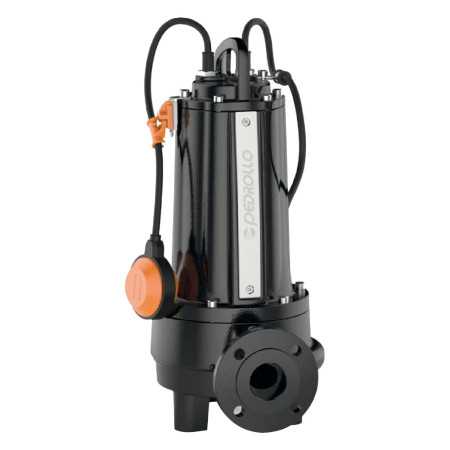

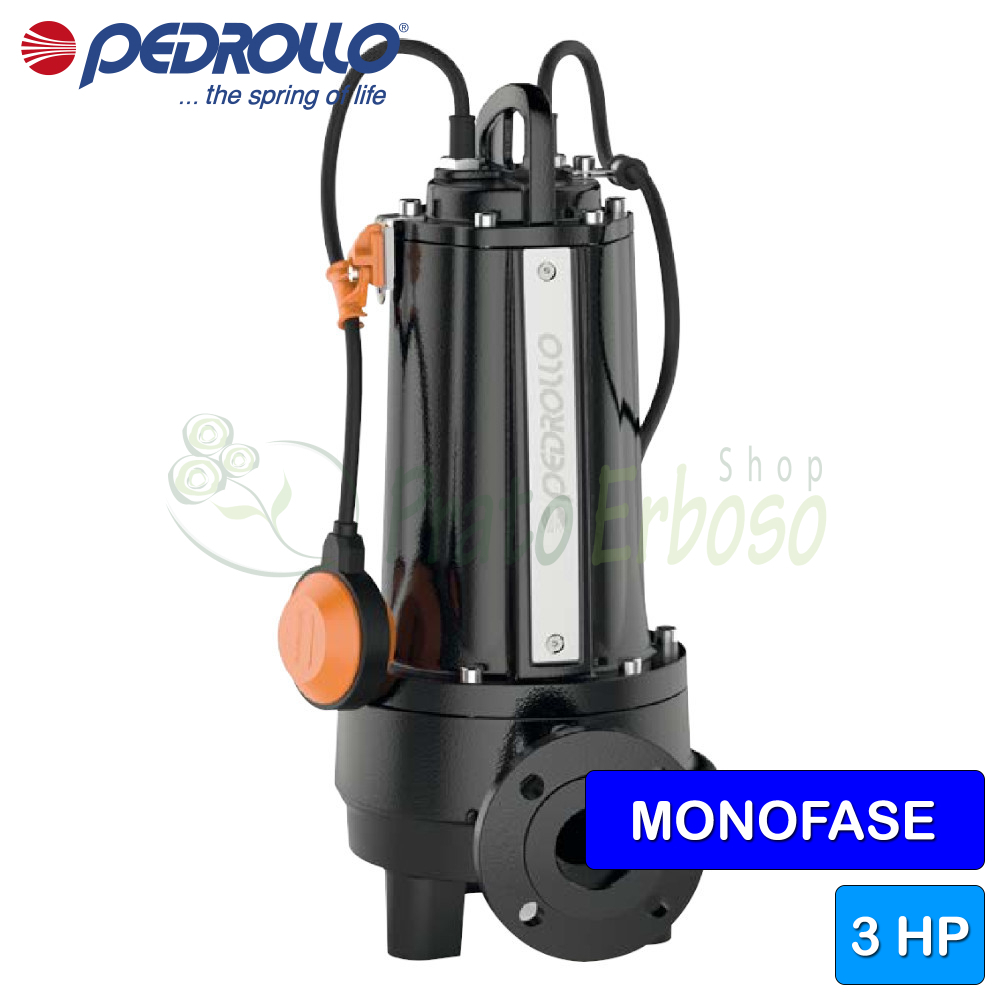

TRm 2.2 AP - 3 HP single-phase submersible electric pump with grinder

Name: TRm 2.2 AP - 3 HP single-phase submersible electric pump with grinder
Brand: Pedrollo
SKU: TRm 2.2 AP
Price: 1433.93 EUR
Availability: InStock

Flow rate up to 275 l/min (16.5 m³/h). Head up to 36.5 m. 2.2 Kw (3 HP) motor.

€1,433.93 Tax included

€1,175.35 Tax excluded

€2,607.14 -45%

Quantity

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The TRm 2.2 AP macerator pump by Pedrollo is recommended for use in the domestic and civil sectors.

Equipped with a high-resistance tempered stainless steel shredder that allows for the complete shredding of solid bodies and fibres contained in waste water.

Particularly suitable for pressurized conveyance in the sewer system through small diameter pipes.

The flow rate ranges from 20 to 275 litres per hour and the head ranges from 2 to 36.5 metres.

The TRm 2.2 AP macerator pump stands out for its excellent and robust construction. Made of thick cast iron, it is robust, abrasion-resistant, and long-lasting.

It can be installed up to 10 meters below water level.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 2.2
Power (HP): 3
Absorption at 230V (A)
Delivery mouth: 1" 1/2
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 400
Min. head (m.): 2
Max. head (m.): 34.5
Cable length (m.)
Jobs: slightly dirty waters, drainage, drying up
Max. liquid temperature (°C): +40°C
Height (cm): 48.0
Width (cm): 25.6
Depth (cm): 32.9
Weight (Kg): 53
Warranty (years): 2

Attachments

TRITUS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the pumps of the TRITUS series by Pedrollo.

Download (6.03MB)

TRm AP models and performances

TYPE

single-phase

TRm 2.2 AP

POWER
KW	HP
2.2	3

PERFORMANCES
Q liters/min	H meters
20 ÷ 275	36.5 ÷ 2

MOUTH
DN 40
1 1/4"

Q	m³/hour	0	1.2	3	6	9	12	15	16.5	18	18.3
Q	l/min	0	20	50	100	150	200	250	275	300	305
H	meters	36.5	35	33	28.5	23.8	18.7	13.2	2
