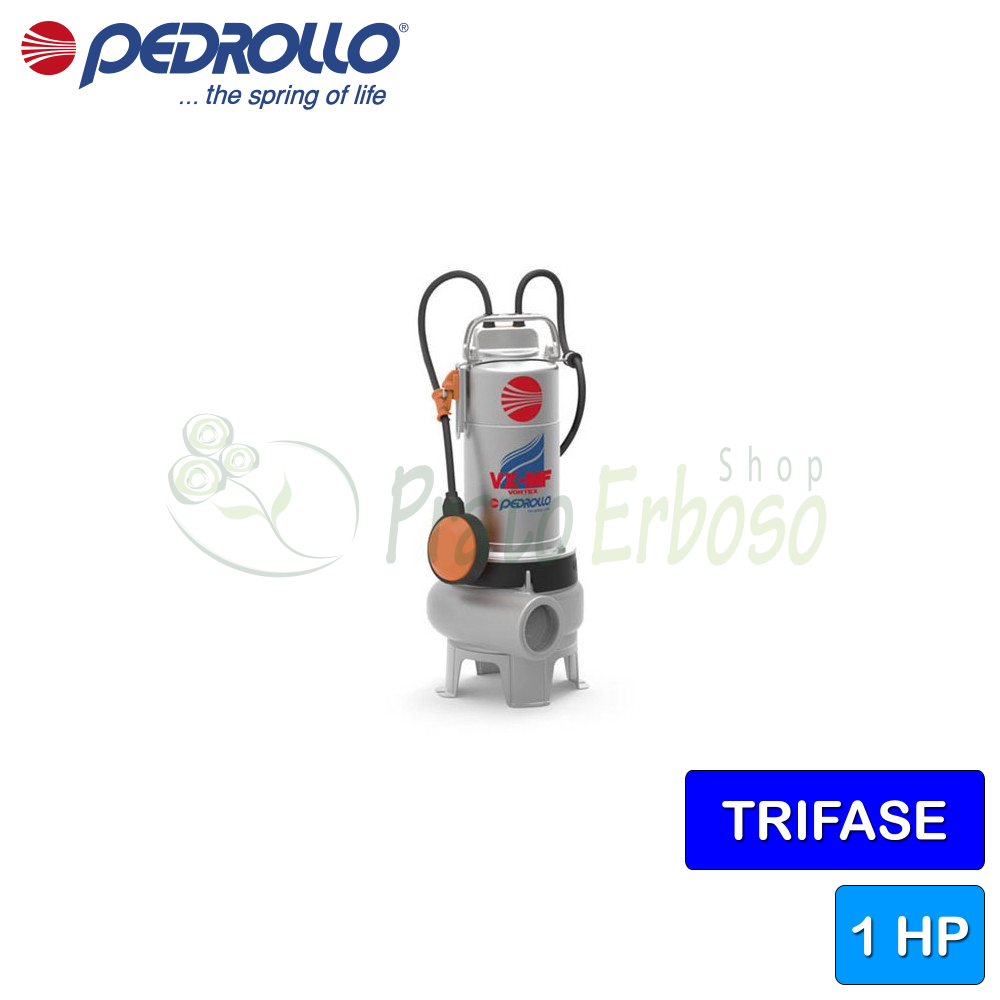

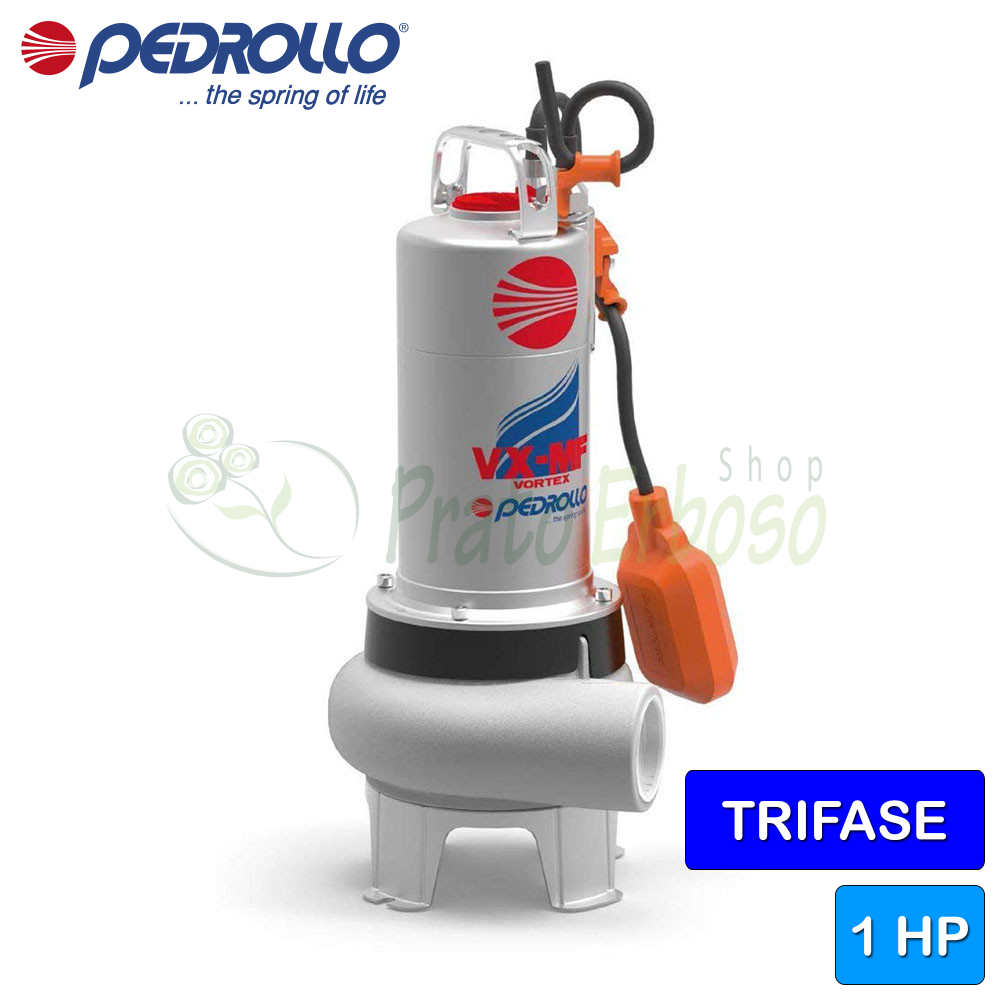

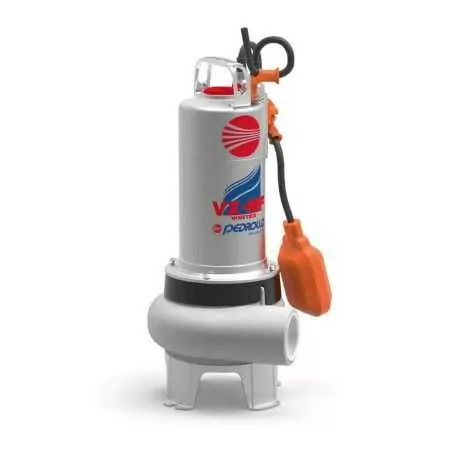

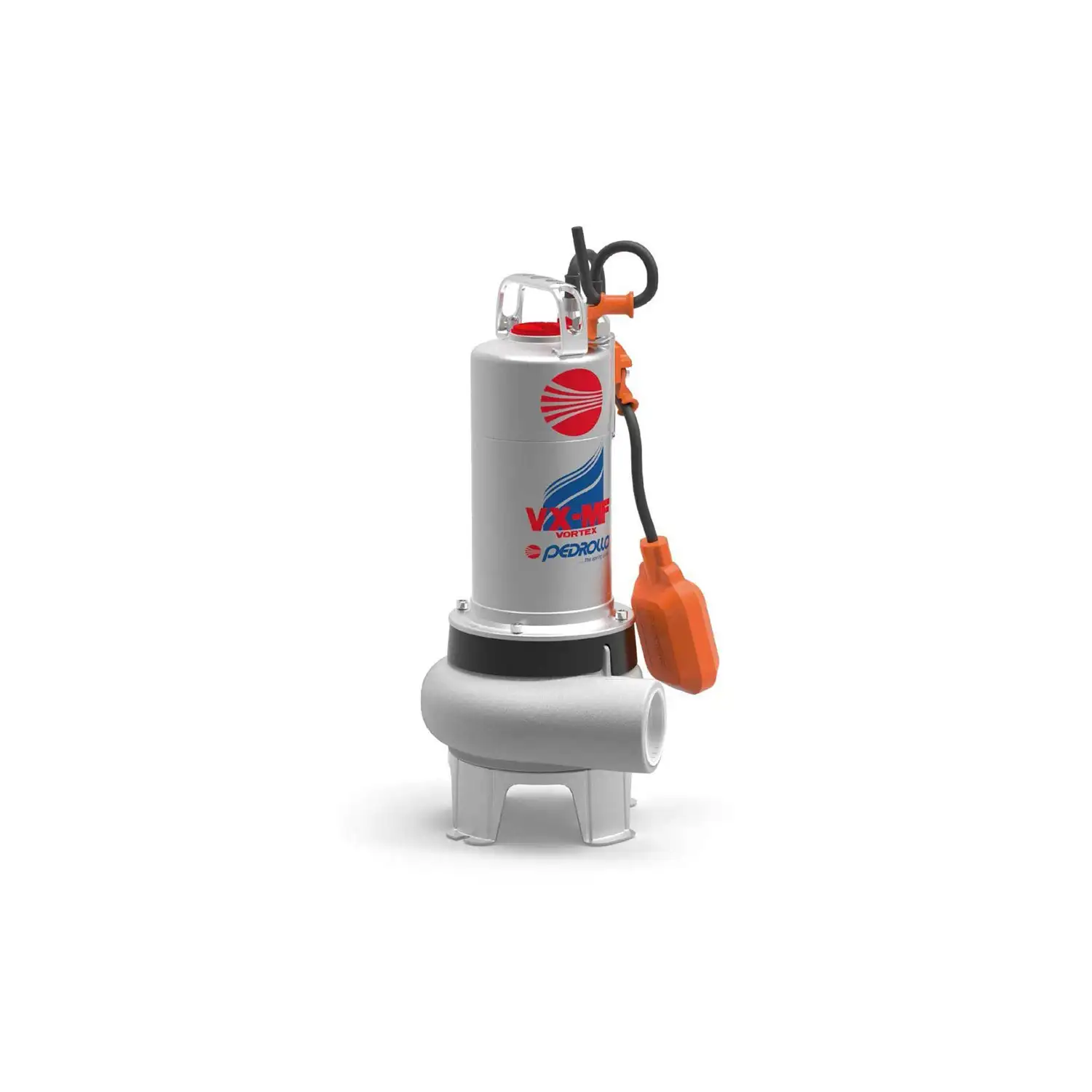

VX 10/35-MF - 1 HP three-phase VORTEX sewage pump
Flow rate up to 400 l/min (24 m³/h). Head up to 11 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VX 10/35-MF submersible electric pump from the VX-MF series by Pedrollo is characterised by particular resistance to corrosion and abrasion.
Pedrollo has made the electric pump entirely of stainless steel for greater resistance and solidity.
The capabilities of the VX 10/35-MF are evident in extreme working situations.
The vortex impeller allows the pumping of solids with a diameter of up to 50 millimetres and ensures safe operation against clogging.
It can be installed up to 5 meters below water level.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Current consumption at 400V (A)
- 2
- Delivery mouth
- 1" 1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 2
- Max. head (m.)
- 11
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 41
- Weight (Kg)
- 12.5
- Warranty (years)
- 2
VX/35-MF Models and Performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VX-MF series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4404 (AISI 316L) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
