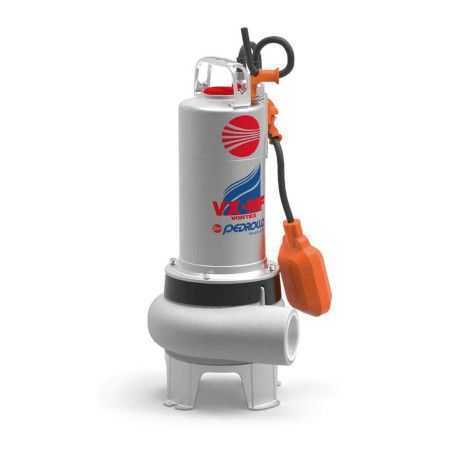

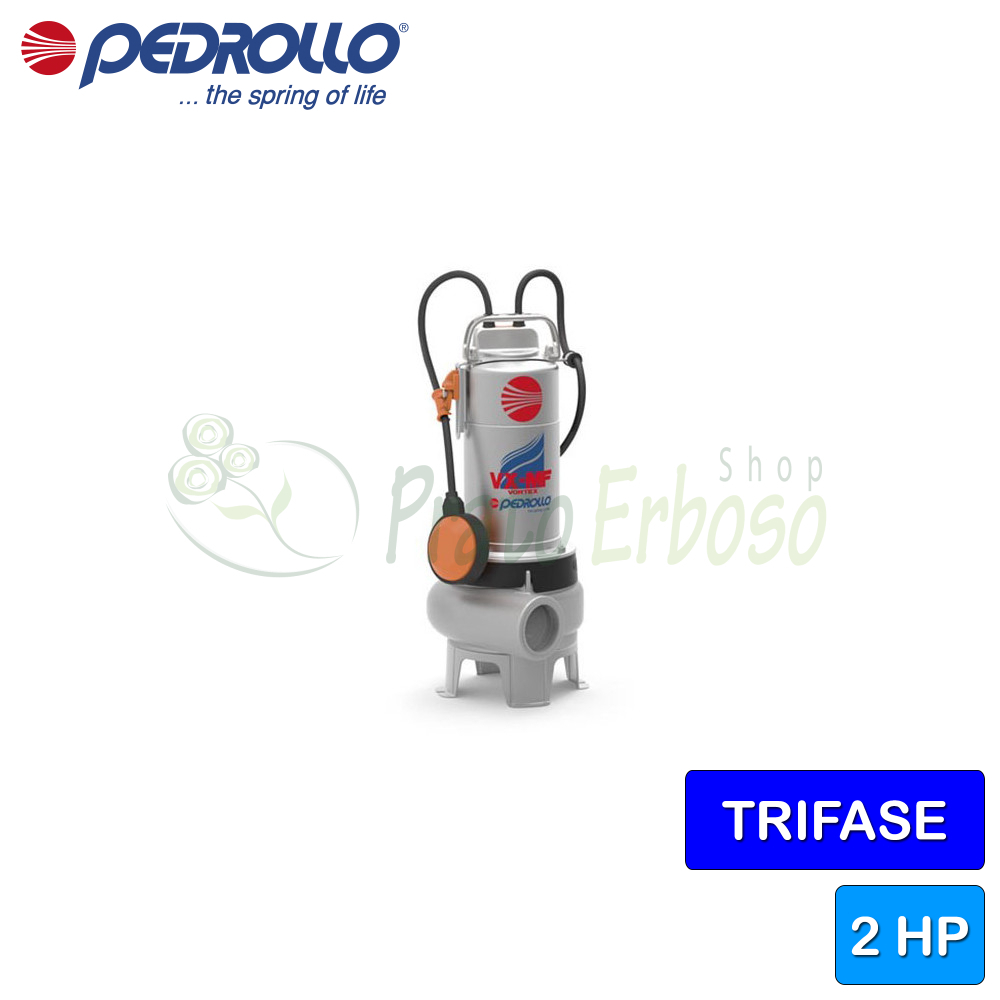

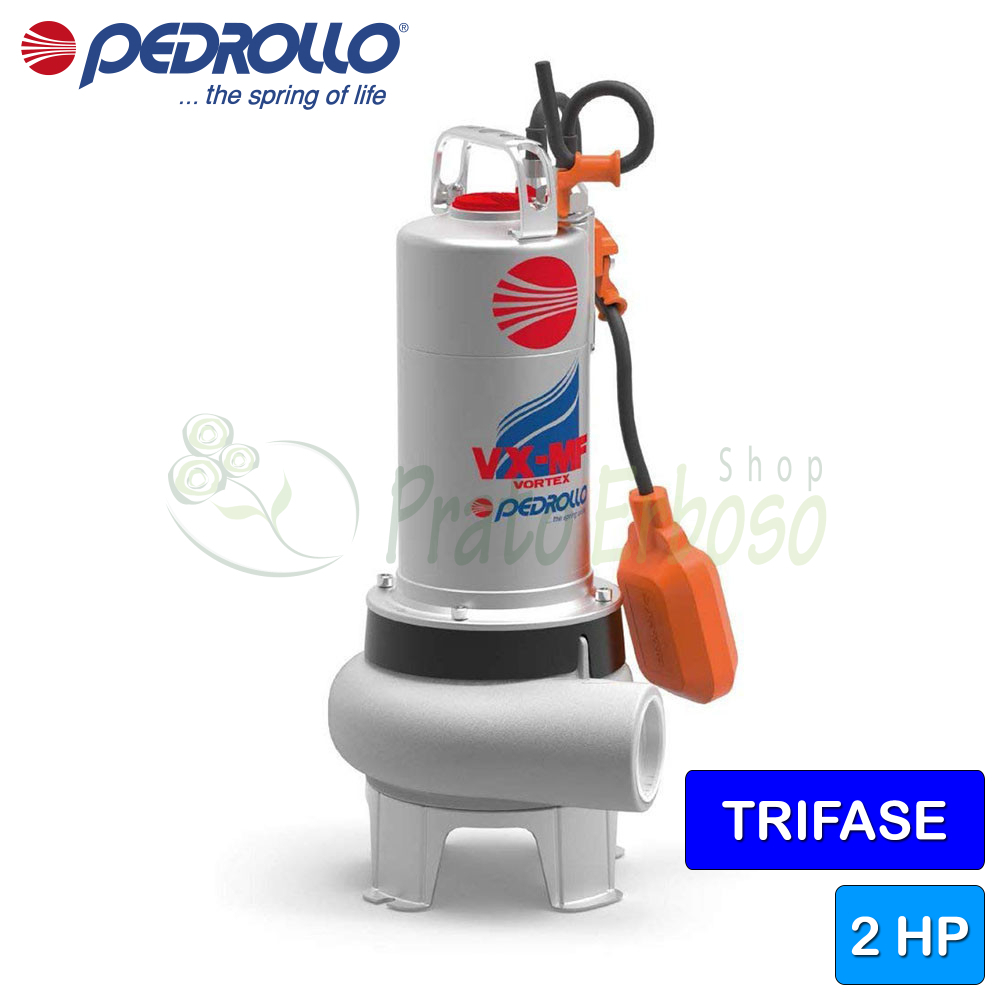

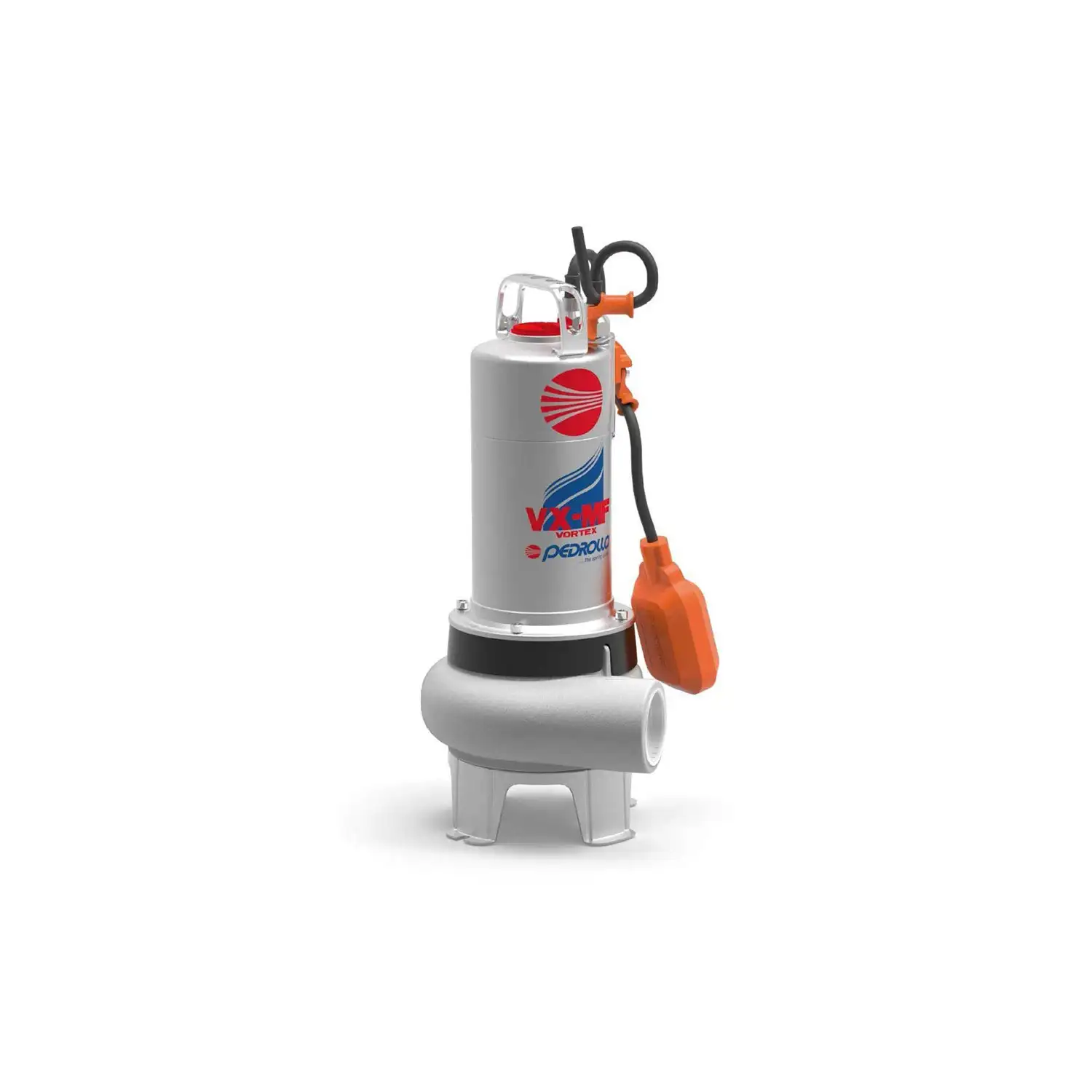

VX 20/50-MF - 2 HP three-phase VORTEX sewage pump

Name: VX 20/50-MF - 2 HP three-phase VORTEX sewage pump
Brand: Pedrollo
SKU: VX 20/50-MF
Price: 628.35 EUR
Availability: InStock

Flow rate up to 750 l/min (45 m³/h). Head up to 13.5 m. 1.5 kW (2 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo VX 20/50-MF three-phase electric pump is recommended for draining flooded areas such as basements, underground car parks, car wash areas, for emptying cesspits and for disposing of sewage.

Designed to withstand adverse working conditions for the drainage of sewage in the domestic, civil and industrial sectors, in all cases where suspended solids are present in the water, for example water mixed with mud, groundwater, surface water.

Built entirely of stainless steel and characterised by particular resistance to corrosion and abrasion.

The geometry of the impeller and volute of the VX 20/50-MF allow for excellent performance which also translates into significant energy savings.

The vortex impeller allows the pumping of solids with a diameter of up to 50 millimetres and, thanks to its particular geometry, guarantees safe operation against clogging.

The flow rate ranges from 50 to 750 liters per minute. The head ranges from 2.5 to 13.5 meters.

It can be installed up to 5 meters below water level.

The supplied cable that Pedrollo provides for the VX 20/50-MF is 10 meters long.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.5
Power (HP): 2
Absorption at 230V (A): 7.1
Current consumption at 400V (A)
Capacitor: 25 µF 450 VL
Delivery mouth: 2"
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 304 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 650
Min. head (m.): 2
Max. head (m.): 11.5
Cable length (m.): 10
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): +40°C
Height (cm): 44.7
Weight (Kg): 15.4
Warranty (years): 2

Attachments

VX-MF data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo VX-MF series pumps.

Download (1.29MB)

Construction data of the VX 15/35-MF

Bearings

Pump side motor bearing	6303 2RS - C3
Opposite side engine bearing	6203 ZZ

Tree holding

Type of seal	Double mechanical seal in oil chamber
LM diameter	14
LM fixed ring	Silicon carbide
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	MG1-14D SIC
LP diameter	14
LP fixed ring	Silicon carbide
LP rotating ring	Silicon carbide
LP elastomer	NBR

Materials

1.0 - Pump body	Stainless steel EN 1.4404 (AISI 316L)
1.4 - Basic	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Stainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaft	Stainless steel EN 1.4404 (AISI 316L)
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Stainless steel EN 1.4301 (AISI 304)
7.0 - Lantern	Cast iron GJL 200 EN 1561

VX/50-MF Models and Performance

TYPE

three-phase

VX 8/50-MF

VX 10/50-MF

VX 15/50-MF

VX 20/50-MF

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2

PERFORMANCES
Q liters/min	H meters
50 ÷ 450	6.5 ÷ 1.5
50 ÷ 550	9 ÷ 1.5
50 ÷ 650	11.5 ÷ 2
50 ÷ 750	13.5 ÷ 2.5

MOUTH

mand.

SOLID BODIES

Ø 50

Q	m³/hour	0	3	6	12	18	24	27	30	33	36	39	45
Q	l/min	0	50	100	200	300	400	450	500	550	600	650	750
H	meters	6.5	6	5.8	5	4	2.5	1.5
		9	8.5	8.2	7.5	6.5	5	3.8	2.5	1.5
		11.5	11	10.5	9.8	8.7	7.5	6.5	5.5	4.5	3.5	2
		13.5	13	12.5	11.5	10.7	9.5	9	8	7.5	6.5	5	2.5
