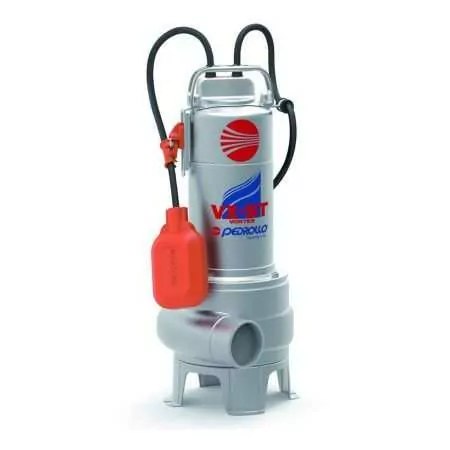

VXm 15/35-ST - Single-phase VORTEX electric pump for sewage water, 1.5 HP
Flow rate up to 500 l/min (35 m³/h). Head up to 14 m. 1.1 Kw (1.5 HP) motor.
Variants:
Order it before 57 minutes and receive it between 30-12-2024 and 31-12-2024 with SDA - 2 giorni Italia
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
Description
The VX-ST series pumps are recommended for the drainage of waste water in the domestic, civil and industrial sectors, in all cases where suspended solids are present in the water, for example water mixed with mud, groundwater, surface water.
Its use is recommended for draining flooded areas such as basements, underground car parks, car wash areas, for emptying cesspits and for the disposal of sewage.
The VX-ST pumps are made of stamped stainless steel, particularly robust and highly reliable, and offer high performance for professional, chemical and industrial use.
These pumps are distinguished by their reliability, in fixed installations with automatic operation.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 7.4
- Capacitor
- 25 µF450 VL
- Delivery port
- 1 "1/2
- Body Pump
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 500
- Min head (m.)
- 2
- Max head (m.)
- 15
- Cable length (m)
- 10
- Employments
- drainage, drying up, slightly dirty waters
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 42.1
- Weight kg)
- 13.1
- Guarantee
- 2
VXm-ST models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VX 15/35-ST
Bearings
| Pump side motor bearing | 6203 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
