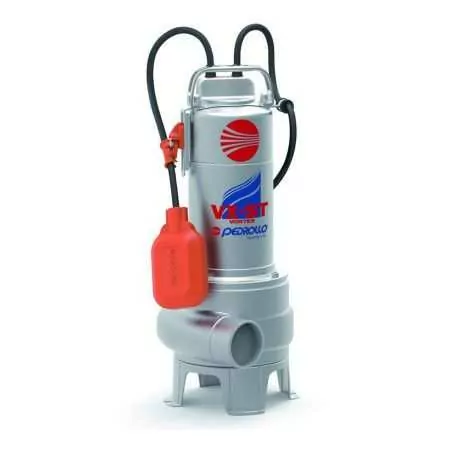

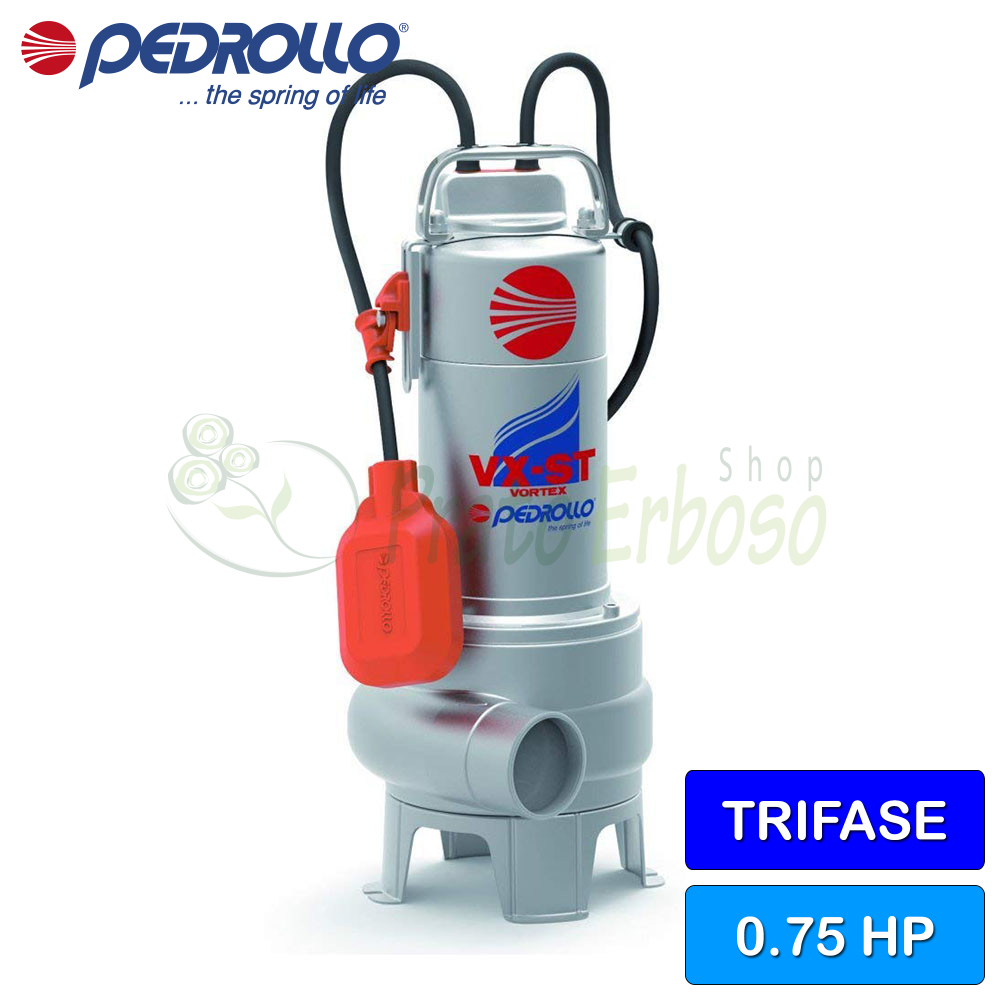

VX 8/35-ST - 0.75 HP three-phase VORTEX electric sewage pump
Flow rate up to 350 l/min (21 m³/h). Head up to 9.5 m. 0.55 Kw (0.75 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VX 8/35-ST submersible electric pump from the VX-ST series by Pedrollo stands out for its power and performance.
High performance and efficiency are possible thanks to the hydraulic geometry of the volute and the VORTEX impeller.
The VORTEX impeller allows the passage of solid bodies with a diameter of up to 40 millimetres and, thanks to its geometry, guarantees safe operation against clogging.
The VX 8/35-ST is recommended for draining flooded areas, emptying cesspits and disposing of sewage.
Built entirely of stainless steel, it is characterised by particular resistance to corrosion and abrasion.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Current consumption at 400V (A)
- 1.7
- Delivery mouth
- 1" 1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 1
- Max. head (m.)
- 9.5
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 40.6
- Weight (Kg)
- 10.6
- Warranty (years)
- 2
Construction data of the VX 8/35-ST
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
VX /35-ST Models and Performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
