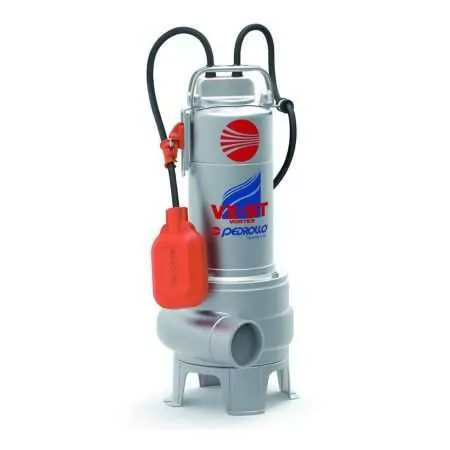

VXm 20/50-ST - Single-phase VORTEX electric pump for sewage water, 2 HP
Flow rate up to 700 l/min (42 m³/h). Head up to 15 m. 1.5 Kw (2 HP) motor.
The Pedrollo VXm 20/50-ST submersible electric pump is designed with the aim of creating a powerful and robust high-efficiency pump completely in stainless steel.
This electric pump is designed to be used in the domestic, civil and industrial sectors.
The use of the VXm 20/50-ST is recommended for draining flooded areas such as cellars, underground car parks, car wash areas, for emptying cesspits and for disposing of sewage.
The hydraulic geometry of the volute and the VORTEX impeller allow for maintaining high efficiency in terms of performance and consequently significant energy savings.
The VORTEX impeller of the VXm 20/50-ST allows the pumping of solids with a diameter of up to 50 millimetres and, thanks to its special geometry, guarantees safe operation against clogging.
It can be used up to 5 meters below water level.
The pump comes with a 10 meter power cable.
The flow rate ranges from 50 to 700 liters per minute. The head ranges from 3 to 15 meters.
The VXm 20/50-ST must be powered by a single-phase voltage, has a horsepower of 2 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 7.1
- Delivery port
- 2"
- Body Pump
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 650
- Min head (m.)
- 2
- Max head (m.)
- 13.5
- Employments
- drainage, drying up, slightly dirty waters
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 44.5
- Weight kg)
- 13.2
- Guarantee
- 2
Bearings
| Pump side motor bearing | 6203 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
