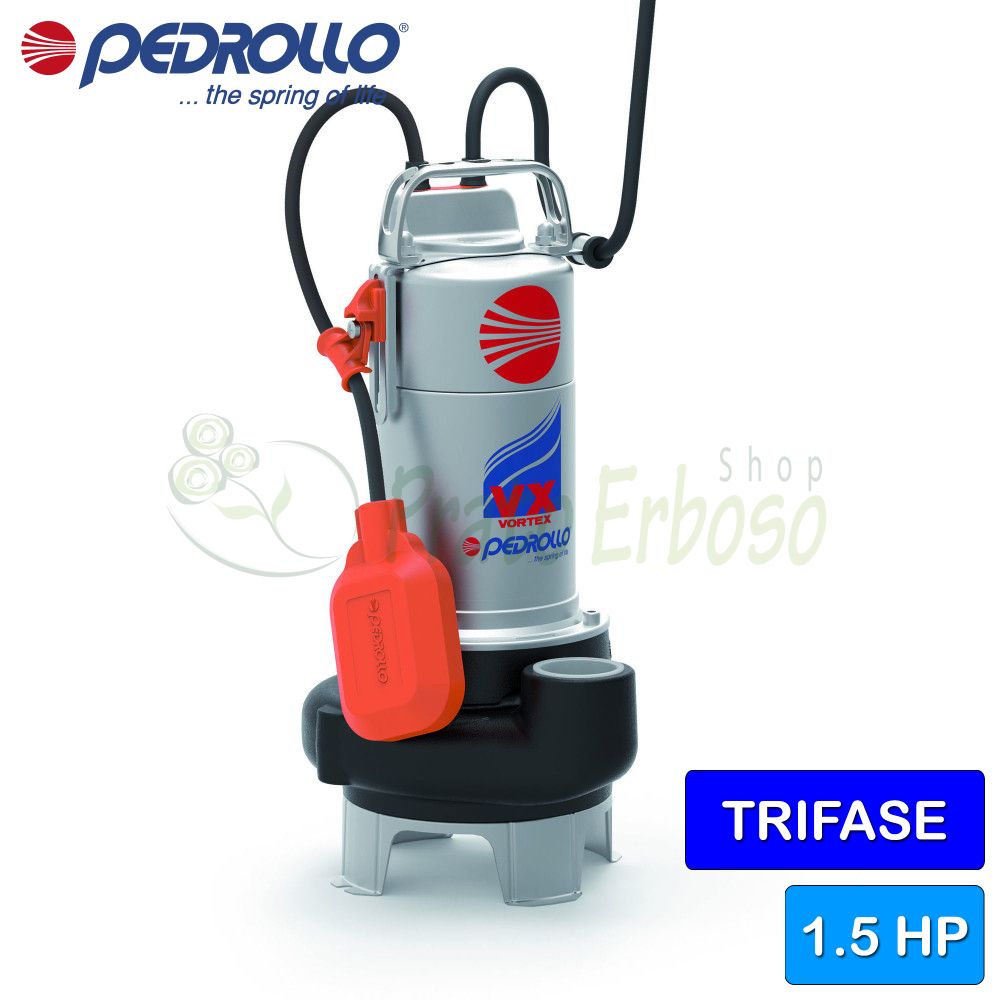

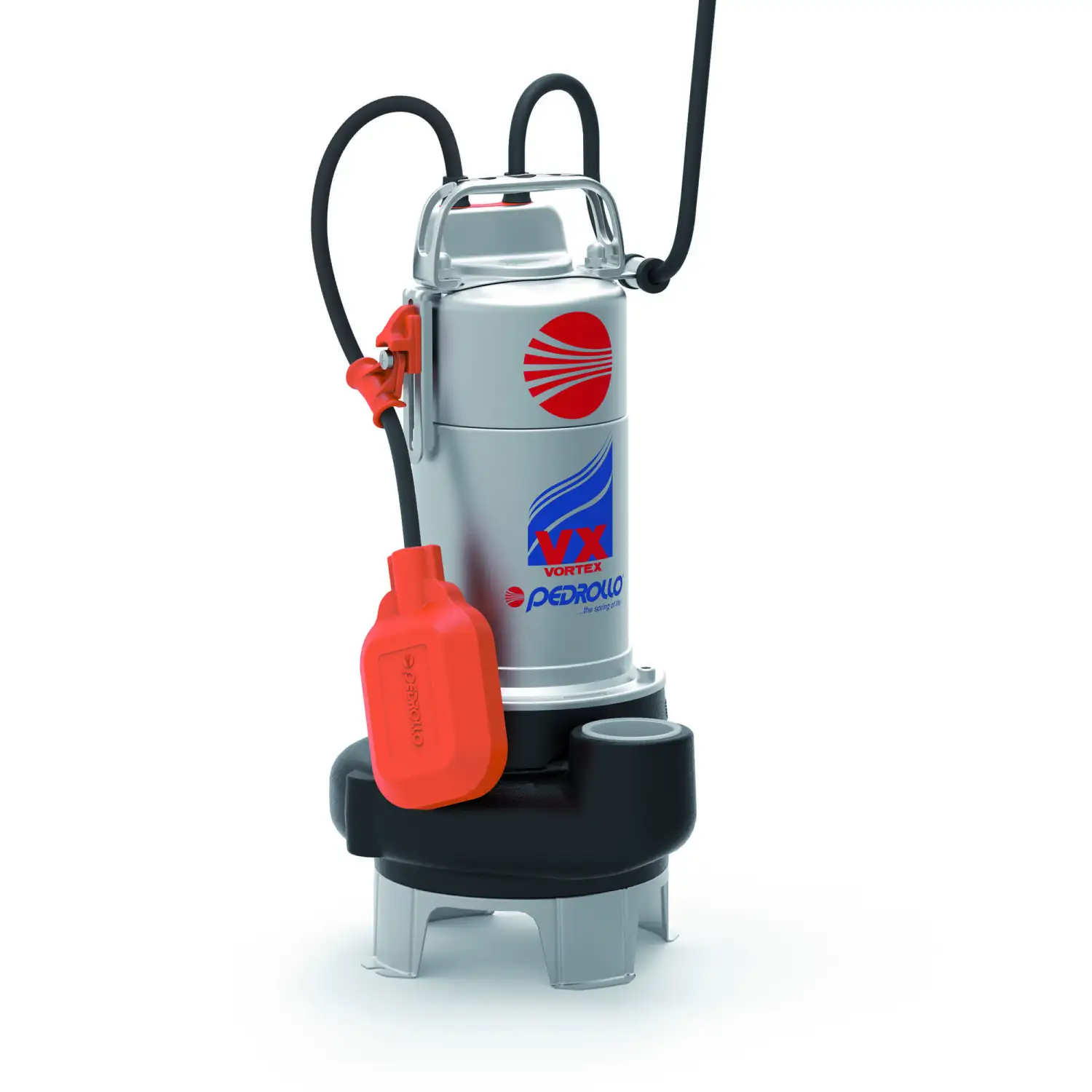

VX 15/35 - 1.5 HP three-phase VORTEX electric pump for waste water OFFER
Flow rate up to 500 l/min (30 m³/h). Head up to 14 m. 1.1 kW (1.5 HP) motor.
The Pedrollo VX 15/35 electric pump is the ideal solution when the working conditions and required performance are demanding.
Recommended for domestic, civil, and industrial use. It is recommended for draining flooded areas such as basements, underground parking lots, car wash areas, for domestic wastewater, emptying cesspits, and disposing of sewage.
The Vortex impeller of the VX 15/35 allows the pumping of solids with a diameter of up to 50 millimetres and, thanks to its special geometry, guarantees safe operation against clogging.
The flow rate ranges from 50 to 550 litres per hour and the head ranges from 2 to 14 metres.
The electric pump can be installed up to 5 meters below the water level.
The supplied power cable is 10 meters long.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 2
- Max. head (m.)
- 14
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.1
- Width (cm)
- 24.3
- Weight (Kg)
- 14.5
- Warranty (years)
- 2
