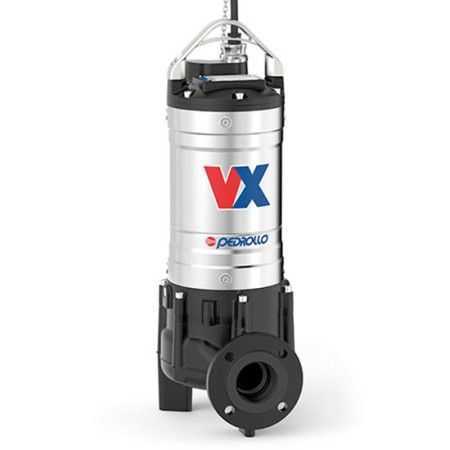

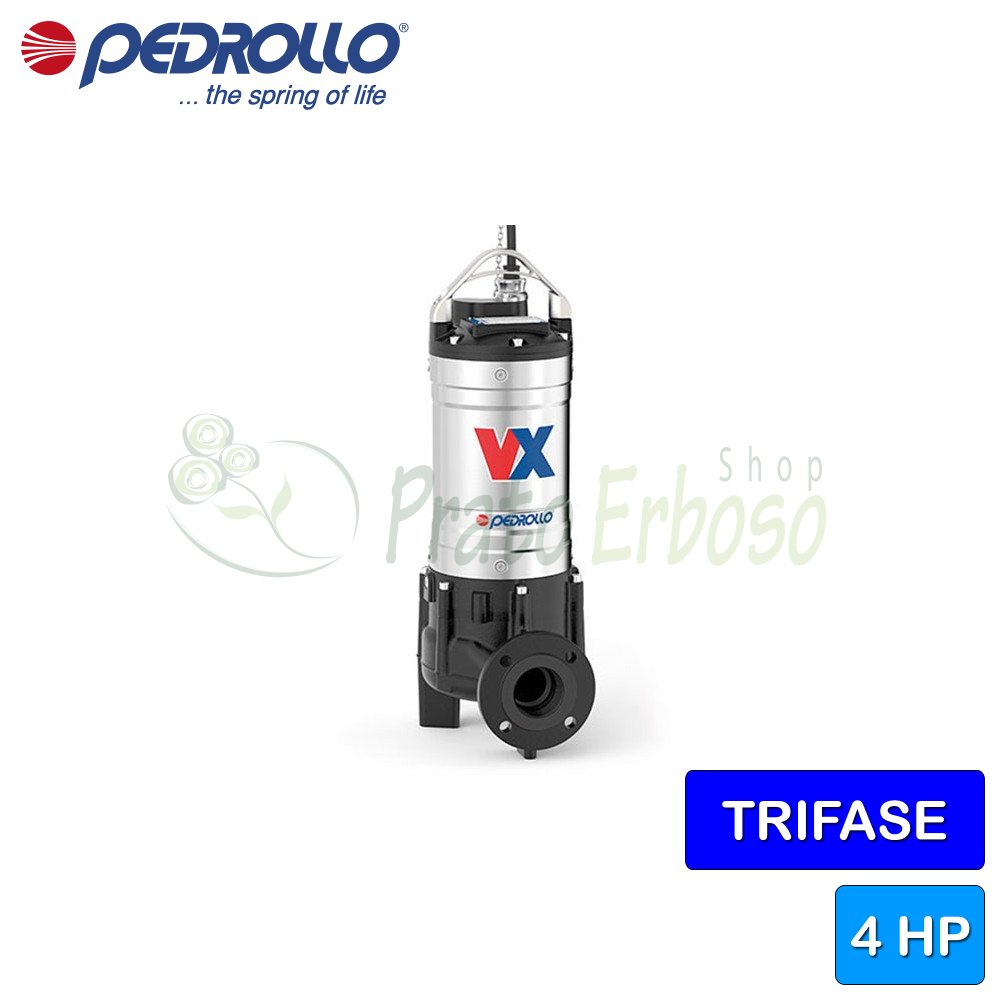

VX 40/80 - 4 HP three-phase VORTEX electric pump for waste water

Name: VX 40/80 - 4 HP three-phase VORTEX electric pump for waste water
Brand: Pedrollo
SKU: VX 40/80
Price: 1244.03 EUR
Availability: InStock

Flow rate up to 1200 l/min (72 m³/h). Head up to 12.5 m. 3 kW (4 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo VX 40/80 Vortex impeller electric pump is suitable for installation in sewers, tunnels, excavations, canals and underground car parks.

Pedrollo has designed and manufactured this pump with the aim of guaranteeing long-term operation and performance.

The VX 40/80 electric pump is equipped with a Vortex impeller recommended for operational reliability and low risk of clogging.

Suitable for pumping sewage with suspended solids, waste water, rain water, sewage, municipal sewage, industrial waste water.

The flow rate ranges from 200 to 1200 litres per hour and the head ranges from 3 to 12.5 metres.

The pump can be installed up to 10 meters below the water level.

The VX 40/80 electric pump is built in stainless steel and cast iron of considerable thickness to promote resistance and guarantee durability over time.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 3
Power (HP): 4
Current consumption at 400V (A): 6.2
Delivery mouth: 2"
Pump body: Cast iron
Impeller: Cast iron
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 200
Max. flow rate (l./min.): 1200
Min. head (m.): 2.5
Max. head (m.): 17
Cable length (m.): 10
Jobs: air conditioning systems, drying up, slightly dirty waters
Max. liquid temperature (°C): +40°C
Height (cm): 63
Width (cm): 27.7
Depth (cm)
Weight (Kg): 53.3
Warranty (years): 2

Attachments

VX 40 data sheet

Models, performance curves and construction features of the VX 40 Pedrollo pumps.

Download (1.65MB)

Construction data of the VX 40/65

Bearings

Pump side motor bearing	6306 ZZ C3
Opposite side engine bearing	6304 ZZ C3

Tree holding

Type of seal	Double Mechanical Seal in tandem with oil chamber
Engine side model	AR-27
LM diameter	27
LM fixed ring	Silicon carbide
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	AR-25
LP diameter	25
LP fixed ring	Silicon carbide
LP rotating ring	Silicon carbide
LP elastomer	NBR

Materials

1.0 - Pump body	Cast iron GJL 200 EN 1561
3.0 - Impeller	Cast iron GJL 200 EN 1561
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Cast iron GJL 200 EN 1561
7.0 - Lantern	Cast iron GJL 200 EN 1561

VX 80 Models and Performance

TYPE

three-phase

VX 40/80

VX 55/80

VX 75/80

POWER
KW	HP
3	4
4	5.5
5.5	7.5

PERFORMANCES
Q liters/min	H meters
200 ÷ 1200	12.5 ÷ 3
200 ÷ 1400	16.5 ÷ 4
200 ÷ 1800	22 ÷ 4.5

MOUTH

mand.

SOLID BODIES

Ø 80

Q	m³/hour	0	12	24	36	48	60	72	84	96	108
Q	l/min	0	200	400	600	800	1000	1200	1400	1600	1800
H	meters	12.5	11.5	10.2	8.5	6.7	5	3
		16.5	16	14.4	12.5	10.3	8	6	4
		22	21	19.2	17.4	15.2	13	10.7	8.4	6.4	4.5
