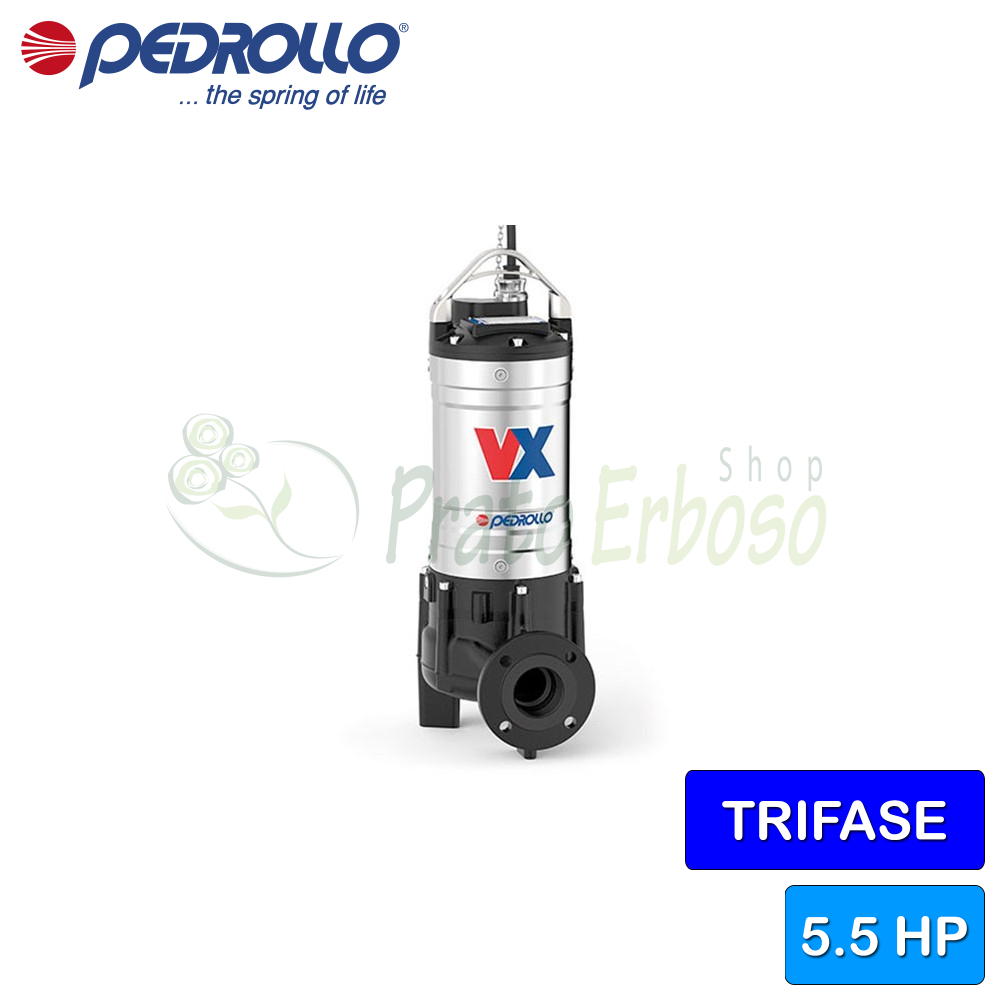

VX 55/50 - 5.5 HP three-phase VORTEX electric pump for waste water
Flow rate up to 1000 l/min (60 m³/h). Head up to 22 m. 4 Kw (5.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
Description
The VX 55/50 pump built in stainless steel and cast iron of considerable thickness ensures exceptional strength, resistance to abrasion and durability over time.
It is equipped with a VORTEX type impeller, therefore suitable for draining dirty, sewage, waste water, water mixed with mud, revived and putrid sludge.
It is suitable for installation in sewers, tunnels, excavations, canals, underground car parks.
Data sheet
- Motor connection
- THREE-PHASE
- Power (HP)
- 5.5
- Absorption at 400V (A)
- 7
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 1000
- Min. head (m.)
- 6.5
- Max. head (m.)
- 25
- Cable length (m)
- 10
- Jobs
- air conditioning systems, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 64.2
- Width (cm)
- 27.6
- Warranty (years)
- 2
VX 50 models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VX40/50
Bearings
| Pump side motor bearing | 6306 ZZ C3 |
| Opposite side engine bearing | 6304 ZZ C3 |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 25 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ED560-25 |
| LP diameter | 25 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
