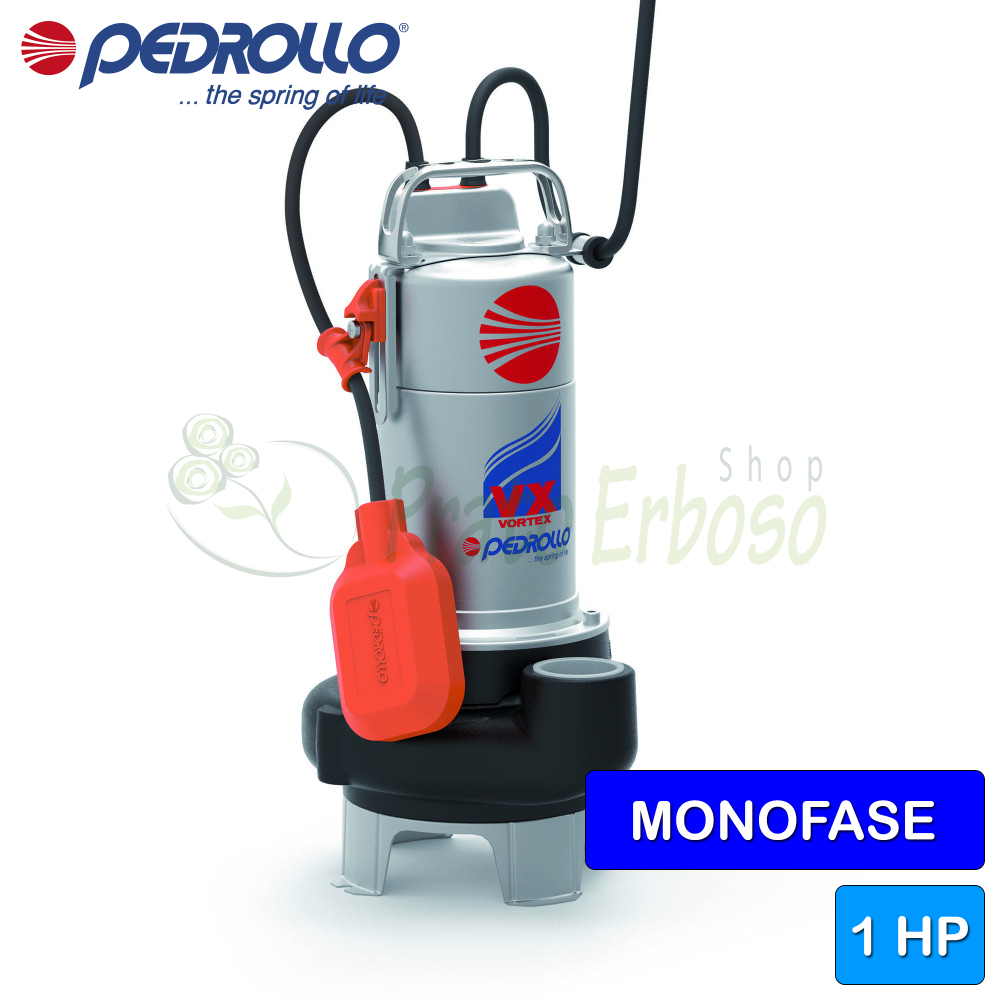

VXm 10/35 (10m) - 1 HP single-phase VORTEX electric pump for waste water
Flow rate up to 400 l/min (24 m³/h). Head up to 11 m. 0.75 Kw (1 HP) motor. 10 meters of cable with shuko plug.









It is recommended for domestic, civil and industrial use, in all cases where suspended solids of up to Ø 40 mm are present in the water, for example groundwater, surface water, sewage and loaded water.
Its use is recommended for draining flooded areas, such as basements, underground car parks, car wash areas, for domestic waste water, emptying cesspits, and disposing of sewage.
This pump stands out for its reliability, especially in fixed installations with automatic operation.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.8
- Capacitor
- 20 µF450 VL
- Delivery mouth
- 1 "1/2
- Pump body
- Cast iron and AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 2
- Max. head (m.)
- 11
- Cable length (m)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 41
- Width (cm)
- 24.3
- Weight (Kg)
- 13.7
- Warranty (years)
- 2
|
|
|
|
|
|
Compare with Similar Products
![]() VXm 10/35 (10m) - 1 HP single-phase VORTEX electric pump for waste waterThis product Flow rate up to 400 l/min (24 m³/h). Head up to 11 m. 0.75 Kw (1 HP) motor. 10 meters of cable with shuko plug. | ![]() VXm 8/35 (10m) - Single-phase VORTEX electric pump for waste water, 0.75 HPFlow rate up to 350 l/min (21 m³/h). Head up to 9 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable with shuko plug. | ![]() VXm 8/50 (10m) - Single-phase VORTEX electric pump for waste water, 0.75 HPFlow rate up to 450 l/min (27 m³/h). Head up to 6.5 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable with shuko plug. | ![]() VXm 10/50 (10m) - 1 HP single-phase VORTEX electric pump for waste waterFlow rate up to 550 l/min (33 m³/h). Head up to 9 m. 0.75 Kw (1 HP) motor. 10 meters of cable with shuko plug. | |
---|---|---|---|---|
Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.55 | Power (Kw) 0.55 | Power (Kw) 0.75 |
Power (HP) | Power (HP) 1 | Power (HP) 0.75 | Power (HP) 0.75 | Power (HP) 1 |
Absorption at 230V (A) | Absorption at 230V (A) 4.8 | Absorption at 230V (A) 3.5 | Absorption at 230V (A) 3.7 | Absorption at 230V (A) 5.0 |
Capacitor | Capacitor 20 µF450 VL | Capacitor 20 µF450 VL | Capacitor 20 µF450 VL | Capacitor 20 µF450 VL |
Delivery mouth | Delivery mouth 1 "1/2 | Delivery mouth 1 "1/2 | Delivery mouth 2" | Delivery mouth 2" |
Pump body | Pump body Cast iron and AISI 304 stainless steel | Pump body Cast iron | Pump body AISI 304 stainless steel | Pump body Cast iron and AISI 304 stainless steel |
Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
Min. flow rate (l./min.) | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 |
Max. flow rate (l./min.) | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 350 | Max. flow rate (l./min.) 450 | Max. flow rate (l./min.) 550 |
Min. head (m.) | Min. head (m.) 2 | Min. head (m.) 1 | Min. head (m.) 1.5 | Min. head (m.) 1.5 |
Max. head (m.) | Max. head (m.) 11 | Max. head (m.) 9 | Max. head (m.) 6.5 | Max. head (m.) 9 |
Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
Max. liquid temperature (°C) | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 |
Height (cm) | Height (cm) 41 | Height (cm) 41 | Height (cm) 43.2 | Height (cm) 43.1 |
Width (cm) | Width (cm) 24.3 | Width (cm) 24.3 | Width (cm) 24.3 | Width (cm) 24.3 |
Weight (Kg) | Weight (Kg) 13.7 | Weight (Kg) 12.8 | Weight (Kg) 13.3 | Weight (Kg) 14.2 |
Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
