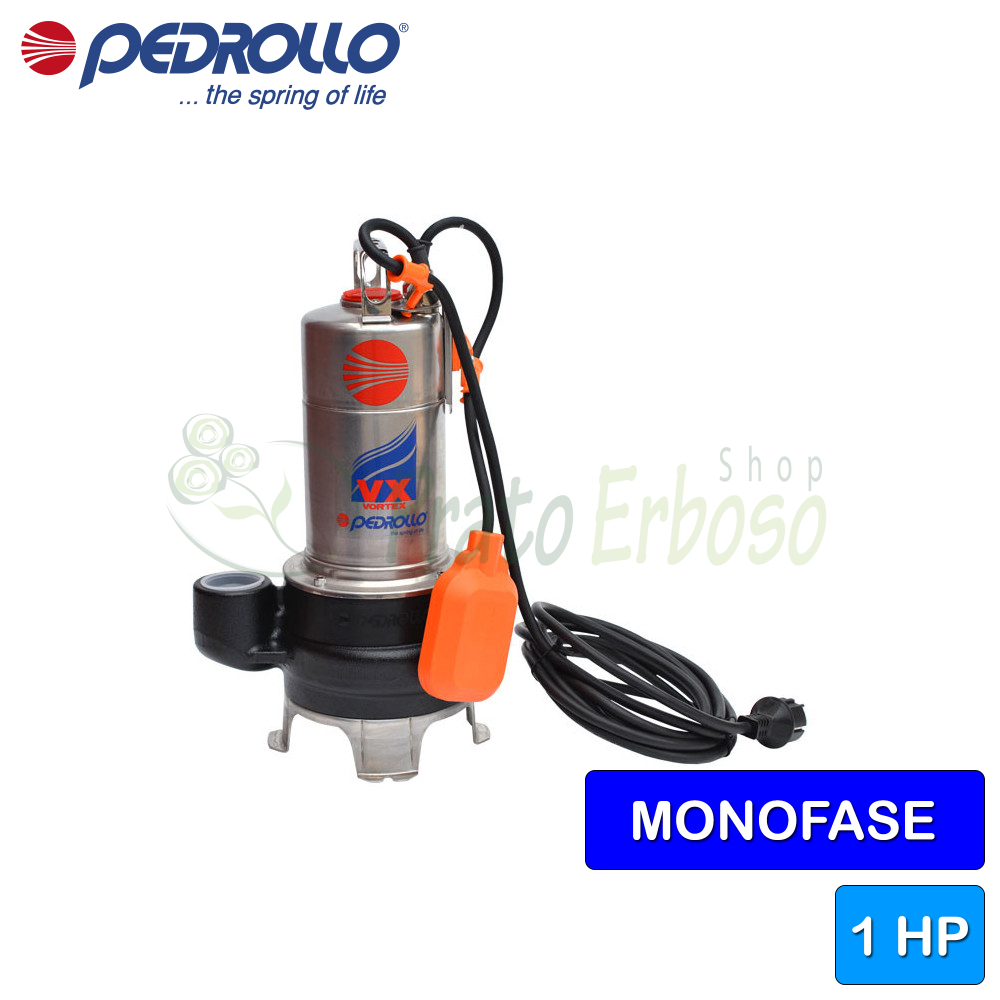

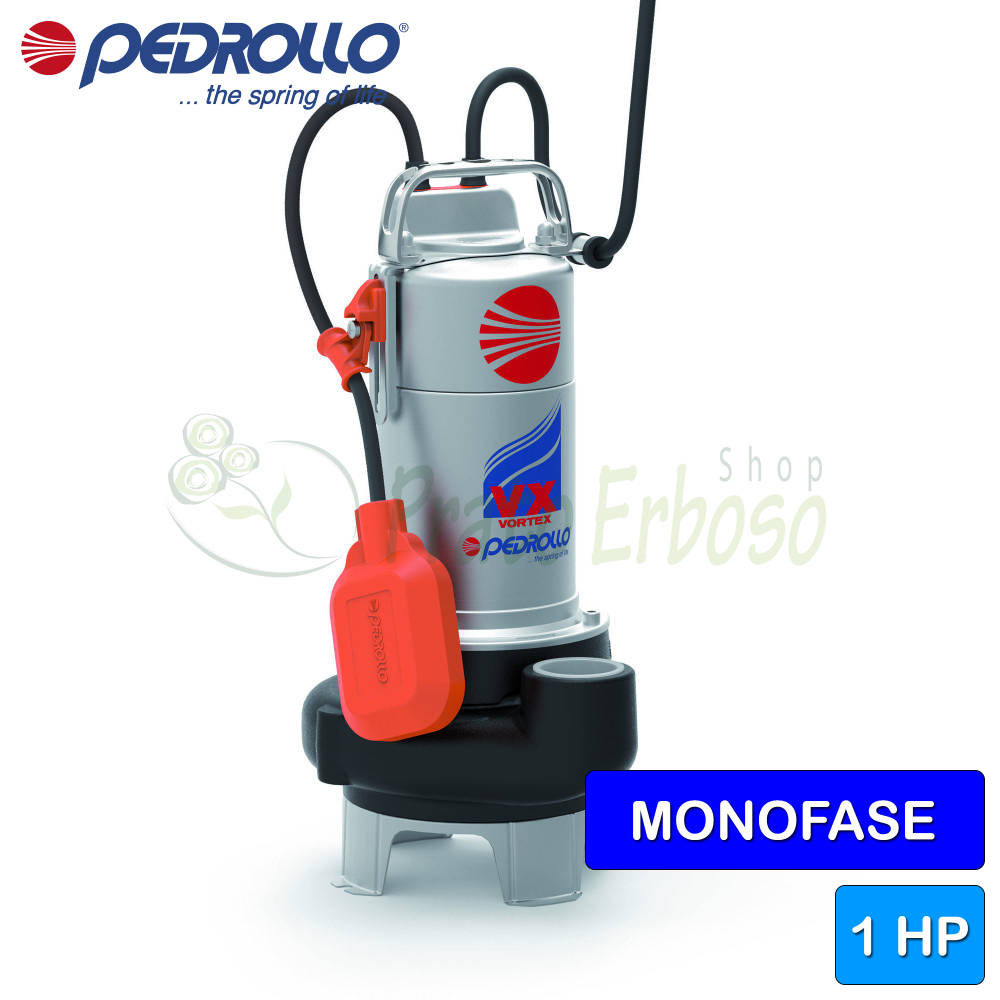

VXm 10/50 (5m) - 1 HP single-phase VORTEX electric pump for waste water

Name: VXm 10/50 (5m) - 1 HP single-phase VORTEX electric pump for waste water
Brand: Pedrollo
SKU: VXm 10/50 5MT
Price: 271.72 EUR
Availability: InStock
Rating: 5 (2 reviews)

Flow rate up to 550 l/min (33 m³/h). Head up to 9 m. 0.75 Kw (1 HP) motor. 5 meters of cable with shuko plug.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo VXm 10/50-N electric pump is recommended for domestic, civil and industrial use, in all cases where the water contains suspended solids up to Ø 40 millimetres in diameter, for example groundwater, surface water, sewage and loaded water.

Its use is recommended for draining flooded areas, such as basements, underground car parks, car wash areas, for domestic waste water, emptying cesspits, and disposing of sewage.

This pump stands out for its reliability, especially in fixed installations with automatic operation.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 5.0
Capacitor: 20 µF450 VL
Delivery mouth: 2"
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Min. flow rate (l./min.): 50
Max. flow rate (l./min.): 550
Min. head (m.): 1.5
Max. head (m.): 9
Cable length (m): 5
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): 40
Height (cm): 43.1
Width (cm): 24.3
Weight (Kg): 14.3
Warranty (years): 2

Attachments

Data sheet VX

Models, performance curves and construction features of Pedrollo pumps of the VX series.

Download (1.48MB)

Models and performances VXm 35-50

GUY

single phase

VXm 8/35

VXm 10/35

VXm 8/50

VXm 10/50

VXm 15/50

POWER
KW	HP
0.55	0.75
0.75	1
0.55	0.75
0.75	1
1.1	1.5

PERFORMANCE
Q litres/min	H meters
50 ÷ 350	8 ÷ 1
50 ÷ 400	11 ÷ 2
50 ÷ 450	6.5 ÷ 1.5
50 ÷ 550	9 ÷ 1.5
50 ÷ 650	11.5 ÷ 2

MOUTH

send.

1 1/2"

SOLID BODIES

Ø 40

Ø 50

Q	m³/hour	0	3	6	12	18	21	24	27	30	33	36	39	45
Q	l/min	0	50	100	200	300	350	400	450	500	550	600	650	750
H	meters	9	8	7.5	5.5	2.7	1
		11	10	9.5	8	5.7	4	2
		6.5	6	5.8	5	4	3.3	2.5	1.5
		9	8.5	8.2	7.5	6.5	5.8	5	3.8	2.5	1.5
		11.5	11	10.5	9.8	8.7	8	7.5	6.5	5.5	4.5	3.5	2

Construction data of the VX50 series

Bearings

Pump side motor bearing	6203 ZZ
Opposite side engine bearing	6203 ZZ

Tree holding

Type of seal	Double mechanical seal in oil chamber
LM diameter	14
LM fixed ring	Silicon carbide
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	MG1-14D SIC
LP diameter	14
LP fixed ring	Silicon carbide
LP rotating ring	Silicon carbide
LP elastomer	NBR

Materials

1.0 - Pump body	Cast iron GJL 200 EN 1561
1.4 - Basic	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Stainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Stainless steel EN 1.4301 (AISI 304)
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
