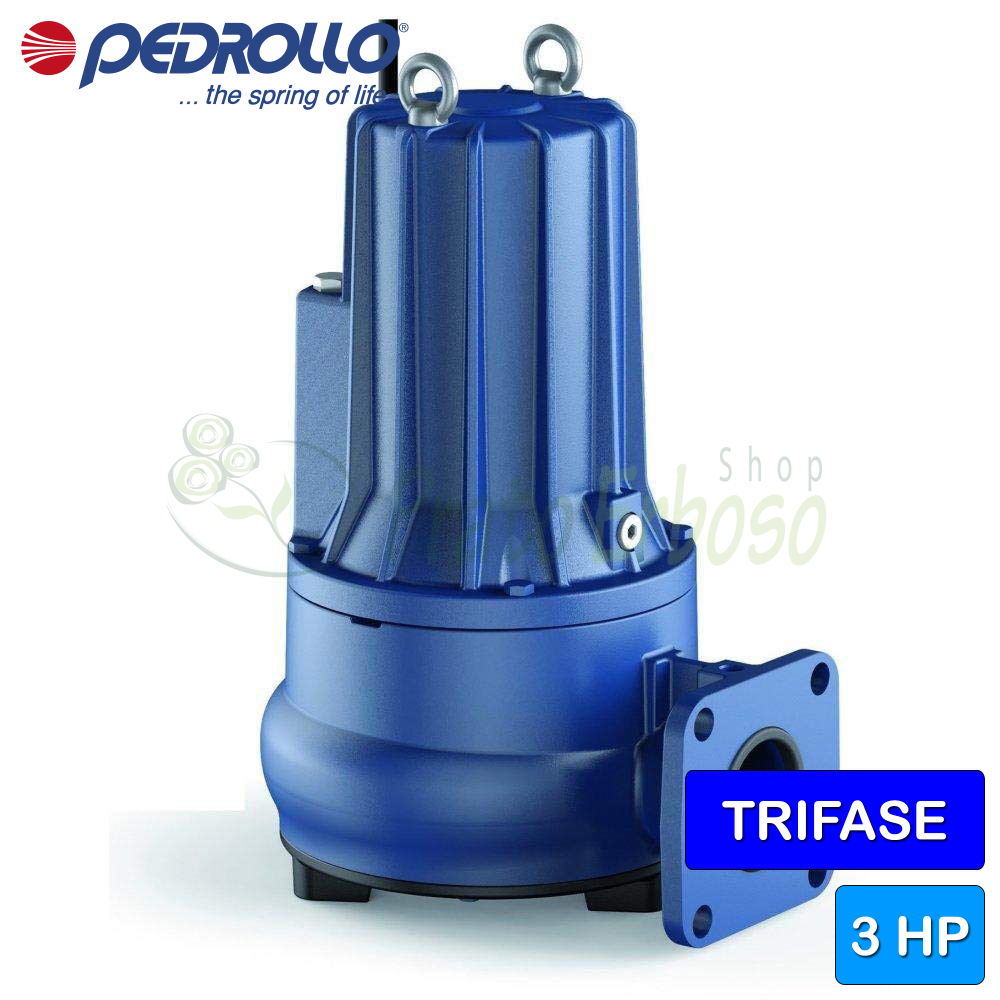

VXC 30/65-F - 3 HP three-phase VORTEX sewage pump
Flow rate up to 1200 l/min (72 m³/h). Head up to 12 m. 2.2 Kw (3 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VXC series electric pumps, built in cast iron of considerable thickness and exceptional strength as well as resistance to abrasion and durability over time, are equipped with a VORTEX type impeller.
Suitable for draining waste water, water mixed with mud, liquids containing air or gas, as well as aerated and putrid sludge.
They are recommended for fixed installation in sewers, tunnels, wells, underground car parks, within special manholes.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 400V (A)
- 5.5
- Delivery port
- 3 "
- Body Pump
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 200
- Max flow (l./min.)
- 1200
- Min head (m.)
- 1.5
- Max head (m.)
- 11
- Cable length (m)
- 10
- Employments
- drainage, drying up, slightly dirty waters
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 45.8
- Weight kg)
- 43.2
- Guarantee
- 2
VXC-F models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VXCm 15/50-F
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
