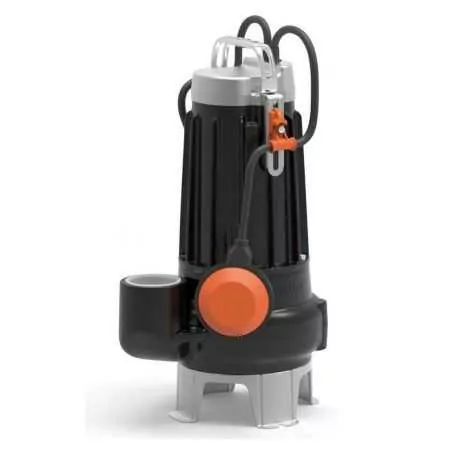

VXC 10/35 - 1 HP three-phase VORTEX electric pump for waste water
Flow rate up to 400 l/min (24 m³/h). Head up to 10 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
Description
New version of the VXC series completely designed and made even more reliable with the introduction of the double mechanical seal and the cataphoresis treatment of all cast iron parts.
This treatment guarantees high resistance to oxidation.
The VXC series pumps, built in cast iron of considerable thickness, exceptional strength and resistance to abrasion, are equipped with a VORTEX type impeller.
They are recommended for the drainage of water containing suspended solids, sewage, waste water and water mixed with mud.
Data sheet
- Motor connection
- THREE-PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 3.5
- Absorption at 400V (A)
- 2
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 35
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 400
- Min head (m.)
- 2
- Max head (m.)
- 11
- Liquid temperature max. (° C)
- +40°C
- Height (cm)
- 38.8
- Weight kg)
- 17.8
- Guarantee
- 2
VXC 35-45 models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VXC series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
