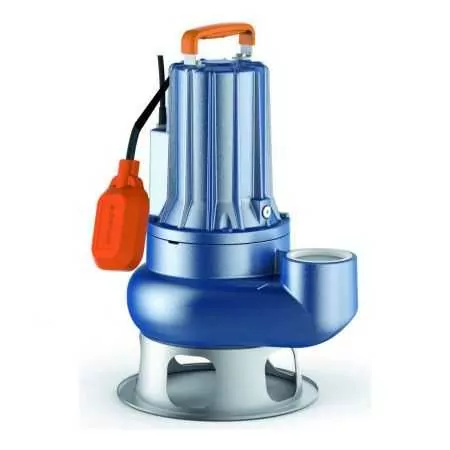

VXCm 20/50 - 2 HP Single-Phase VORTEX Electric Pump for Sewage Water

Name: VXCm 20/50 - 2 HP Single-Phase VORTEX Electric Pump for Sewage Water
Brand: Pedrollo
SKU: VXCm 20/50-N
Price: 728.83 EUR
Availability: InStock

Flow rate up to 700 l/min (42 m³/h). Head up to 13.5 m. 1.5 Kw (2 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The VXC series pumps, built in cast iron of considerable thickness, exceptional strength and resistance to abrasion and durability over time, are equipped with a VORTEX type impeller.

They are suitable for draining dirty, sewage, waste water, water mixed with mud, revived and putrid sludge.

Suitable for installation in sewers, tunnels, excavations, canals, underground car parks, etc.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.5
Power (HP): 2
Absorption at 230V (A): 9, 6.4
Absorption at 400V (A): 3.7
Delivery mouth: 2 "1/2
Pump body: Cast iron
Impeller: Cast iron
Number of impellers: 50
Crankshaft: AISI 431 stainless steel
Min. flow rate (l./min.): 100
Max. flow rate (l./min.): 700
Min. head (m.): 2.5
Max. head (m.): 13.5
Cable length (m): 10
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): +40°C
Height (cm): 48.7
Weight (Kg): 43
Warranty (years): 2

Attachments

VXC 50-70 data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo VXC 50-70 series pumps.

Download (1.56MB)

Models and performances VXCm 50-65

GUY

single phase

VXcm 15/50

VXcm 20/50

VXcm 30/50

VXcm 15/65

VXcm 20/65

VXcm 30/65

POWER
KW	HP
1.1	1.5
1.5	2
2.2	3
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
100 ÷ 600	12.0 ÷ 2.5
100 ÷ 700	13.5 ÷ 2.5
100 ÷ 850	16.5 ÷ 2.5
200 ÷ 850	8.0 ÷ 1.0
200 ÷ 1000	9.5 ÷ 1.0
200 ÷ 1200	12.0 ÷ 1.5

MOUTH

send.

2 1/2"

SOLID BODIES

Ø 50

Ø 65

Q	m³/hour	0	6	12	18	24	30	36	42	51	60	63	72	75
Q	l/min	0	100	200	300	400	500	600	700	850	1000	1050	1200	1250
H	meters	12.0	11.0	9.9	8.6	7.0	5.0	2.5
		13.5	12.5	11.4	10.2	8.7	7.0	5.0	2.5
		16.5	15.5	14.4	13.2	11.9	10.3	8.5	6.4	2.5
		8.0	-	7.0	6.0	5.0	3.9	2.9	2.0	1.0
		9.5	-	8.5	7.6	6.6	5.4	4.3	3.3	2.0	1.0
		12.0	-	11.1	10.3	9.3	8.2	7.0	5.8	4.1	2.6	2.3	1.5

Construction data of the VXC 50 - 65 series

Bearings

Pump side motor bearing	6305 CM D 6
Opposite side engine bearing	6204 ZZ-C3

Tree holding

Type of seal	Double Mechanical Seal in tandem with oil chamber
Engine side model	STA-22
LM diameter	22
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	STA-20
LP diameter	20
LP fixed ring	Silicon carbide
LP rotating ring	Silicon carbide
LP elastomer	NBR

Materials

1.0 - Pump body	Cast iron GJL 200 EN 1561
3.0 - Impeller	Cast iron GJL 200 EN 1561
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
6.0 - Motor holder	Cast iron GJL 200 EN 1561
6.1 - Engine cover	Cast iron GJL 200 EN 1561
