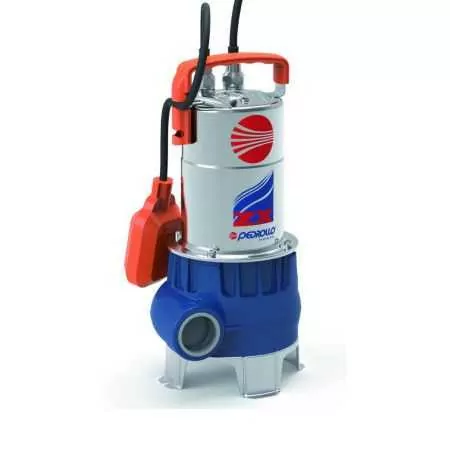

ZXm 1B/40 (10m) - 0.70 HP VORTEX submersible electric pump for dirty water
Flow rate up to 350 l/min (21 m³/h). Head up to 9 m. 0.50 kW (0.70 HP) motor. 10-meter cable with Schuko plug.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October

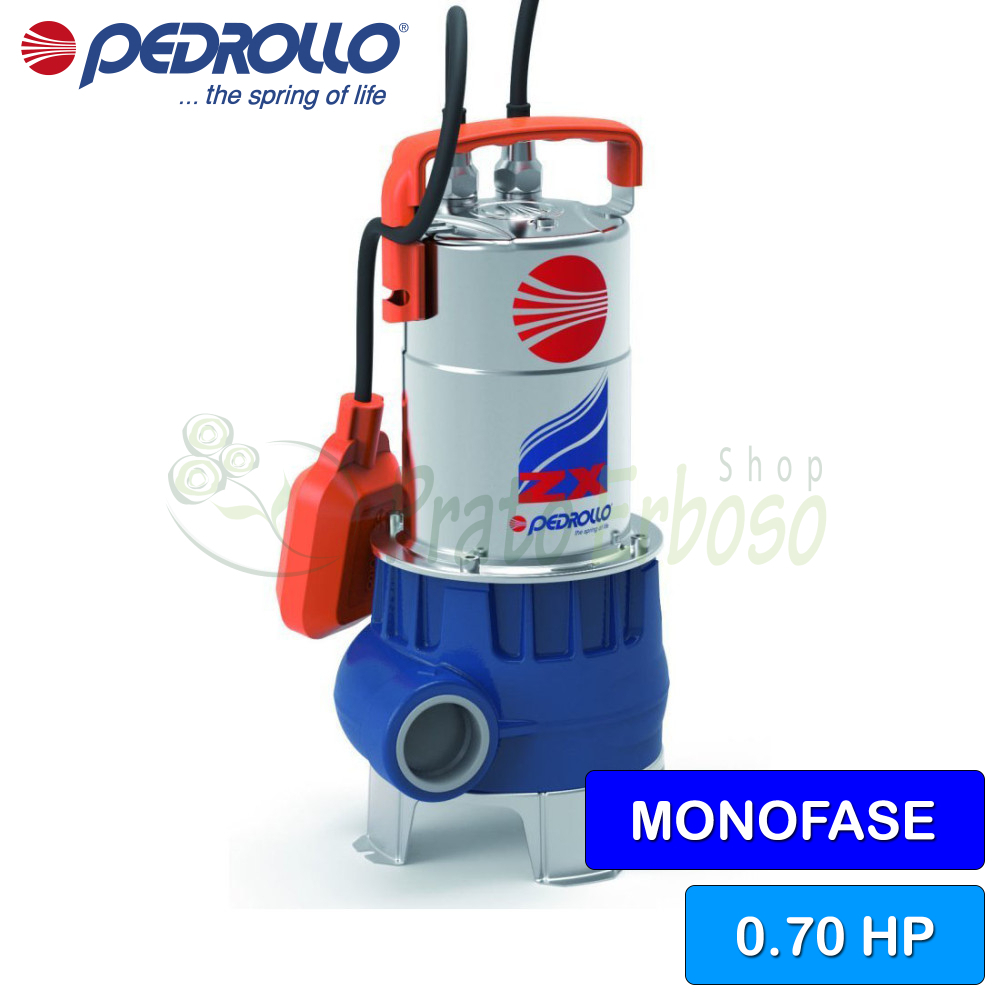

The ZXm 1B/40 submersible electric pump from the ZXm 1 series by Pedrollo is suitable for fixed installations with automatic operation.
Recommended for domestic installations, for the evacuation of waste water, even in the presence of suspended solids with dimensions up to 40 millimetres.
It can be installed up to 5 meters below the water level. For continuous operation, it requires a minimum immersion depth of 240 mm.
Pedrollo has created a solid and robust product thanks to the use of cast iron and AISI 304 and 431 stainless steel.
The ZXm 1B/40 stands out for its ease of use and reliability.
- Jobs
- drainage, drying up, slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.70
- Absorption at 230V (A)
- 3.3
- Capacitor
- 12.5 µF 450 VL
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 1
- Max. head (m.)
- 9
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/2
- Height (cm)
- 37.8
- Weight (Kg)
- 11.6
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- drainage, drying up, slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.70
- Absorption at 230V (A)
- 3.3
- Capacitor
- 12.5 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 1
- Max. head (m.)
- 9
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 37.8
- Weight (Kg)
- 11.6
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | DC04 EN 10130 steel |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
