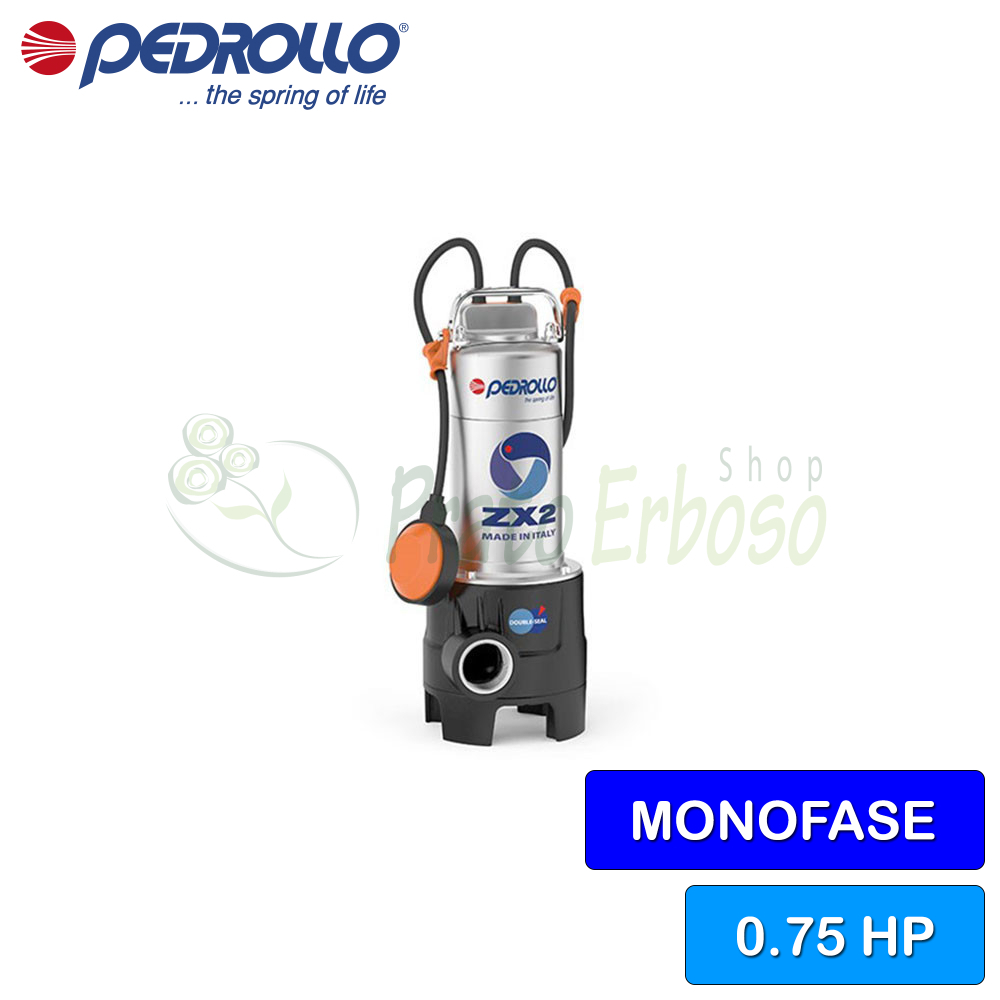

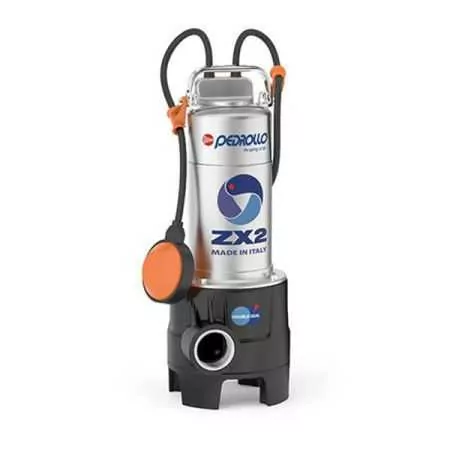

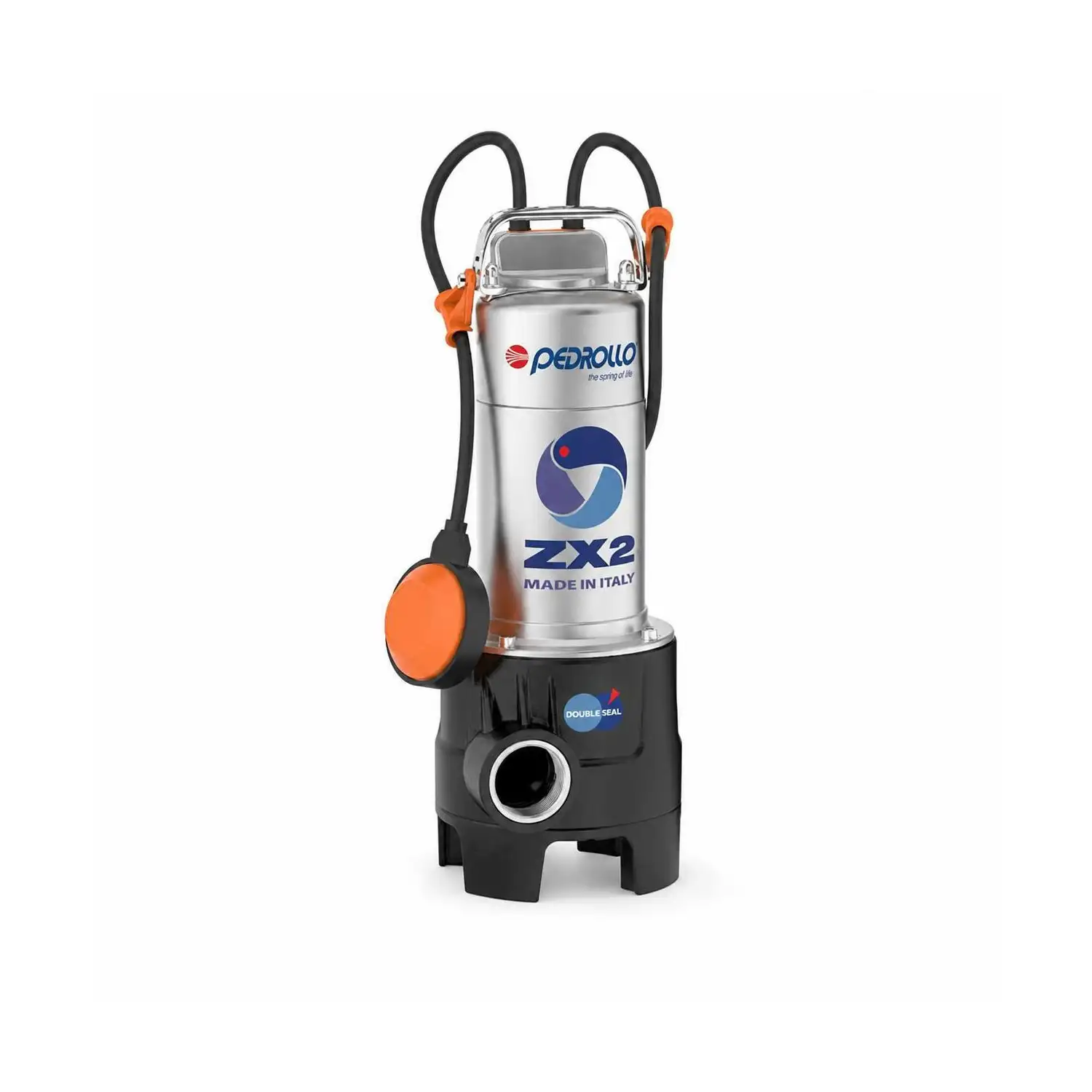

ZXm 2/30 (5m) - 0.75 HP VORTEX submersible electric pump for dirty water
Flow rate up to 320 l/min (19.2 m³/h). Head up to 13 m. 0.55 kW (0.75 HP) motor. 5-meter cable with Schuko plug.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 28 October - Thursday 29 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 28 October - Thursday 29 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 28 October - Thursday 29 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 27 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 28 October - Thursday 29 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 28 October - Thursday 29 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 28 October - Thursday 29 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 27 October
-
Telephone support for information before purchasing. -
Reinforced packaging to reduce transport damage. -
After-sales assistance for product installation. -
We supply all spare parts on this product.
The ZXm 2/30 submersible electric pump from the ZXm 2 series by Pedrollo guarantees great performance, quality and durability.
Recommended for draining dirty water containing solids up to 30 millimetres in diameter.
Suitable for domestic and civil installations for the evacuation of waste water.
The ZXm 2/30 is equipped with a vortex impeller which, thanks to its particular geometry, guarantees safe operation against clogging.
Pedrollo created the product with materials such as technopolymer and AISI 304 and 431 stainless steel for a solid and robust result.
- Jobs
- slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4
- Capacitor
- 20 µF 450 VL
- Pump body
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 320
- Min. head (m.)
- 2
- Max. head (m.)
- 13
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 5
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/2
- Height (cm)
- 41.2
- Width (cm)
- 17.1
- Weight (Kg)
- 10.8
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4
- Capacitor
- 20 µF 450 VL
Pump components and construction
- Pump body
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 320
- Min. head (m.)
- 2
- Max. head (m.)
- 13
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 5
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 41.2
- Width (cm)
- 17.1
- Weight (Kg)
- 10.8
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
